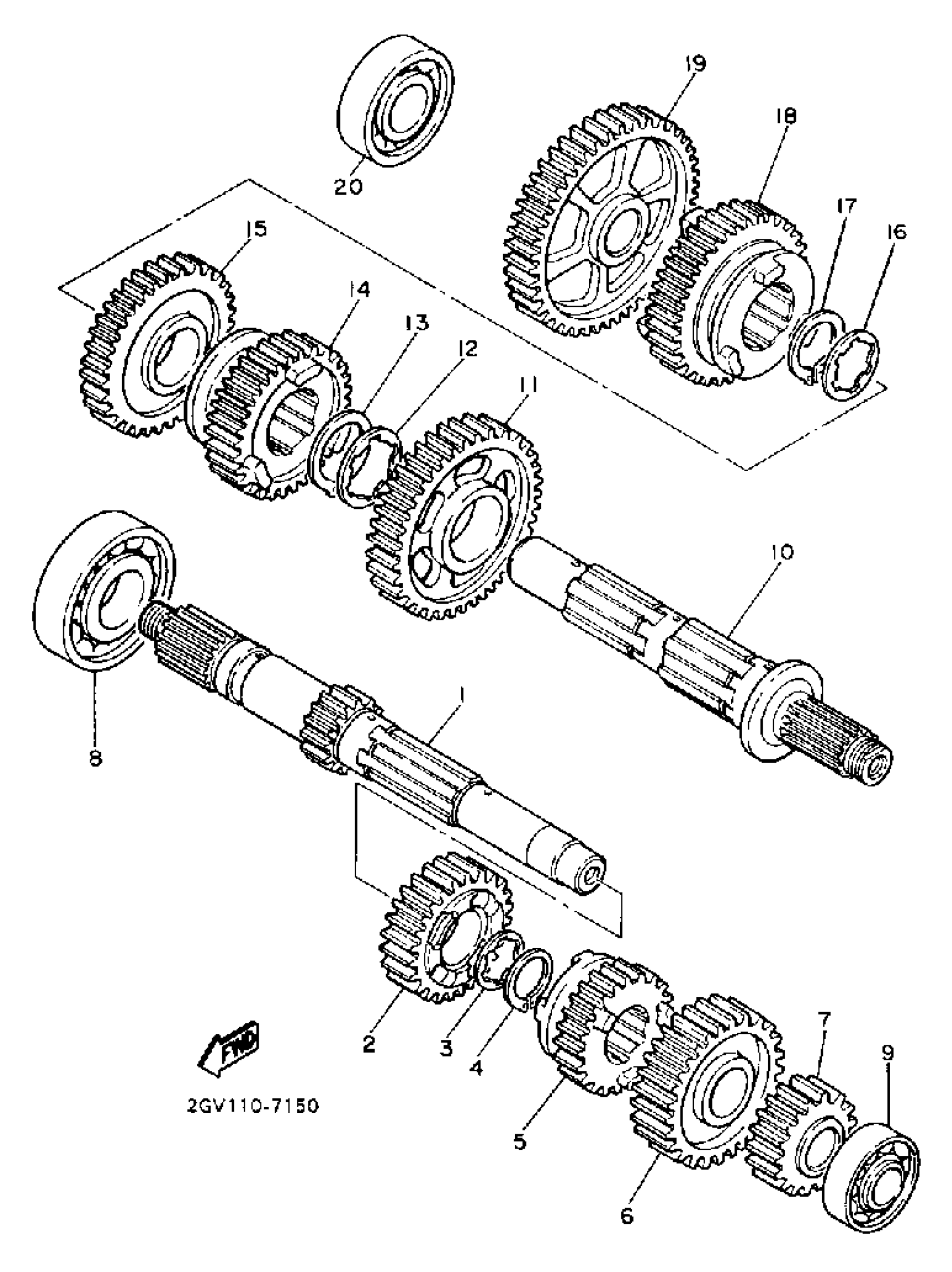

Yamaha XV535U (VIRAGO 535) 1988 TRANSMISSION Diagram

#

Description
Price

1

AXLE,MAIN

99999-03117-00

Unavailable

2

GEAR, 4TH PINION

22U-17141-00-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

22U-17131-00-00

Unavailable

6

GEAR, 5TH PINION

4VR-17151-01-00

Unavailable

7

GEAR, 2ND PINION (20T)

4KU-17121-00-00

Unavailable

8

BEARING (3Y1)

93306-30525-00

$63.99

9

BEARING (5Y1)

93306-00426-00

$42.99

10

DRIVE AXLE ASSY

22U-17402-00-00

$83.99

11

GEAR, 2ND WHEEL (38T)

4KU-17221-00-00

$89.99

12

WASHER (3J3)

90209-27192-00

$8.49

13

CIRCLIP (3J3)

93440-30077-00

$10.49

14

GEAR, 5TH WHEEL

4VR-17251-01-00

Unavailable

15

GEAR, 3RD WHEEL (35T)

4KU-17231-00-00

Unavailable

16

WASHER (3J3)

90209-22191-00

$7.49

17

CIRCLIP (4L0)

93440-25084-00

$5.60

18

GEAR, 4TH WHEEL

22U-17241-00-00

Unavailable

19

GEAR, 1ST WHEEL

22U-17211-00-00

Unavailable

20

BEARING (17L)

93306-00427-00

Unavailable
