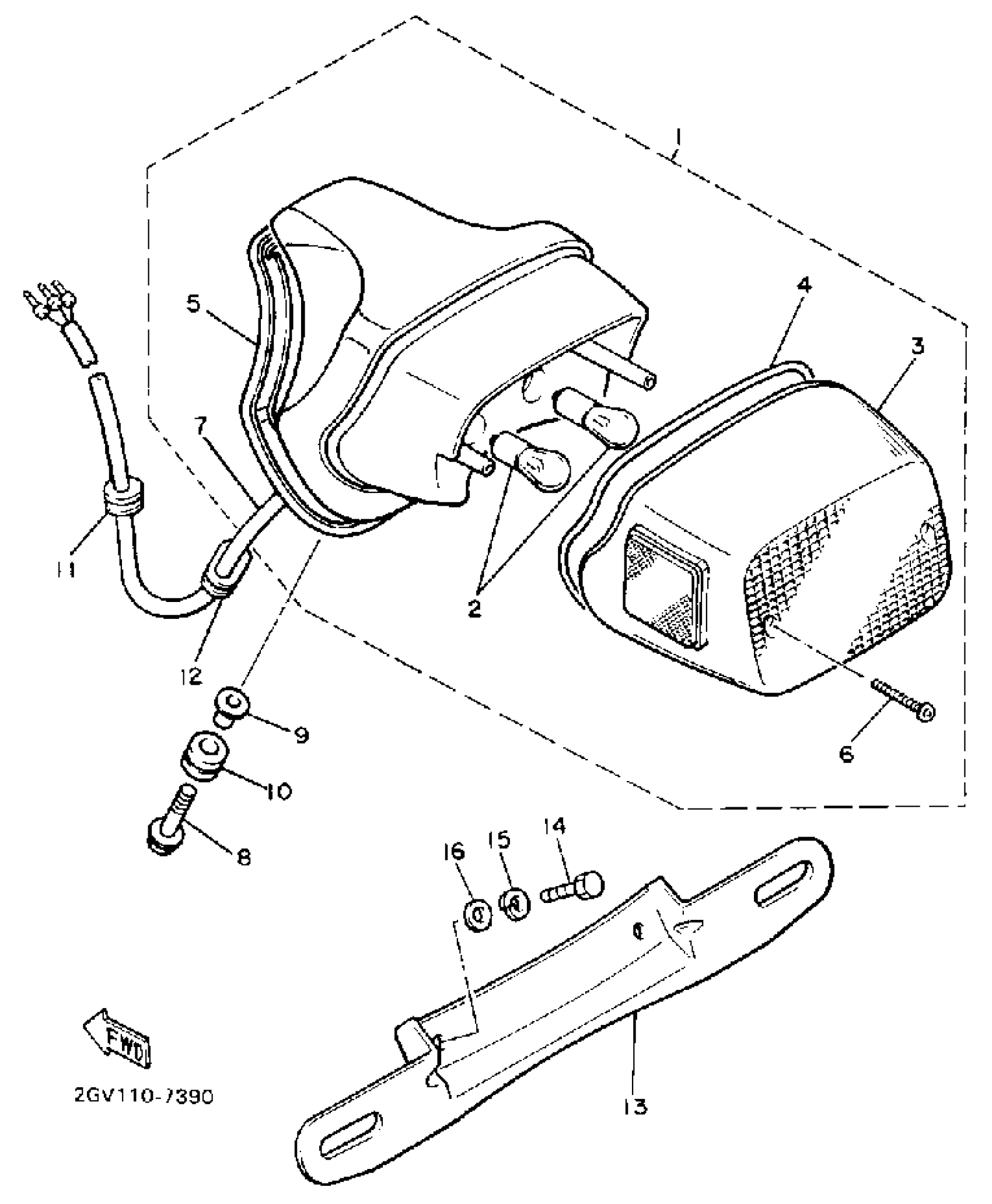

Yamaha XV535U (VIRAGO 535) 1988 TAILLIGHT Diagram

TAILLIGHT ASSEMBLY

2GV-84700-A0-00

Unavailable

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

LENS, TAILLIGHT

42X-84721-61-00

Unavailable

SEAL

1VJ-14462-00-00

$18.49

GASKET, TAILLIGHT

1RM-84704-00-00

$46.99

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

CORD,TAILLIGHT

461-84517-00-00

Unavailable

BOLT, WITH WASHER(2WG)

90119-06172-00

$10.49

COLLAR (J10)

90387-06026-00

$8.49

GROMET (3X3)

90480-14229-00

$8.49

GROMMET(2UJ)

90480-16501-00

$5.60

GROMMET (438)

90480-15061-00

$8.49

BRACKET, LICENSE

1RM-84751-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable
