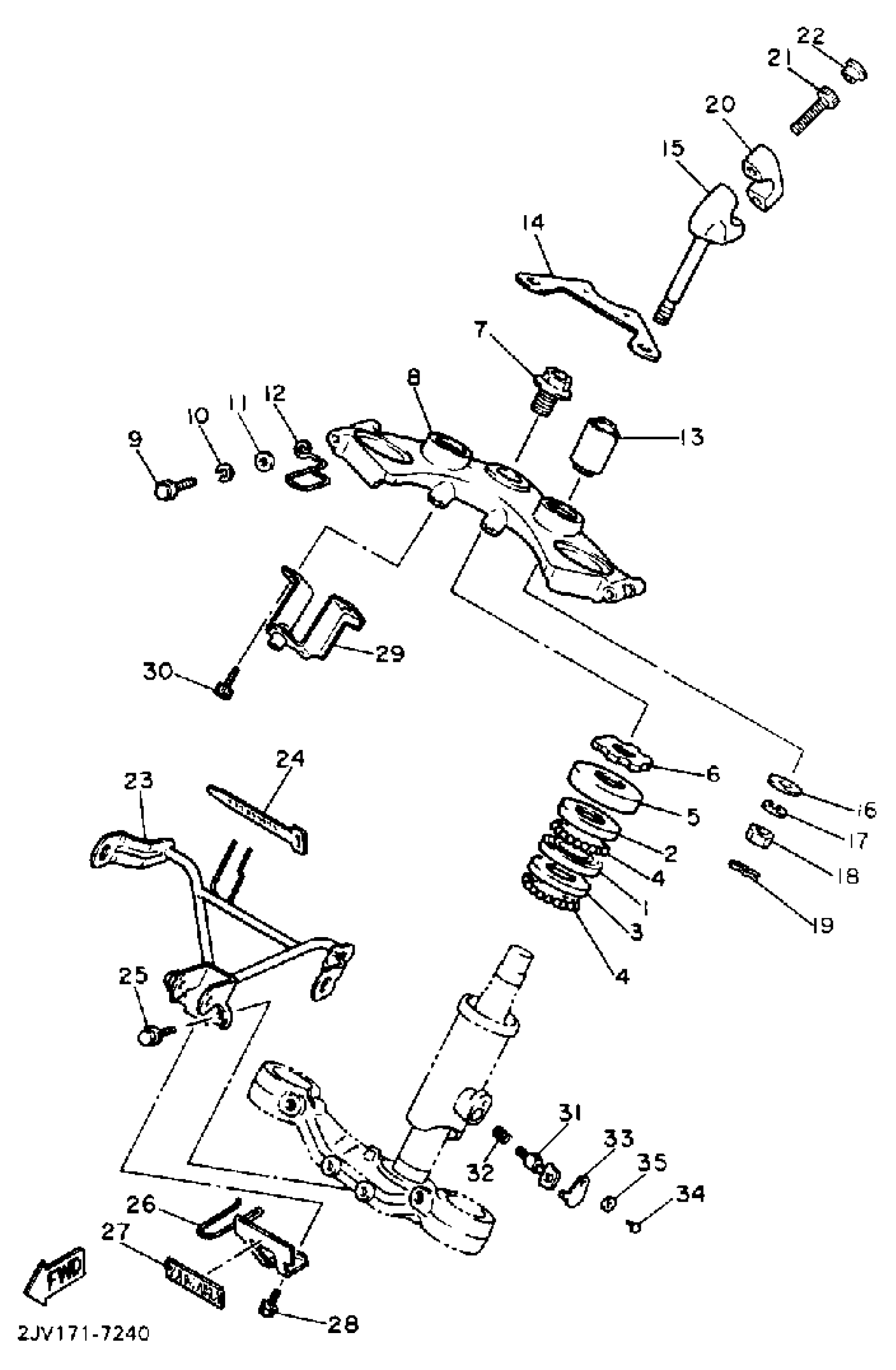

Yamaha XV535U (VIRAGO 535) 1988 STEERING Diagram
#
Description
Price
3
RACE,BALL 2
4FP-F3412-10-00
Unavailable
8
CROWN, HANDLE
2GV-W2341-00-38
Unavailable
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
HOLDER, CABLE
2GV-23317-00-00
Unavailable
13
HOLDER, DAMPER
5A8-23434-01-00
Unavailable
14
STAY 2
2GV-2317F-00-00
Unavailable
15
HOLDER, HANDLE LOWER
42X-23442-01-38
Unavailable
16
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
17
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
18
NUT (682)
95380-10700-00
Unavailable
19
CLIP 136253750000
90468-12006-00
Unavailable
20
HOLDER, HANDLE UPPER
4H7-23441-01-38
Unavailable
21
BOLT,SOCKET
91314-08030-00
Unavailable
22
CAP, BOLT
5K5-23469-00-00
Unavailable
23
STAY,HEADLIGHT
99999-03056-00
Unavailable
24
BAND, SWITCH CORD
437-83936-11-00
Unavailable
25
BOLT, FLANGE(3DM)
95024-06020-00
Unavailable
26
STAY 3
2GV-2317M-00-00
Unavailable
27
EMBLEM
35R-28328-00-00
Unavailable
28
BOLT, FLANGE(3BM)
95024-06008-00
Unavailable
29
STAY
2GV-2317E-00-00
Unavailable
30
BOLT,SOCKET
91317-06016-00
Unavailable
31
STEERING LOCK ASSY
2A6-23408-00-00
Unavailable
32
SPRING, CONICAL (1E6)
90502-09024-00
Unavailable
33
CAP, HANDLE LOCK
3DM-23484-00-00
Unavailable
34
RIVET 214234830000
90269-04003-00
Unavailable
35
WASHER, CONICAL SPRING (3J3)
90208-04029-00
Unavailable
