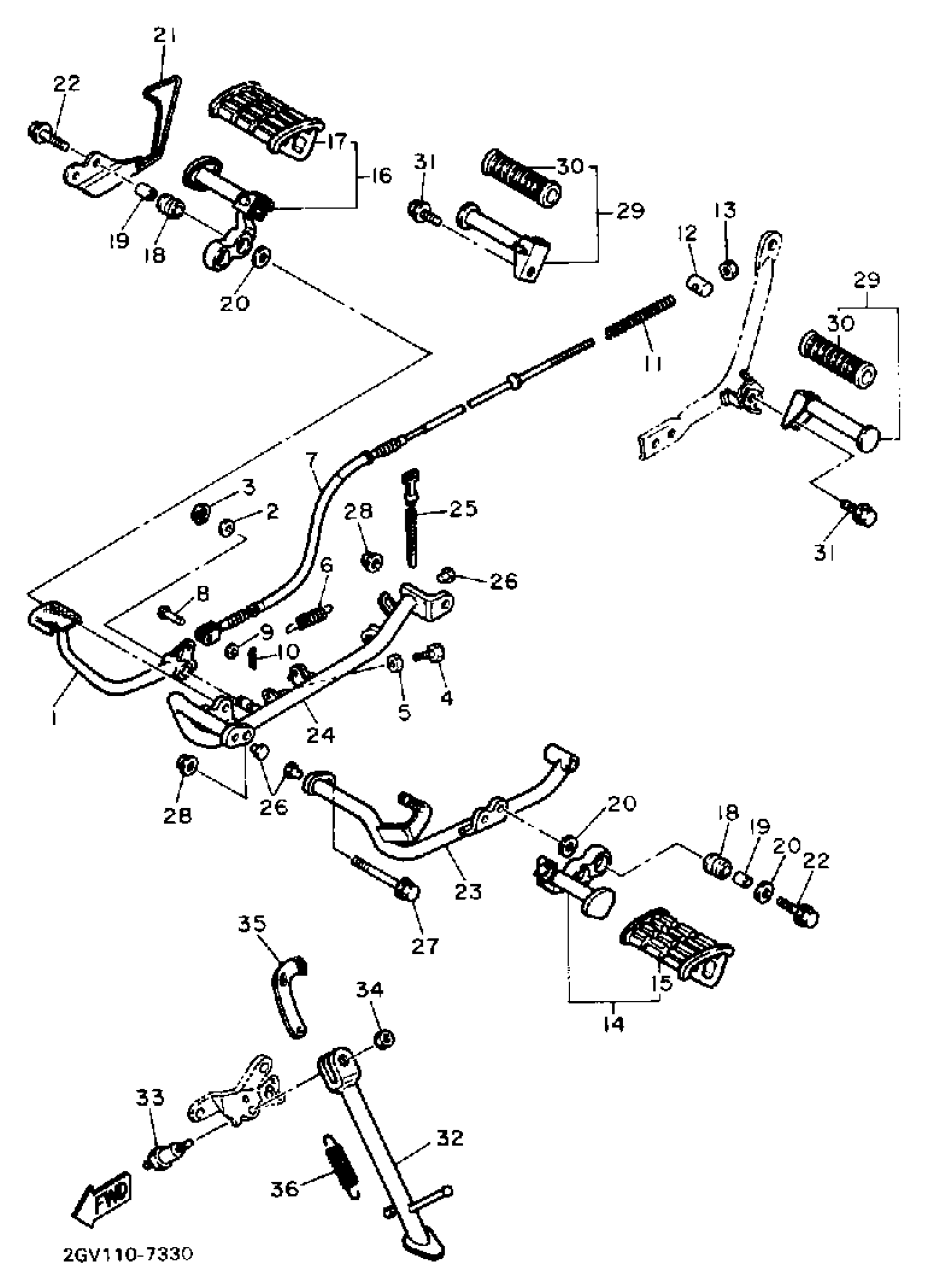

Yamaha XV535U (VIRAGO 535) 1988 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

2GV-27211-00-93

Unavailable

2

WASHER, PLATE(2GV)

90201-152L1-00

$10.49

3

CIRCLIP(1AR)

99009-15400-00

$8.49

4

BOLT, HEXAGON

97017-06025-00

$4.24

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

SPRING, TENSION(1FN)

90506-20380-00

$5.60

7

CABLE, BRAKE

2GV-26351-00-00

$115.99

8

PIN, COTTER (1W2)

91701-06022-00

$2.49

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

PIN, COTTER

91490-20025-00

$1.99

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

PIN 1562723700

90249-12008-00

$8.49

13

NUT (25K)

90179-06411-00

$8.49

14

FRT FOOTREST ASSEMBLY LASSEMBLY (L)

2GV-27410-00-93

Unavailable

15

COVER, FOOTREST

4X7-27413-00-00

$33.99

16

FRT FOOTREST ASSEMBLY RASSEMBLY (R)

2GV-27420-00-93

Unavailable

17

COVER, FOOTREST

4X7-27413-00-00

$33.99

18

DAMPER, FOOTREST

4X7-27414-00-00

Unavailable

19

COLLAR

90387-107A7-00

Unavailable

20

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

21

PROTECTOR

2GV-27491-00-00

Unavailable

22

BOLT(3BM)

90109-100G0-00

Unavailable

23

BAR,FOOTREST 1

2GV-27471-02-00

Unavailable

24

BAR, FOOTREST 2

2GV-27472-02-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

PLUG (341-26329-00)

90338-09012-00

Unavailable

27

BOLT, WASHER BASED(36Y)

90105-10312-00

Unavailable

28

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

29

RR FOOTREST ASSEMBLY 1ASSEMBLY 1

2GV-27430-00-00

Unavailable

30

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

31

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

32

STAND, SIDE

2GV-27311-00-R4

Unavailable

33

BOLT(2GH)

90109-104E6-00

Unavailable

34

NUT (682)

95380-10700-00

Unavailable

35

LINK, SIDE STAND

5H0-27315-00-00

Unavailable

36

SPRING, TENSION (5N8)

90506-29266-00

Unavailable
