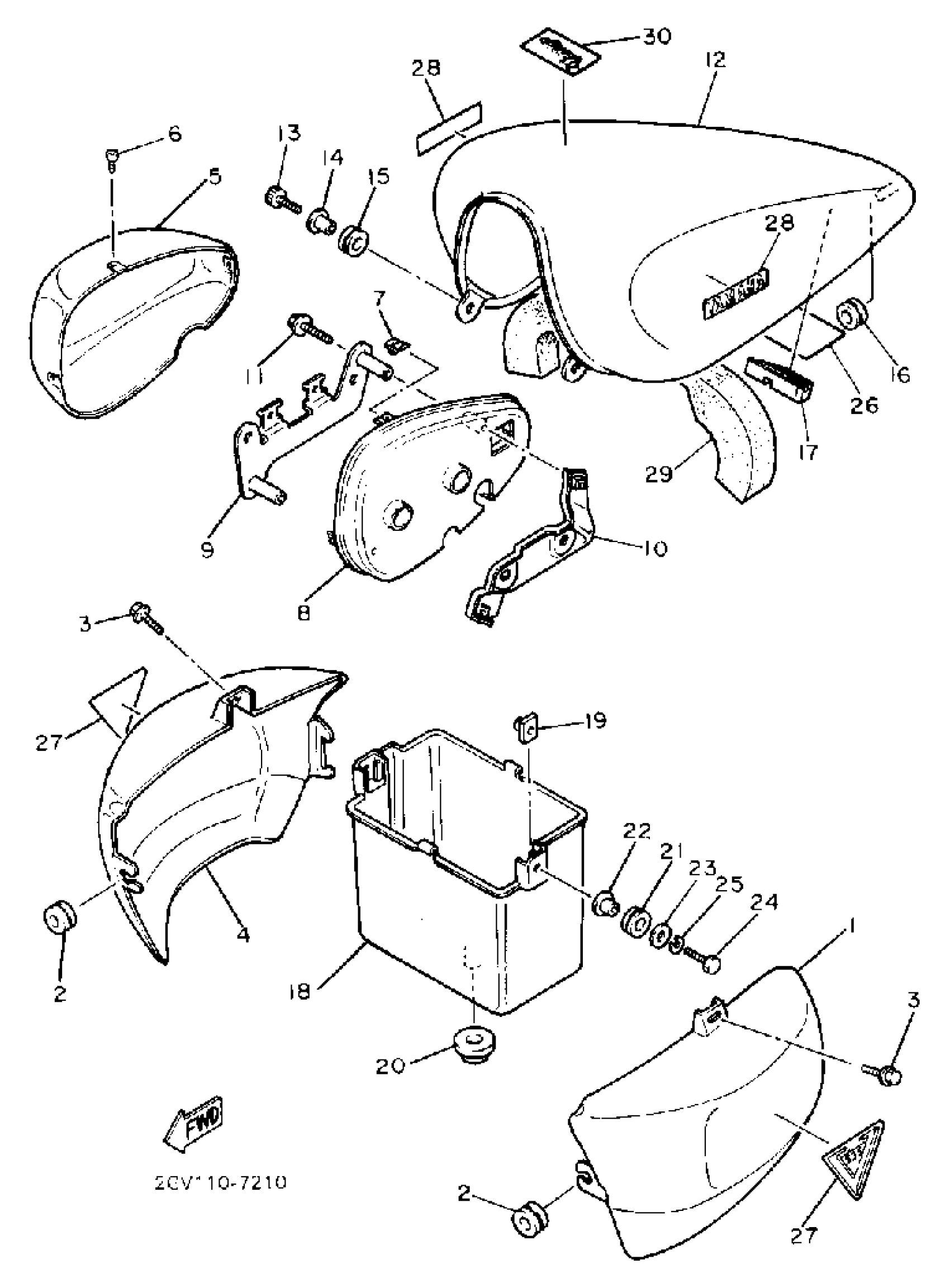

Yamaha XV535U (VIRAGO 535) 1988 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

2GV-21711-00-97

Unavailable

1

COVER, SIDE 1

2GV-21711-00-UY

Unavailable

2

GROMMET

90480-12320-00

$8.49

3

BOLT, WITH WASHER(1JK)

90119-06123-00

$7.49

4

COVER, SIDE 2

2GV-21721-00-97

Unavailable

4

COVER, SIDE 2

2GV-21721-00-UY

Unavailable

5

COVER, SIDE 3

2GV-21731-00-93

Unavailable

6

SCREW, TAPPING(3BM)

97704-40012-00

$1.86

7

NUT, SPRING (26H)

90183-04027-00

$2.39

8

PANEL 1

2GV-2172A-00-00

Unavailable

9

PANEL 2

2GV-2172F-00-00

Unavailable

10

STAY, SIDE COVER 2

2GV-2174E-00-00

Unavailable

11

BOLT, FLANGE

95817-06040-00

$5.60

12

TOP COVER ASSEMBLY

2GV-Y217F-00-97

Unavailable

12

TOP COVER ASSEMBLY

2GV-Y217F-00-UY

Unavailable

13

SCREW(1XL)

90149-06264-00

Unavailable

14

COLLAR 8121444900

90387-06023-00

Unavailable

15

GROMMET (2T4)

90480-12237-00

Unavailable

16

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

17

DAMPER, LOCATING 4

(2GV-2177N-00-00)

Unavailable

18

BOX, TOOL

2GV-21171-00-00

Unavailable

19

PLATE

31A-14477-10-00

Unavailable

20

GROMMET (31A)

90480-22362-00

Unavailable

21

GROMET (3X3)

90480-14229-00

Unavailable

22

COLLAR 437216330000

90387-07391-00

Unavailable

23

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

24

BOLT, HEXAGON

97017-06025-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable

26

PLATE, SPEC

2GV-21683-80-00

Unavailable

27

EMBLEM 1 (EMPRESS MAROON)

2GV-21781-20-00

Unavailable

27

EMBLEM 1 (ATLANTIC BLUE)

2GV-21781-30-00

Unavailable

28

EMBLEM, YAMAHA

99245-00100-00

Unavailable

29

DAMPER

2GV-21747-00-00

Unavailable

30

EMBLEM 2

2GV-24162-01-00

Unavailable
