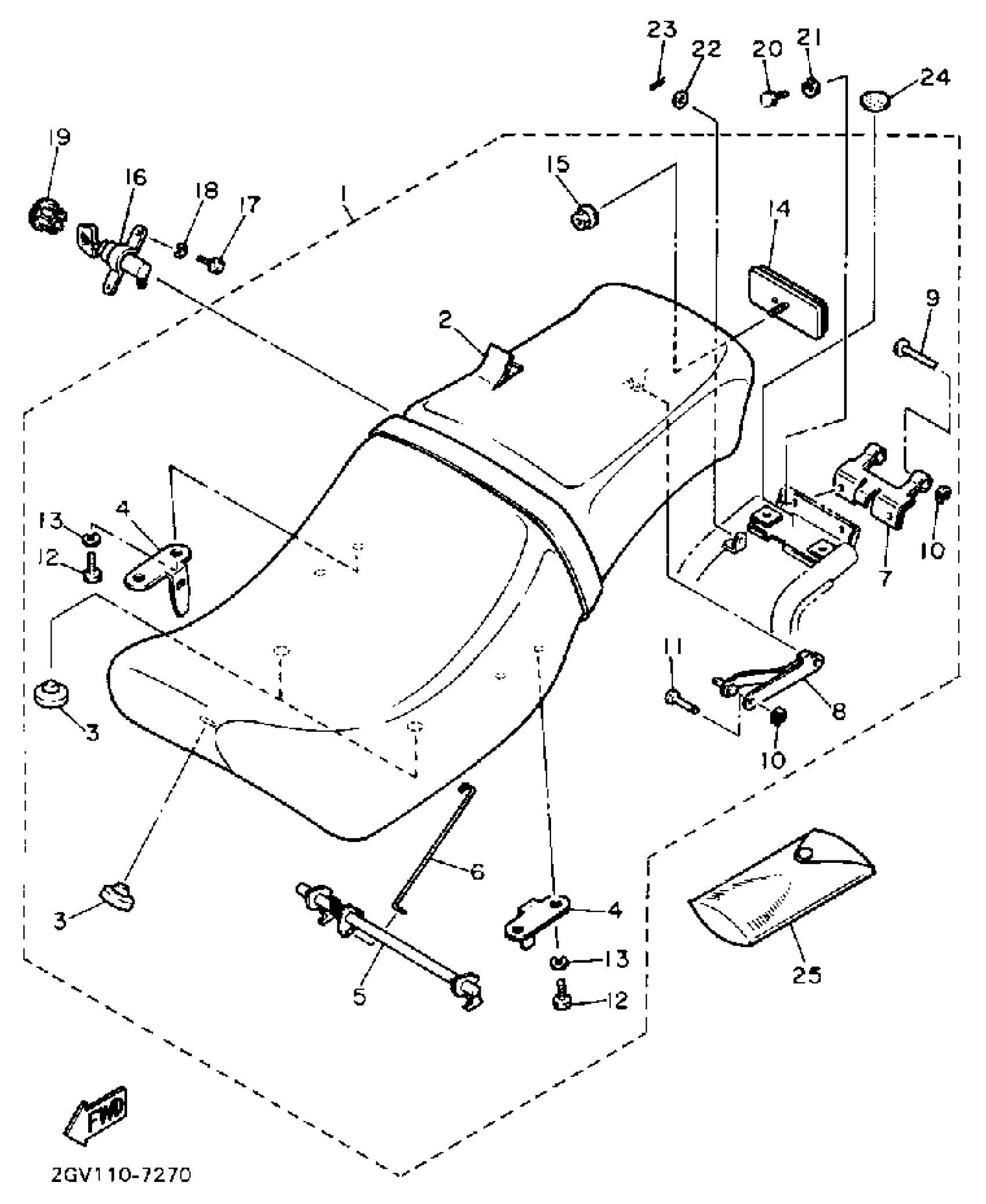

Yamaha XV535U (VIRAGO 535) 1988 SEAT Diagram
#
Description
Price
1
DOUBLE SEAT ASSEMBLY
2GV-24730-00-00
Unavailable
2
. COVER, DOUBLE SEAT
2GV-24731-00-00
Unavailable
3
STOPPER, MAIN STAND
102-27114-A0-00
Unavailable
4
. BRACKET, SEAT
2GV-24718-00-00
Unavailable
5
. LEVER, SEAT
2GV-24776-00-00
Unavailable
6
. ROD, CONNECTING
2GV-2478F-00-00
Unavailable
7
HINGE ASS''Y
(2GV-24772-00-00)
Unavailable
8
. STOPPER
2GV-24768-00-00
Unavailable
9
. PIN, CLEVIS (2GV)
90249-05198-00
Unavailable
10
CIRCLIP (EU0)
99080-04600-00
Unavailable
11
. PIN, CLEVIS (2GV)
90249-05197-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
14
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
16
SEAT LOCK ASSY
47X-24705-00-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
COVER
51Y-24796-00-00
Unavailable
20
BOLT(8CP)
97017-06014-00
Unavailable
21
WASHER, SPRING
92907-06100-00
Unavailable
22
WASHER, PLAIN (646)
92990-05600-00
Unavailable
23
CLIP (156-83525-00)
90468-10050-00
Unavailable
24
DAMPER
4A0-85547-00-00
Unavailable
25
TOOL KIT
2GV-28100-00-00
Unavailable
