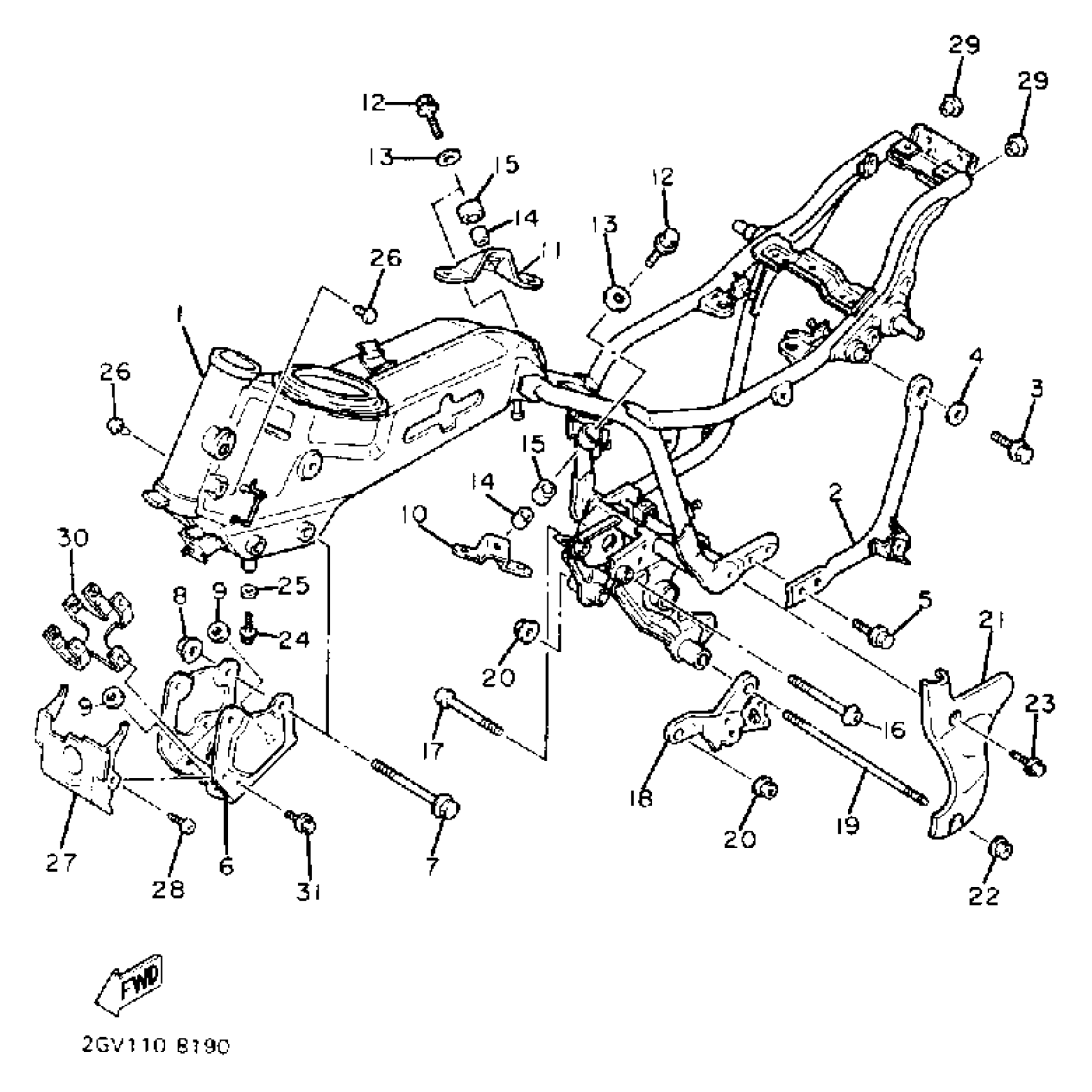

Yamaha XV535U (VIRAGO 535) 1988 FRAME Diagram
#
Description
Price
1
FRAME
(2GV-21110-00-33)
Unavailable
2
DOWN TUBE COMP.SUB COMP. 1
2GV-21105-00-33
Unavailable
3
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
6
STAY, ENGINE 3
2GV-21317-00-00
Unavailable
8
NUT
90179-10321-00
Unavailable
10
STAY, ENGINE 2
22U-21315-00-00
Unavailable
11
STAY, ENGINE 3
22U-21316-00-00
Unavailable
12
BOLT (4W3)
90105-10186-00
Unavailable
14
COLLAR (5E3)
90387-100E2-00
Unavailable
15
DAMPER, RUBBER 1
4X7-21485-00-00
Unavailable
16
SCREW
90149-10238-00
Unavailable
17
SCREW
90149-10239-00
Unavailable
18
BRACKET, SIDE STAND
2GV-21458-00-00
Unavailable
19
BOLT, STUD
90116-12495-00
Unavailable
20
NUT(3EF)
90179-12657-00
Unavailable
21
COVER, SIDE 5
2GV-2171E-00-00
Unavailable
22
NUT, CAP
95307-12800-00
Unavailable
23
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
24
BOLT, WASHER BASED HEXAGON 1L9
90105-06069-00
Unavailable
25
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
26
PLUG 288833190000
90338-07043-00
Unavailable
27
COVER 2
2GV-2139R-00-00
Unavailable
28
SCREW, PAN TAP.2
97707-60514-00
Unavailable
29
PLUG
3YJ-24481-00-00
Unavailable
30
BRACKET, COIL
2GV-21359-00-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
