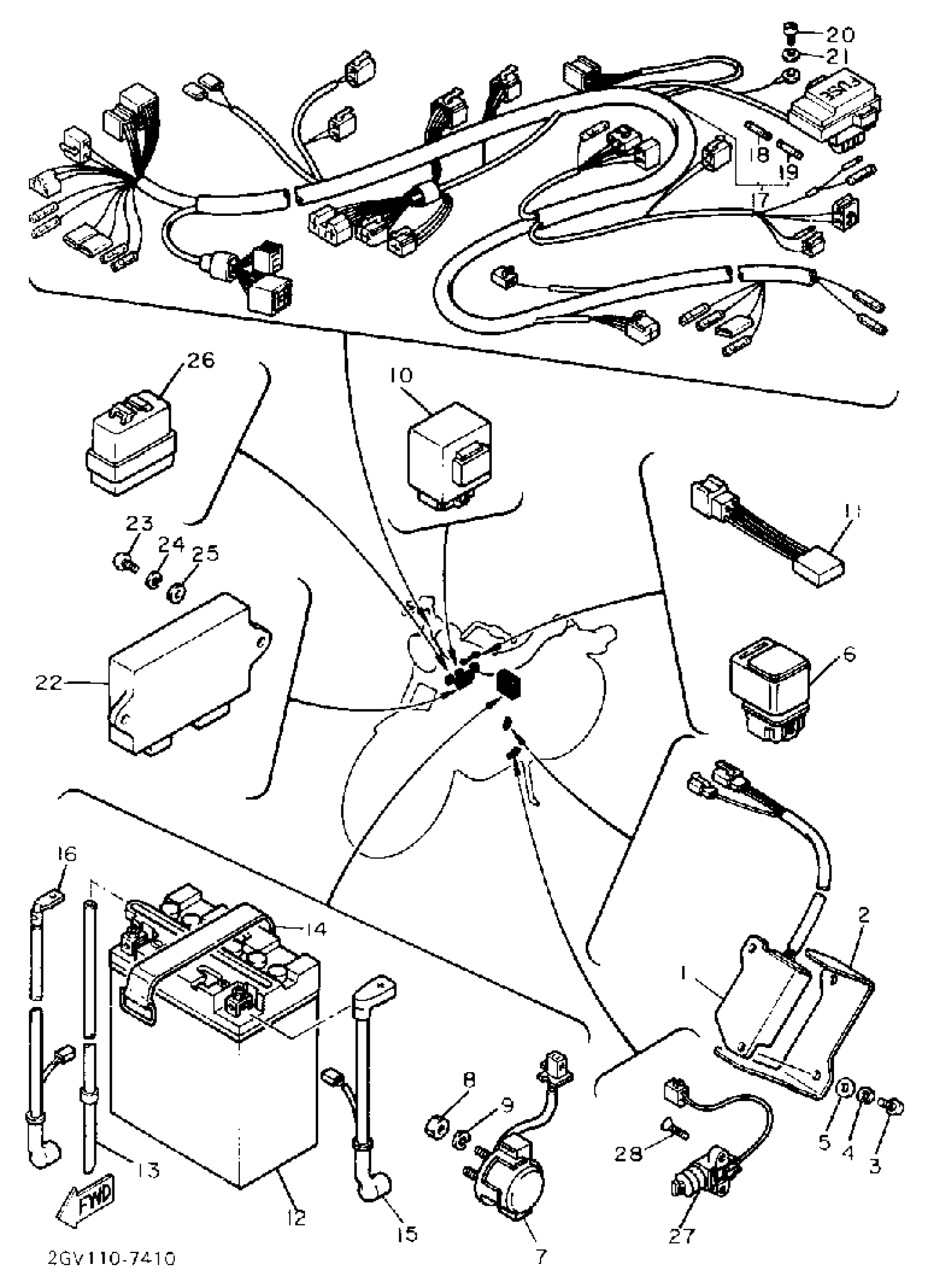

Yamaha XV535U (VIRAGO 535) 1988 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

42X-81960-A1-00

$336.99

2

PLATE, RECTIFR FTNG

2GV-81975-00-00

Unavailable

3

SCREW PAN HEAD

98580-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

RELAY ASSY

4U8-81950-03-00

Unavailable

7

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

8

NUT(650)

95380-06700-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

CONTROL UNIT ASSY

42H-85740-00-00

$233.99

11

RECTIFIER 2

4U8-81980-M0-00

Unavailable

12

YB12ALA2 YUASA BATTERY

YB1-2ALA2-00-00

Unavailable

13

HOSE

90445-08719-00

Unavailable

14

BAND,BATTERY

7H3-82131-00-00

$17.49

15

WIRE, PLUS LEAD

2GV-82115-00-00

Unavailable

16

WIRE, MINUS LEAD

2GV-82116-00-00

Unavailable

17

WIRE HARNESS ASSEMBLY

2GV-82590-00-00

Unavailable

18

FUSE (20A)

2GV-82151-00-00

Unavailable

19

FUSE (10A)

42X-82151-00-00

Unavailable

20

SCREW PAN HEAD

98580-06010-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

$2.80

22

IGNITOR UNIT ASSEMBLY 1

2GV-82305-20-00

Unavailable

23

SCREW PAN HEAD

98580-06020-00

$8.49

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

$2.80

26

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

27

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

28

SCREW, FLAT

98707-05014-00

Unavailable
