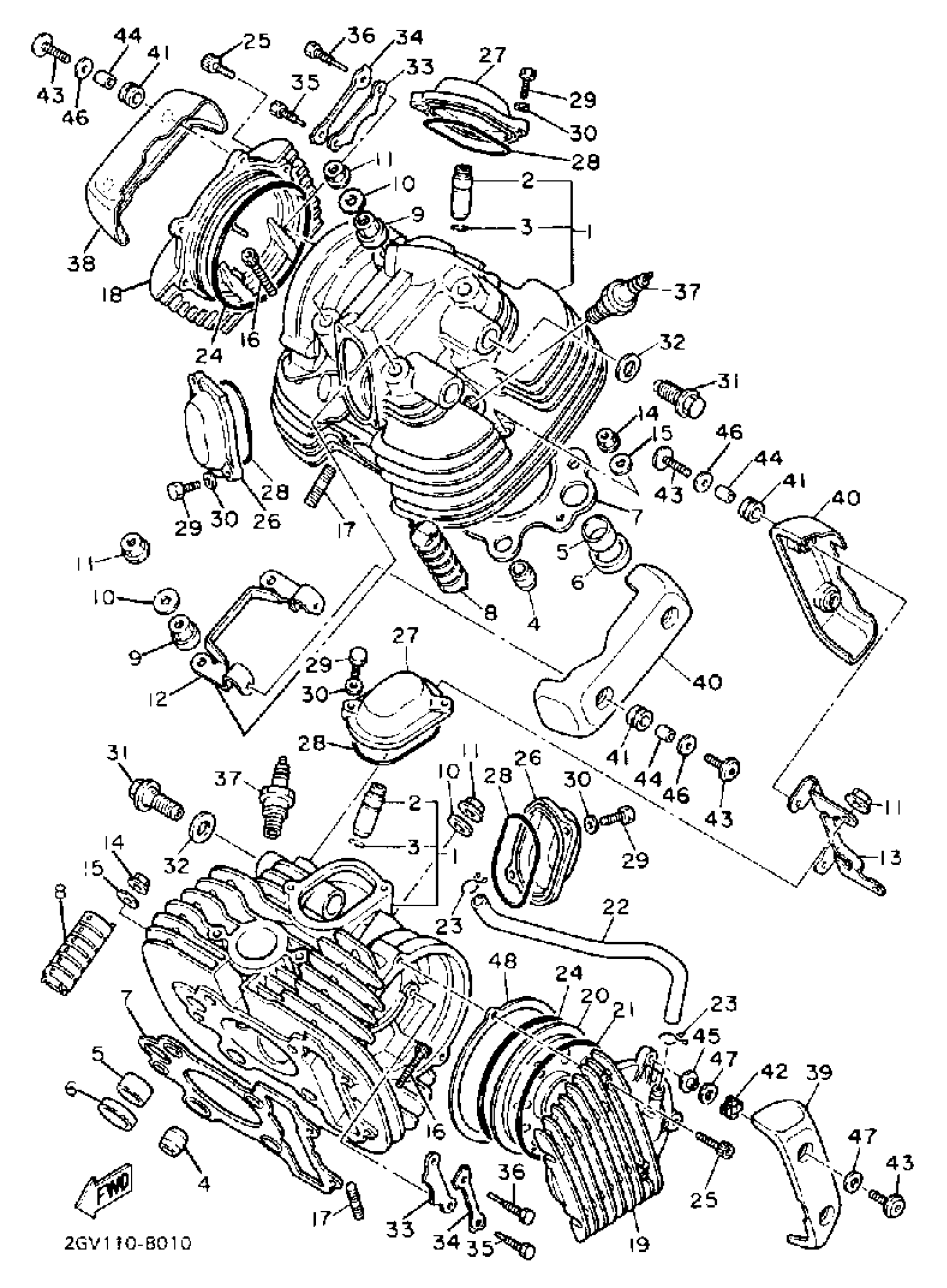

Yamaha XV535U (VIRAGO 535) 1988 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2GV-11102-01-00

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

PIN, DOWEL(3BM)

99530-17016-00

Unavailable

5

COLLAR

90387-226G7-00

Unavailable

6

GASKET (22U)

90430-24184-00

Unavailable

7

GASKET, CYLINDER HEAD 1

2GV-11181-00-00

Unavailable

8

ABSORBER 3

2GV-11127-00-00

Unavailable

9

NUT (22U)

90179-10395-00

$9.49

10

WASHER PLATE 256111740000

90201-10131-00

$9.49

11

NUT (2Y5)

90179-10279-00

$8.49

12

BRACKET, CYLINDER HEAD COVER 2

2GV-11142-00-00

Unavailable

13

BRACKET, CYLINDER HEAD COVER

2GV-11152-00-00

Unavailable

14

NUT, FLANGE

95704-08500-00

$8.49

15

WASHER, PLATE (33N)

90201-094G1-00

$9.49

16

BOLT,SOCKET

91314-08030-00

Unavailable

17

BOLT, STUD 3

95617-08630-00

Unavailable

18

COVER, CYLINDER HEAD SIDE 1

2GV-11185-00-00

Unavailable

19

COVER, CYLINDER HEAD SIDE 4

2GV-1111H-00-00

Unavailable

20

PLATE, BREATHER

22U-11165-00-00

Unavailable

21

O-RING (22U)

93210-89568-00

Unavailable

22

PIPE, BREATHER 1

2GV-11166-00-00

Unavailable

23

CLIP (371)

90467-14015-00

Unavailable

24

O-RING (22U)

93211-00612-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

26

COVER, CYLINDER HEAD SIDE 2

22U-11186-01-00

Unavailable

27

COVER, CYLINDER HEAD SIDE 3

22U-11187-01-00

Unavailable

28

O-RING (4X7)

93210-62446-00

Unavailable

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

BOLT, UNION(4TR)

90401-16166-00

Unavailable

32

GASKET (4X7)

90430-17168-00

Unavailable

33

PLATE

22U-1111F-01-00

Unavailable

34

WASHER, LOCK

90215-08229-00

Unavailable

35

BOLT (26M)

90109-08782-00

Unavailable

36

BOLT (26M)

90109-08781-00

Unavailable

37

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

38

COVER, CYLINDER.HEAD 2HEAD SIDE 2

2GV-11186-00-00

Unavailable

39

COVER ASSEMBLY 1

2GV-1110M-00-00

Unavailable

40

COVER, CYLINDER.HEAD 3HEAD SIDE 3

2GV-11187-00-00

Unavailable

41

GROMMET

90480-18411-00

Unavailable

42

GROMMET

90480-19471-00

Unavailable

43

BOLT, HEX SKT HEADSOCKET HEAD

90110-06147-00

Unavailable

44

COLLAR (8A7)

90387-06518-00

Unavailable

45

COLLAR

90387-072W2-00

Unavailable

46

WASHER, PLATE (J10)

90201-06697-00

Unavailable

47

GASKET

3BT-11195-00-00

Unavailable

48

GASKET, CYLINDER HEAD SIDE

3BT-11196-01-00

Unavailable
