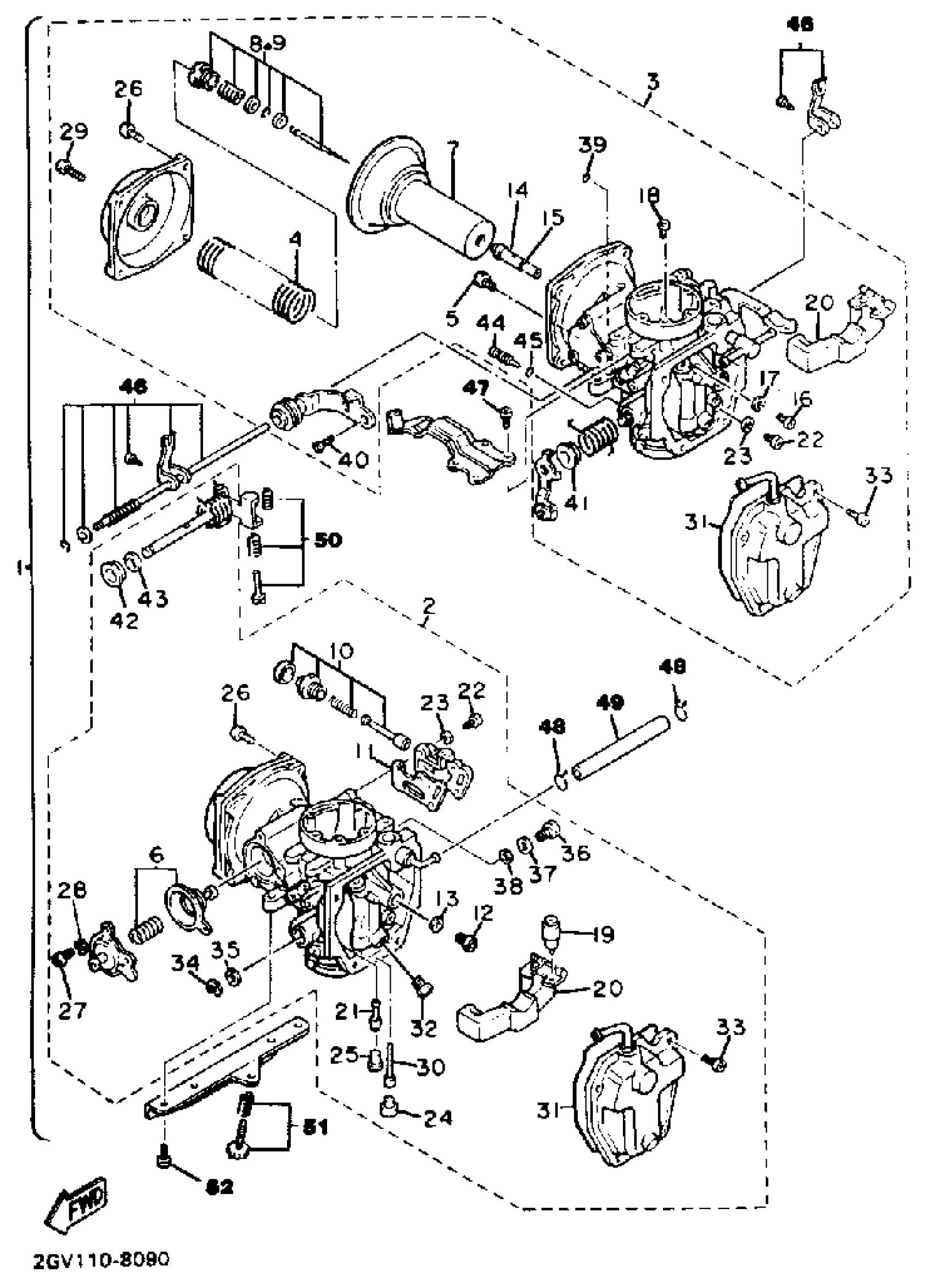

Yamaha XV535U (VIRAGO 535) 1988 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[2G-V1490-00-00

Unavailable

2

CARBURETOR ASY 1

2JU-14901-02-00

Unavailable

3

CARBURETOR ASY 2

2JU-14902-02-00

Unavailable

4

SPRING, DIAPHRAGM

1FK-14933-00-00

$36.99

5

JET, MAIN (#160)

3G2-14231-32-00

Unavailable

6

DIAPHRAGM SET 5

22U-1490H-00-00

Unavailable

7

DIAPHRAGM ASSY

2GV-14940-00-00

Unavailable

8

NEEDLE SET

3BM-1490J-10-00

$29.99

9

NEEDLE SET

3BM-1490J-00-00

$29.99

10

STARTER SET

11H-1410A-00-00

$105.99

11

GASKET

3JB-14536-00-00

Unavailable

12

SCREW

22U-14565-00-00

Unavailable

13

WASHER,MAIN JET

137-14153-00-00

$7.99

14

NOZZLE, MAIN

2JU-14141-90-00

Unavailable

15

O-RING

22U-14147-00-00

$7.99

16

SCREW, PAN HEAD

98507-04018-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

18

JET, MAIN (# 60)

3G2-14231-12-00

Unavailable

19

NEEDLE VALVE ASSY

22U-14190-15-00

Unavailable

20

.. FLOAT

22U-14985-00-00

Unavailable

21

JET, PILOT (#32.5)

4G0-14142-32-A0

Unavailable

22

SCREW, PAN HEAD

98511-04012-00

Unavailable

23

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

24

CAP

22U-14968-00-00

Unavailable

25

CAP

22V-14968-00-00

Unavailable

26

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

27

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

28

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

29

SCREW, PAN HEAD(1FK)

90157-05050-00

Unavailable

30

.. PIPE, MAIN BLEED

22U-1414G-00-00

Unavailable

31

O-RING

22V-14147-00-00

Unavailable

32

JET,MAIN #137.5

3G2-1423A-78-00

Unavailable

33

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

34

CLIP

812-14137-00-00

Unavailable

35

WASHER (3H1)

1A8-14953-00-00

Unavailable

36

.. PLUG, SCREW

341-14991-00-00

Unavailable

37

.. WASHER

26H-14952-00-00

Unavailable

38

WASHER

(22U-14952-00-00)

Unavailable

39

O-RING (248)

93210-03119-00

Unavailable

40

SCREW,FLAT HEAD

98780-06010-00

Unavailable

41

RING

(4U8-14918-00-00)

Unavailable

42

.. WASHER

341-14954-00-00

Unavailable

43

.. RING

4U8-14194-00-00

Unavailable

44

SCREW

2L1-14191-00-00

Unavailable

45

O-RING

214-14147-00-00

Unavailable

46

. STARTER LEVER SET1

2GV-1490L-00-00

Unavailable

47

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

48

CLIP

90467-100A1-00

Unavailable

49

HOSE

31H-14987-00-00

Unavailable

50

STOP SCREW SET

(22U-1490K-00-00)

Unavailable

51

THROTTLE SCREW SET

(22U-14103-00-00)

Unavailable

52

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable
