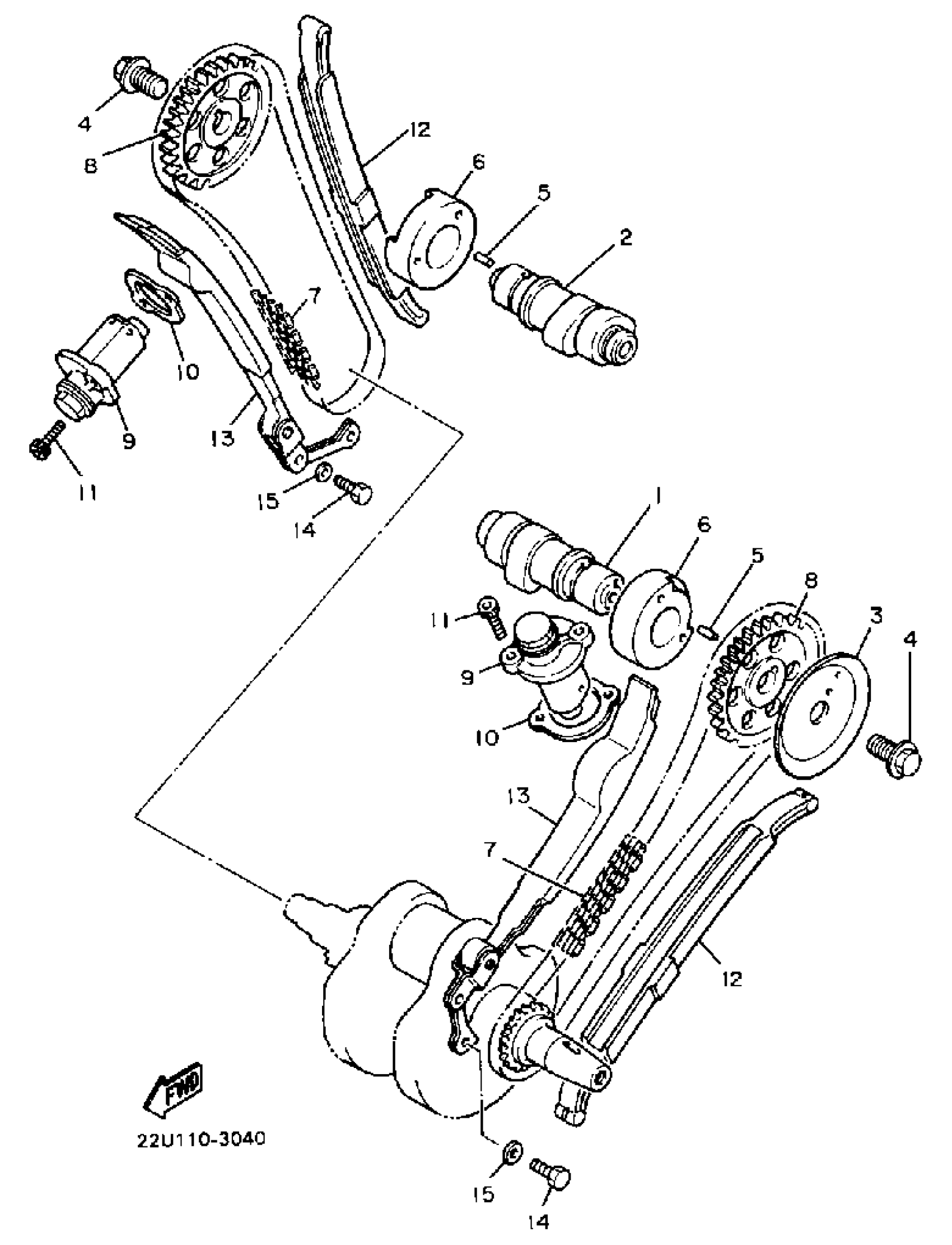

Yamaha XV535U (VIRAGO 535) 1988 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

22U-12171-01-00

Unavailable

2

CAMSHAFT 2

22U-12181-01-00

Unavailable

3

PLATE, BREATHER 2

22U-11145-00-00

$14.49

4

BOLT, FLANGE

90105-10153-00

$5.60

5

PIN, DOWEL (8G8)

93605-10108-00

$8.49

6

BUSH, SOLID

90380-28110-00

Unavailable

7

CHAIN(3JB)

94591-41118-00

$94.99

8

SPROCKET, CAM CHAIN

22U-12176-01-00

$117.99

9

TENSIONER ASSY, CAM CHAIN

11H-12210-02-00

Unavailable

10

GASKET, TENSIONER CASE

3BT-12213-00-00

$7.99

11

BOLT,SOCKET HEAD

91314-06025-00

$8.49

12

GUIDE, STOPPER 1

22U-12231-00-00

Unavailable

13

GUIDE, STOPPER 2

22U-12241-01-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

WASHER, PLAIN (646)

92990-06600-00

$2.80
