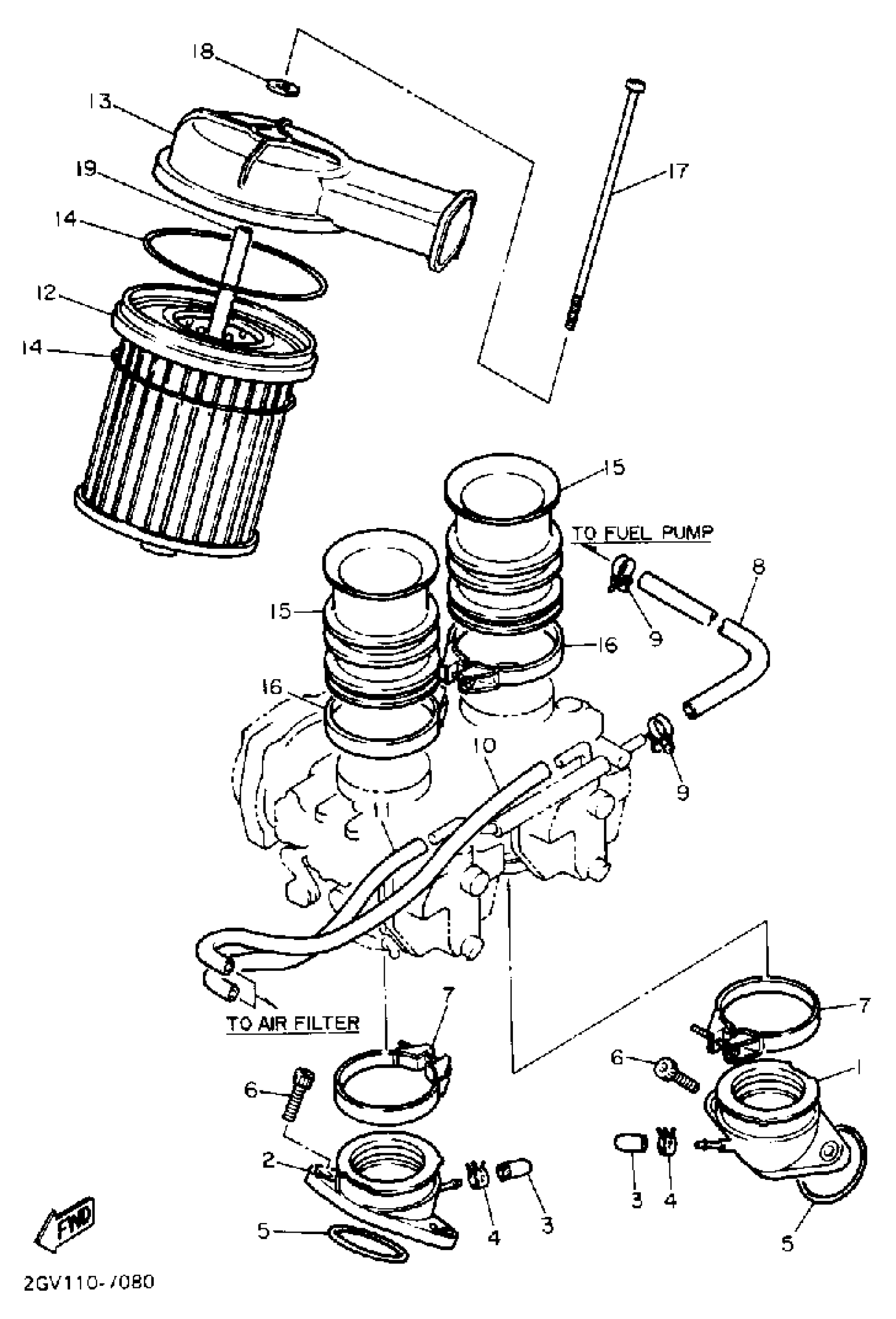

Yamaha XV535U (VIRAGO 535) 1988 AIR FILTER Diagram

JOINT, CARBURETOR 1

2GV-13586-02-00

$94.99

JOINT, CARBURETOR 2

2GV-13596-01-00

Unavailable

PLUG, BLIND

16G-13569-00-00

$7.99

CLIP (3G0)

90467-10039-00

$9.49

O-RING(2TY)

93210-36769-00

$11.49

BOLT,SOCKET

91317-06020-00

Unavailable

CLAMP, HOSE (90460-52210-00)

90460-52264-00

Unavailable

HOSE

90445-112F1-00

Unavailable

HOSE CLAMP ASSY

90450-12002-00

Unavailable

HOSE (L370)

90445-112E1-00

$23.99

HOSE

4BH-14987-00-00

Unavailable

ELEMENT, AIR CLEANER

2GV-14451-00-00

Unavailable

CAP, CLEANER CASE 1

2GV-14412-00-00

Unavailable

SEAL

51Y-14462-00-00

$18.49

FUNNEL, AIR

22U-14469-01-00

$32.99

HOSE CLAMP ASSY

90450-58002-00

Unavailable

SCREW, PAN HEAD(4AS)

98517-06160-00

Unavailable

WASHER, PLATE

90201-06380-00

Unavailable

COLLAR

90387-062T3-00

Unavailable
