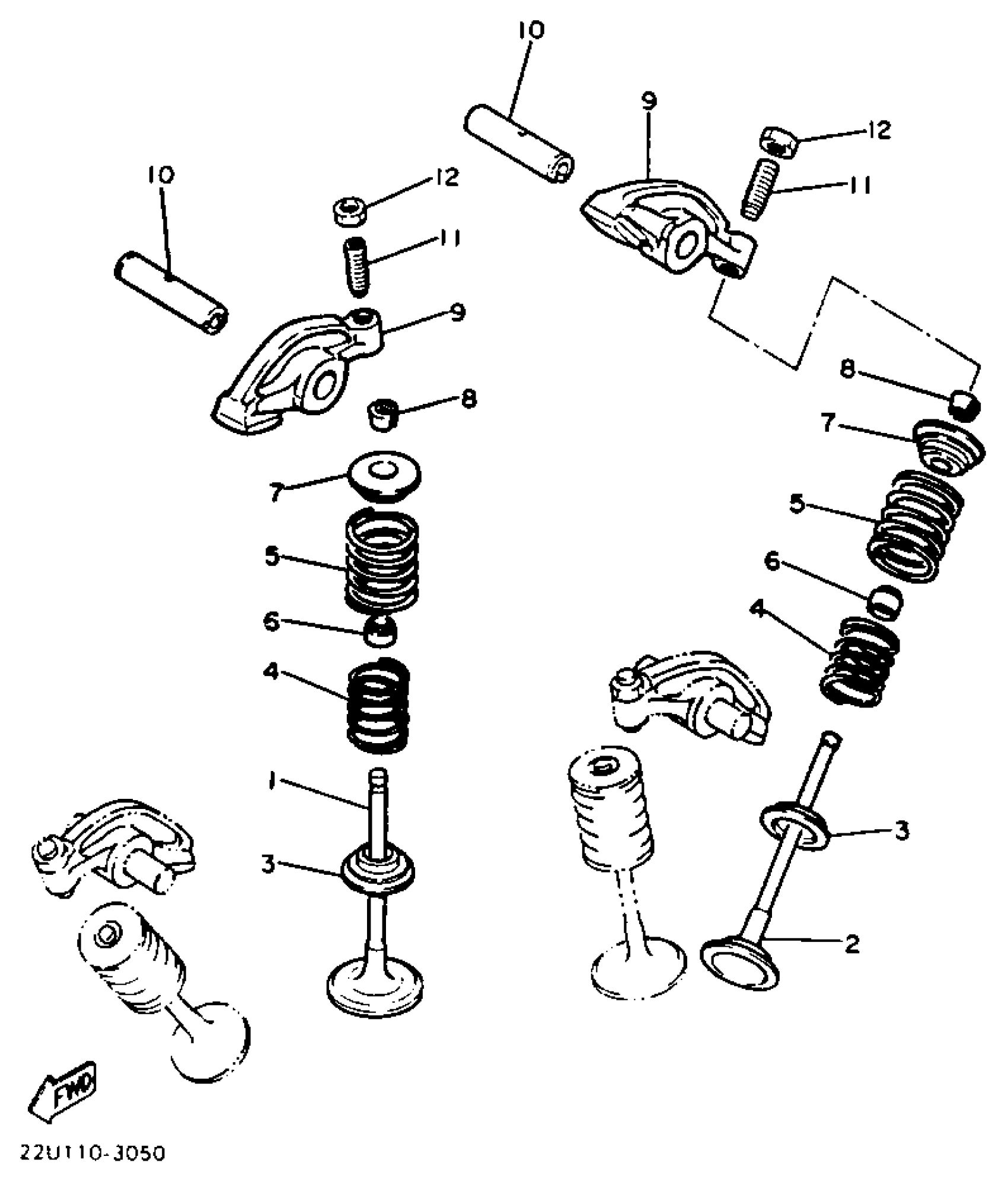

Yamaha XV535TC (VIRAGO 535 CA) 1987 VALVE Diagram

VALVE, INTAKE

22U-12111-00-00

Unavailable

VALVE, EXHAUST

22U-12121-01-00

Unavailable

SEAT, VALVE SPRING

3Y1-12116-00-00

$13.61

SPRING, VALVE INNER

22U-12113-00-00

Unavailable

SPRING, VALVE OUTER

22U-12114-00-00

Unavailable

SEAL, VALVE STEM OIL

1J7-12119-01-00

$17.39

RETAINER, VALVE SPRING

3Y1-12117-01-00

$14.37

LOCK, VALVE SPRING

1J7-12118-00-00

$6.12

ARM, VALVE ROCKER

22U-12151-00-00

$47.53

SHAFT, ROCKER 2

22U-12156-02-00

$15.59

SCREW, VALVE ADJUSTING

22U-12159-00-00

Unavailable

NUT HEXAGON 371121580000

90170-06128-00

$5.87
