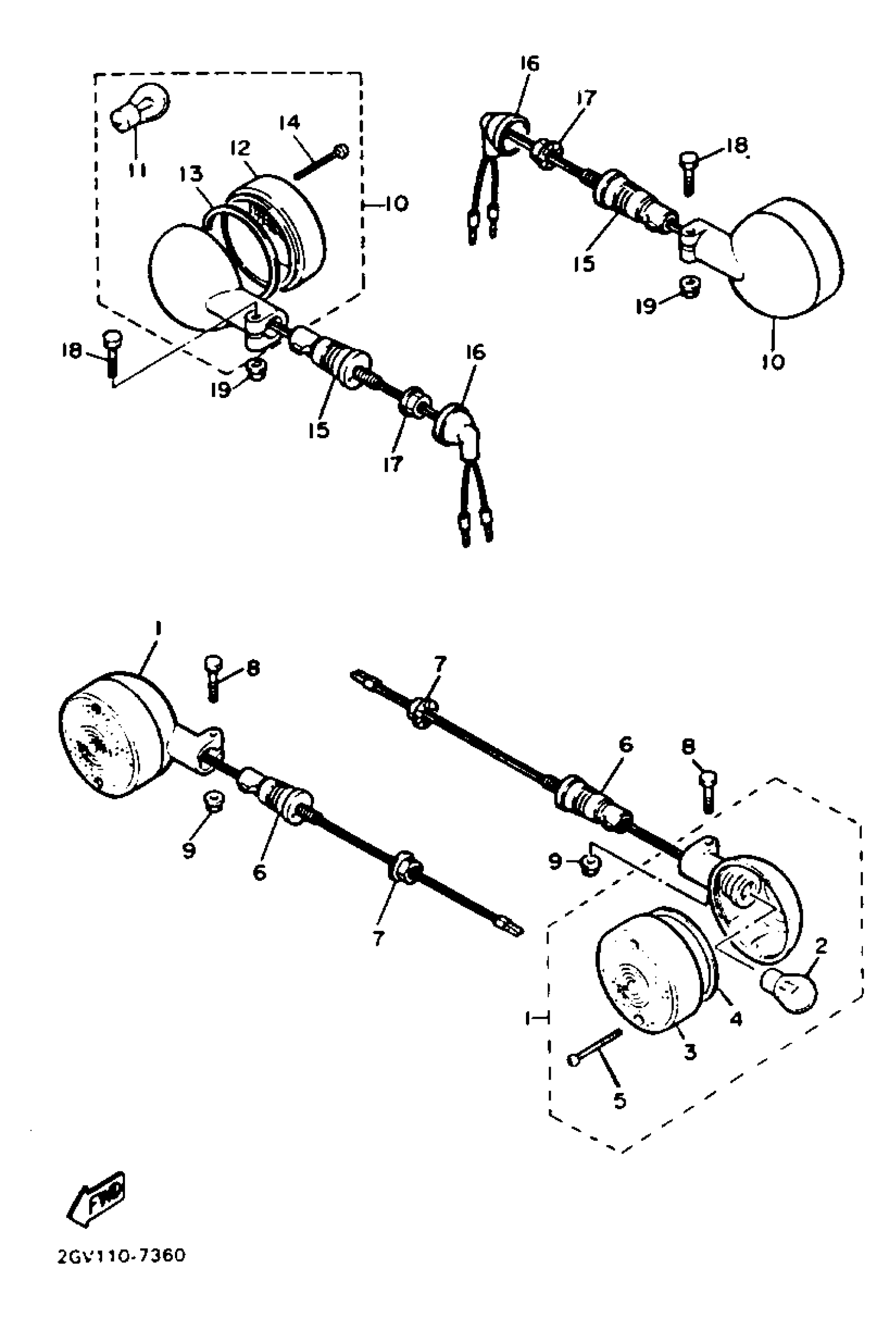

Yamaha XV535TC (VIRAGO 535 CA) 1987 TURNSIGNAL Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLYLIGHT ASSEMBLY 1

10M-83310-K0-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

3

LENS, FLASHER

4H7-83312-00-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.08

5

SCREW, PAN HEAD

98502-03530-00

$2.36

6

STAY, FLASHER 1

1AA-83318-00-00

$37.82

7

NUT(3DM)

95304-12600-00

$6.35

8

BOLT(JF7)

97080-06030-00

$3.42

9

NUT, FLANGE(7NB)

95780-06500-00

$1.88

10

REAR FLASHER LIGHT ASSY

5K5-83330-K0-00

Unavailable

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

LENS, FLASHER

42X-83312-09-00

Unavailable

13

GASKET, FLASHER LENS

1D6-83313-00-00

$6.08

14

SCREW, PAN HEAD

98502-03530-00

$2.36

15

STAY, FLASHER 1

1AA-83318-00-00

$37.82

16

CAP

18G-83365-00-00

Unavailable

17

NUT(3DM)

95304-12600-00

$6.35

18

BOLT(JF7)

97080-06030-00

$3.42

19

NUT, FLANGE(7NB)

95780-06500-00

$1.88
