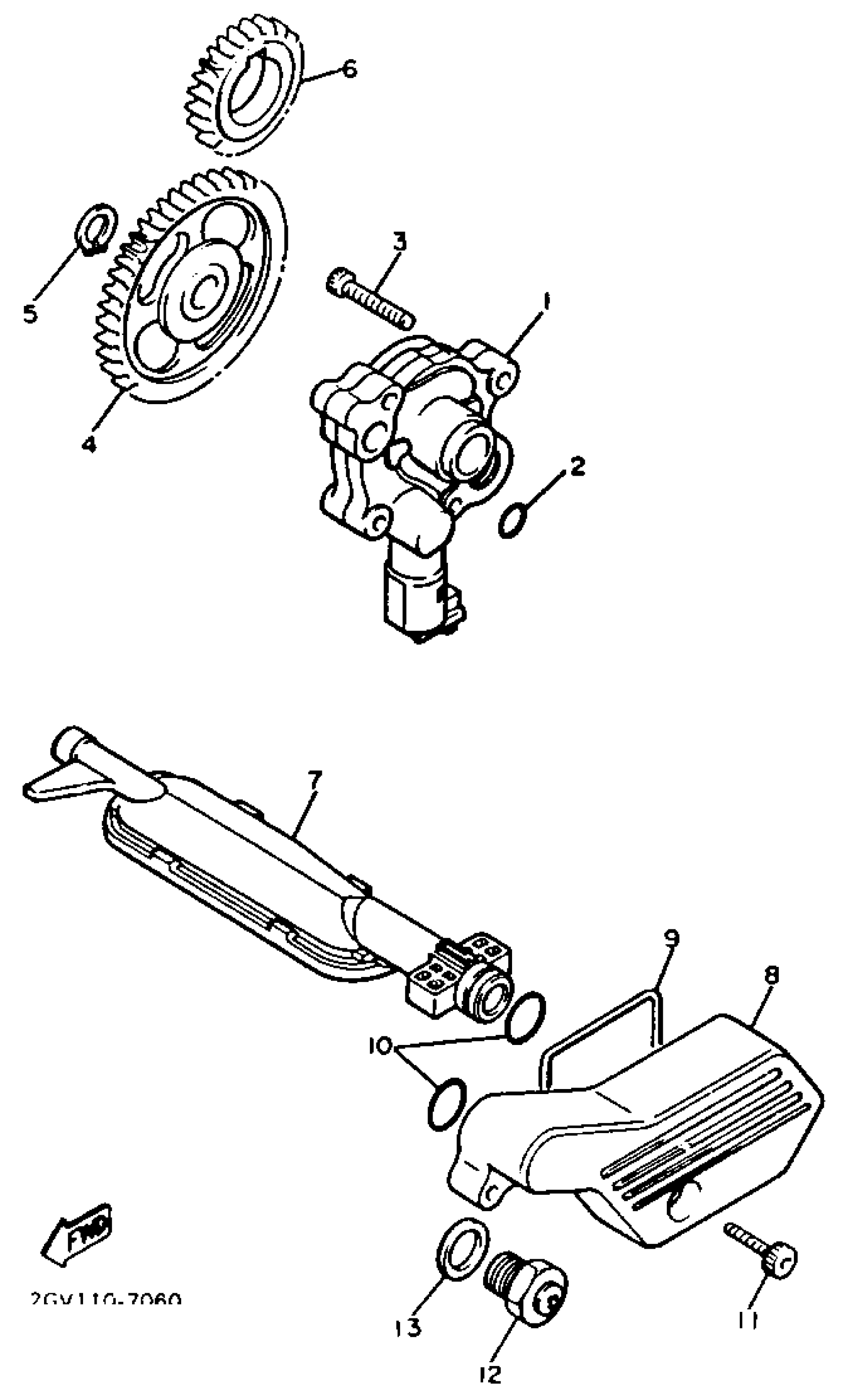

Yamaha XV535TC (VIRAGO 535 CA) 1987 OIL PUMP Diagram

OIL PUMP ASSY

22U-13300-00-00

$118.61

O-RING (611)

93210-10096-00

$3.06

BOLT, SOCKET

91314-06030-00

$5.87

GEAR, PUMP DRIVEN

4VR-13325-01-00

Unavailable

CIRCLIP(24H)

99009-11400-00

$6.08

GEAR, PUMP DRIVE

22U-13324-00-00

Unavailable

STRAINER HOUSING ASSEMBLY

22U-13410-00-00

Unavailable

COVER, STRAINER

2GV-13417-00-00

Unavailable

SEAL, OIL STRAINER

22U-13415-00-00

$8.51

O-RING (256)

93210-15151-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

$6.35

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.52

GASKET

214-11198-01-00

$2.58
