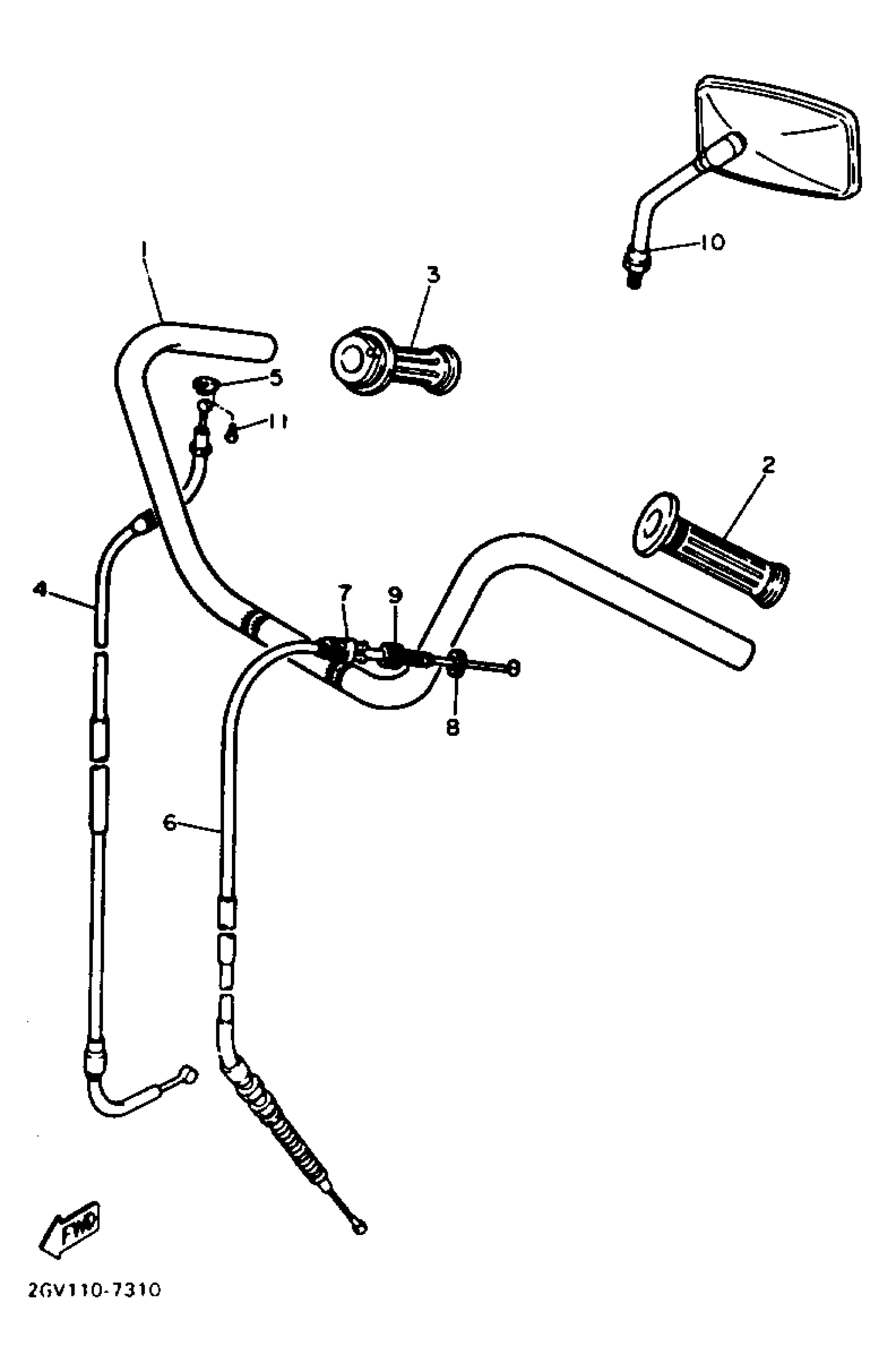

Yamaha XV535TC (VIRAGO 535 CA) 1987 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

2GV-26111-01-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$8.10

3

GRIP ASSY

2H7-26240-01-00

$14.36

4

CABLE, THROTTLE 1

2NU-26311-00-00

Unavailable

5

HOLDER

5H0-26393-00-00

$6.42

6

WIRE, CLUTCH

55U-26335-01-00

$57.89

7

BOOT, WIRE

1E6-26342-00-00

$33.99

8

NUT

90179-08030-00

$3.92

9

BOLT

90123-08002-00

$9.16

10

REAR VIEW MIRROR ASSY(LEFT)

4H7-26290-20-00

$133.08

11

GASKET, EXHAUST

98507-05008-00

$2.65
