Description

Price

1

HOLDER, LEVER

10M-82911-00-00

Unavailable

2

LEVER 1

2GV-83912-00-00

$28.99

3

SWITCH

2GV-82917-00-00

$34.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

O-RING (2H7)

93210-11368-00

$5.60

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92907-06100-00

$4.25

9

LEVER, (R.H)

2W1-83922-00-00

$31.99

10

SCREW (2L0)

90149-06131-00

$8.49

11

NUT HEXAGON 306839270000

90170-06010-00

$8.49

12

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

13

BOLT (4L0)

90109-06577-00

$5.60

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

SWITCH, HANDLE 3

52X-83973-00-00

Unavailable

16

SCREW, PAN

98507-05035-00

Unavailable

17

SWITCH, HANDLE 3

3JC-83973-00-00

Unavailable

18

SCREW, PAN

98507-05040-00

Unavailable

19

SCREW, PAN

98507-05045-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

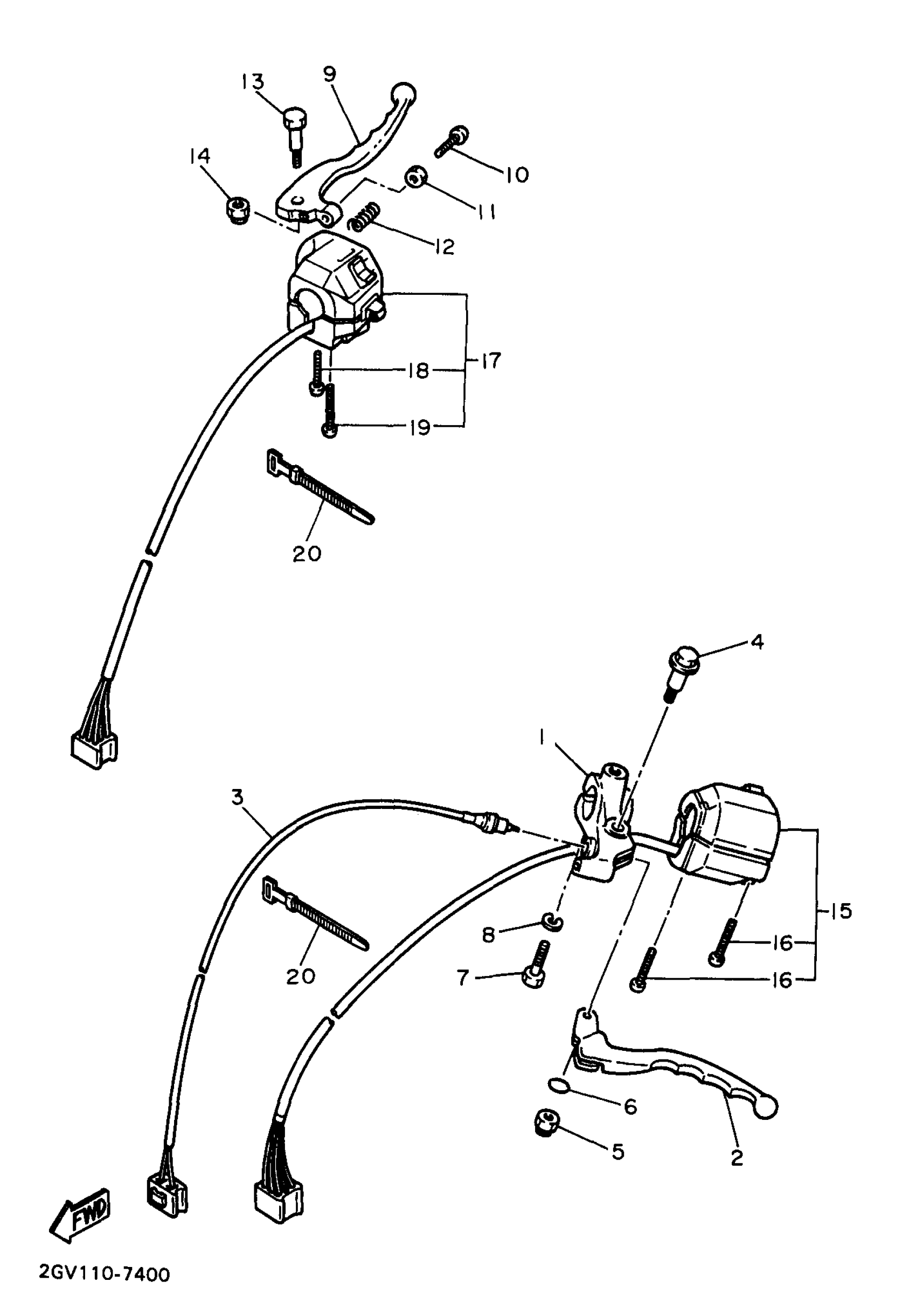

Yamaha XV535SJC (VIRAGO 535 CA) 1997 HANDLE SWITCH LEVER Diagram

HOLDER, LEVER

LEVER 1

SWITCH

BOLT (2YK1)

NUT, SELF-LOCKING

O-RING (2H7)

BOLT, HEXAGON

WASHER, SPRING

LEVER, (R.H)

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

BOLT (4L0)

NUT, SELF-LOCKING

SWITCH, HANDLE 3

SCREW, PAN

SWITCH, HANDLE 3

SCREW, PAN

SCREW, PAN

BAND, SWITCH CORD
