- XV535SJC (VIRAGO 535 CA) 1997
CYLINDER HEAD

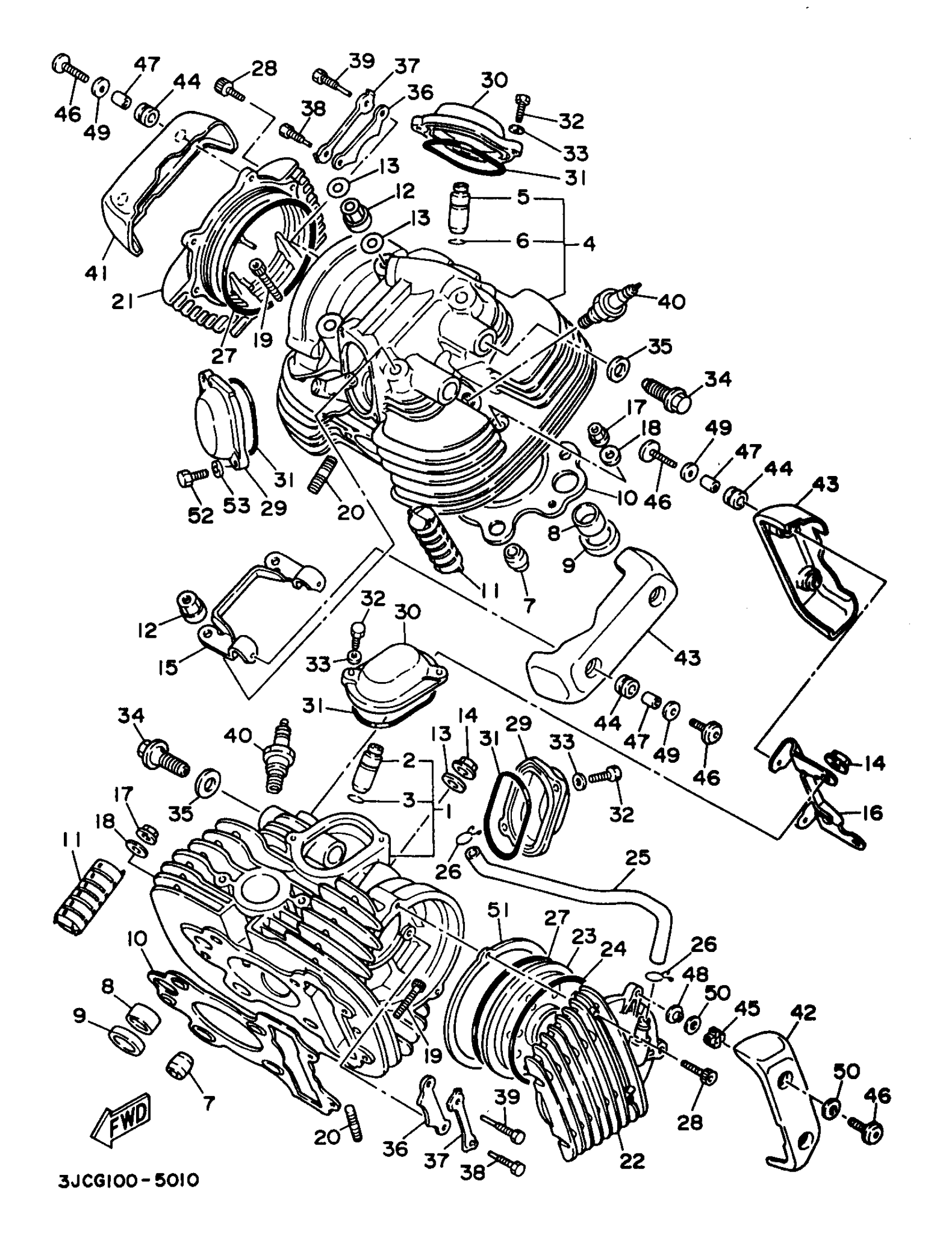

Yamaha XV535SJC (VIRAGO 535 CA) 1997 CYLINDER HEAD Diagram
#
1
CYLINDER HEAD ASY
3BM-11101-02-00
Unavailable
4
CYLINDER HEAD ASY
3BM-11101-12-00
Unavailable
7
PIN, DOWEL(3BM)
99530-17016-00
Unavailable
8
COLLAR
90387-226G7-00
Unavailable
9
GASKET (22U)
90430-24184-00
Unavailable
10
GASKET, CYLINDER HEAD 1
2GV-11181-00-00
Unavailable
11
ABSORBER 3
2GV-11127-00-00
Unavailable
15
BRACKET, CYLINDER HEAD COVER 2
2GV-11142-00-00
Unavailable
16
BRACKET, CYLINDER HEAD COVER
2GV-11152-00-00
Unavailable
17
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
18
WASHER, PLATE (33N)
90201-094G1-00
Unavailable
19
BOLT,SOCKET
91314-08030-00
Unavailable
20
BOLT, STUD 3
95617-08630-00
Unavailable
21
COVER, CYLINDER HEAD SIDE 1
2GV-11185-00-00
Unavailable
22
COVER, CYLINDER HEAD SIDE 4
2GV-1111H-00-00
Unavailable
23
PLATE, BREATHER
22U-11165-00-00
Unavailable
24
O-RING (22U)
93210-89568-00
Unavailable
25
PIPE, BREATHER 1
2GV-11166-00-00
Unavailable
26
CLIP (371)
90467-14015-00
Unavailable
27
O-RING (22U)
93211-00612-00
Unavailable
28
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
29
COVER, CYLINDER HEAD SIDE 2
22U-11186-01-00
Unavailable
30
COVER, CYLINDER HEAD SIDE 3
22U-11187-01-00
Unavailable
31
O-RING (4X7)
93210-62446-00
Unavailable
32
BOLT, HEXAGON
97017-06016-00
Unavailable
33
WASHER(6TA)
92907-06600-00
Unavailable
34
BOLT, UNION(4TR)
90401-16166-00
Unavailable
35
GASKET (4X7)
90430-17168-00
Unavailable
36
PLATE
22U-1111F-01-00
Unavailable
37
WASHER, LOCK
90215-08229-00
Unavailable
38
BOLT (26M)
90109-08782-00
Unavailable
39
BOLT (26M)
90109-08781-00
Unavailable
40
BPR7ES NGK - 4/PACK
BPR-7ES00-40-00
Unavailable
41
COVER,CYL.HEAD 2
2NT-11186-01-00
Unavailable
42
COVER ASSY 1
2NT-1110M-01-00
Unavailable
43
COVER,CYL.HEAD 3
2NT-11187-01-00
Unavailable
44
GROMMET
90480-18411-00
Unavailable
45
GROMMET
90480-19471-00
Unavailable
46
BOLT, HEXAGON SOCKET HEAD(2GV)
90110-06198-00
Unavailable
47
COLLAR (8A7)
90387-06518-00
Unavailable
48
COLLAR
90387-072W2-00
Unavailable
49
WASHER, PLATE (J10)
90201-06697-00
Unavailable
50
GASKET
3BT-11195-00-00
Unavailable
51
GASKET, CYLINDER HEAD SIDE
3BT-11196-01-00
Unavailable
52
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
53
WASHER(6TA)
92907-06600-00
Unavailable
