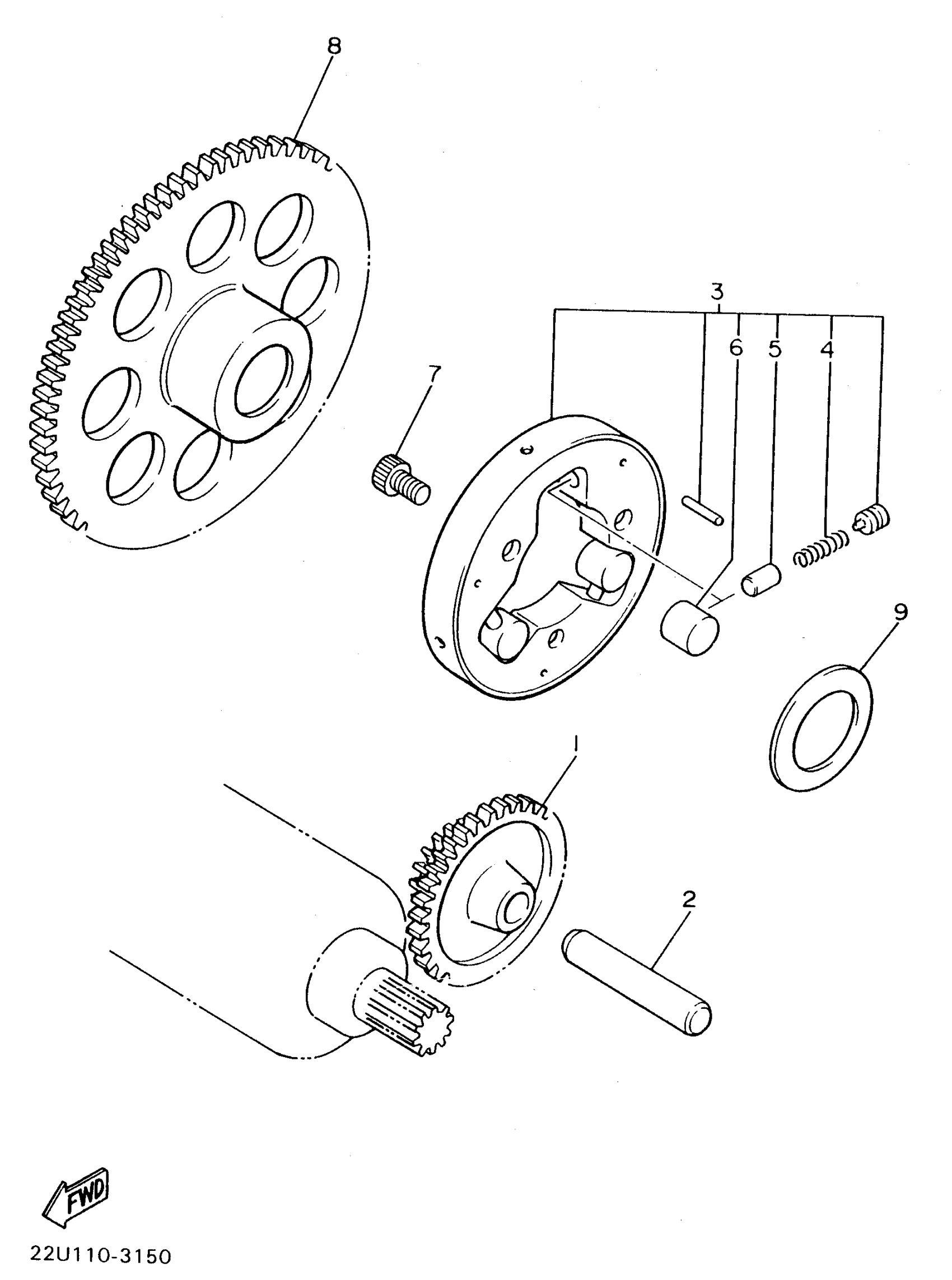

Yamaha XV535SHC (VIRAGO 535 CA) 1996 STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, IDLER 1

22U-15512-00-00

Unavailable

2

SHAFT 1

5H0-15521-00-00

Unavailable

3

STARTER CLUTCH OUTER ASSY

22U-15580-00-00

Unavailable

4

SPRING, COMPRESSION (4G0)

90501-04623-00

$5.69

5

CAP, STARTER CLUTCH

1J7-15583-01-00

$16.33

6

PIN,DOWEL(341)

93615-12088-00

$5.63

7

BOLT, SOCKET

91317-08012-00

$6.91

8

GEAR, IDLER 2

22U-15517-00-00

Unavailable

9

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable
