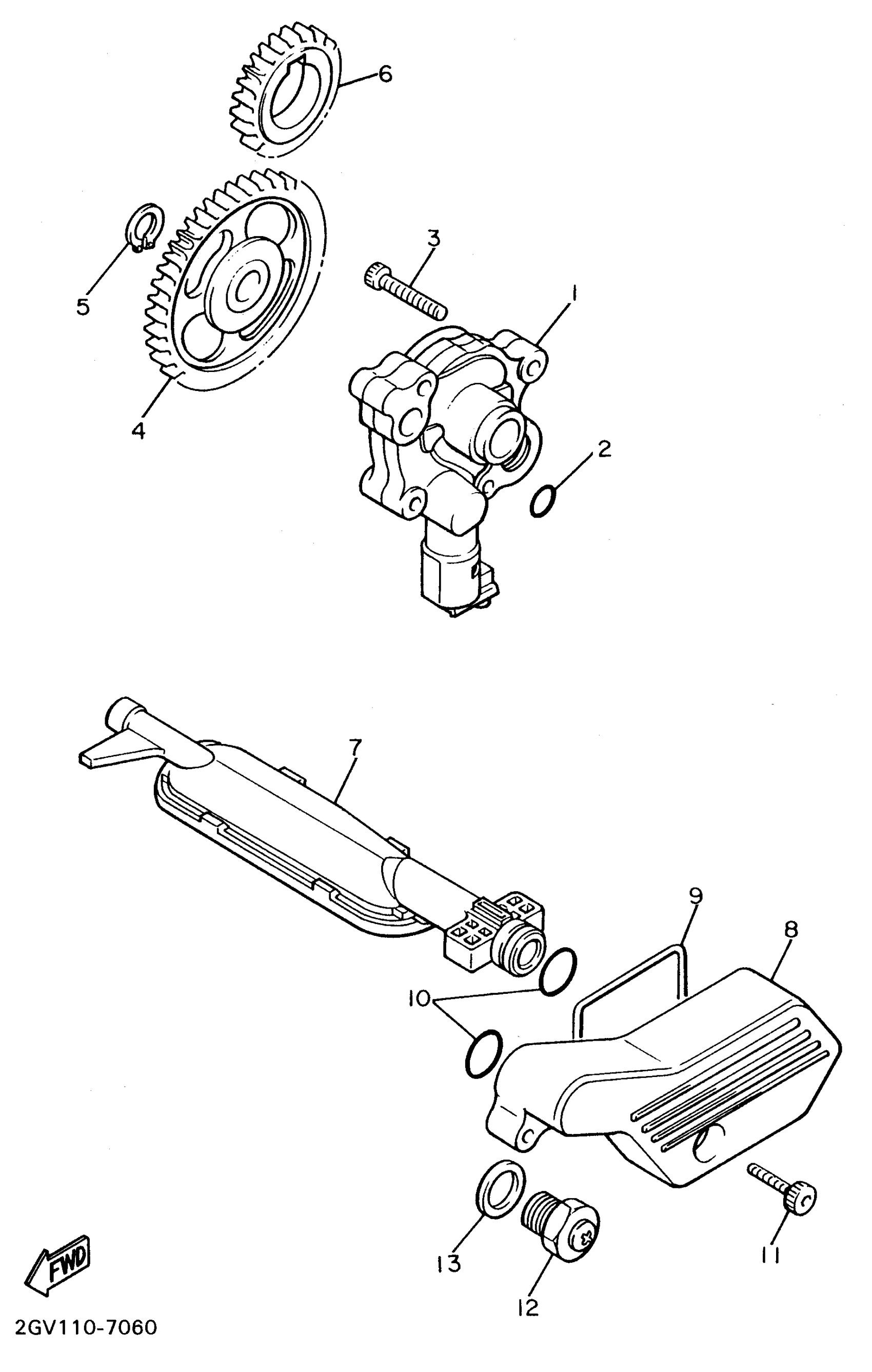

Yamaha XV535SHC (VIRAGO 535 CA) 1996 OIL PUMP Diagram

OIL PUMP ASSY

22U-13300-00-00

$131.99

O-RING (611)

93210-10096-00

$3.76

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

GEAR, PUMP DRIVEN

4VR-13325-01-00

Unavailable

CIRCLIP(24H)

99009-11400-00

$8.49

GEAR, PUMP DRIVE

22U-13324-00-00

Unavailable

STRAINER HOUSING ASSEMBLY

22U-13410-00-00

Unavailable

COVER, STRAINER

2GV-13417-00-00

Unavailable

SEAL, OIL STRAINER

22U-13415-00-00

$11.99

O-RING (256)

93210-15151-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

GASKET

214-11198-01-00

$3.17
