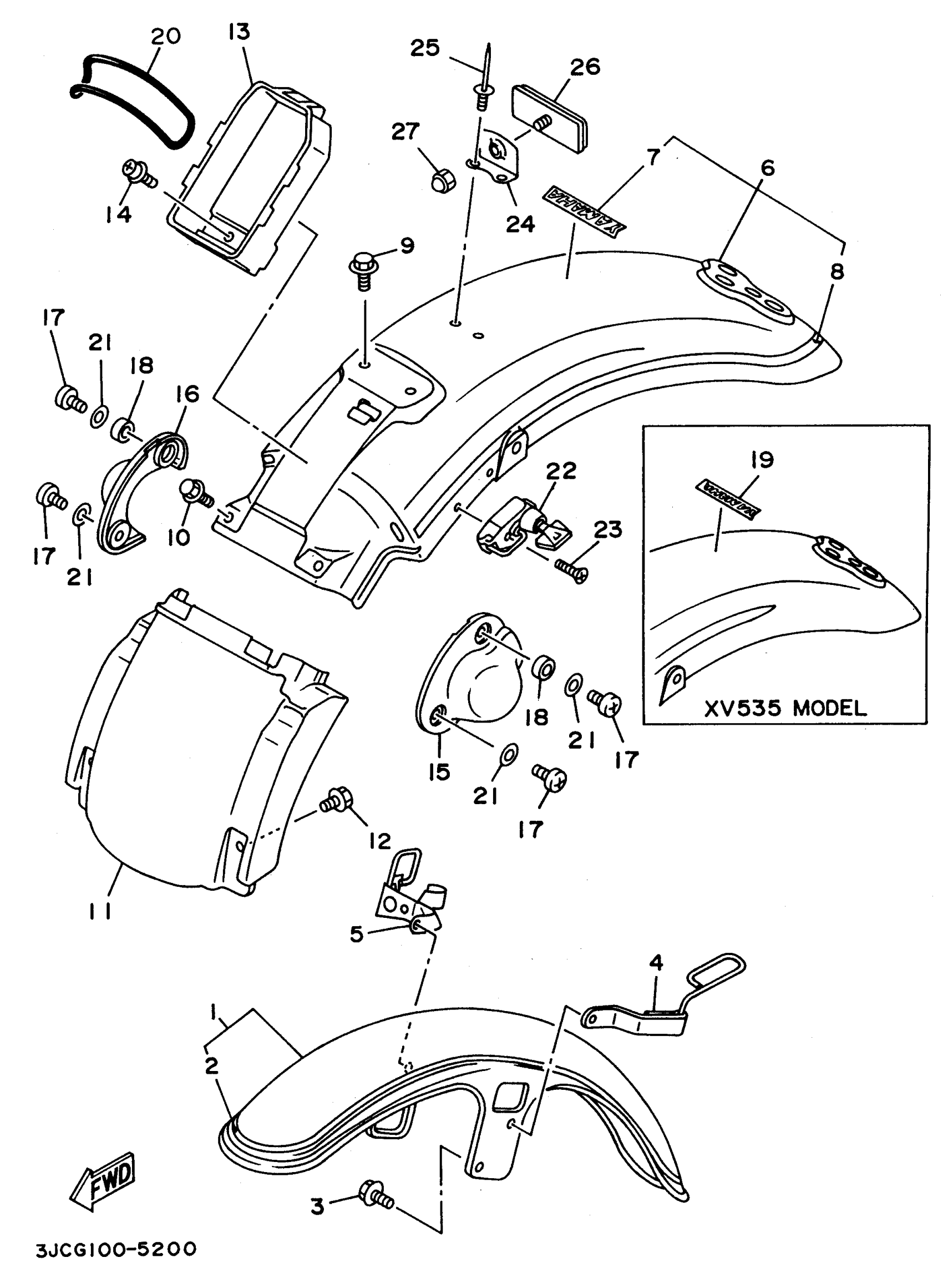

Yamaha XV535SHC (VIRAGO 535 CA) 1996 FENDER Diagram
#
Description
Price
1
FENDER,FRONT
2GV-21510-01-FH
Unavailable
1
FRONT FENDER ASSY
2GV-Y2150-71-9U
Unavailable
2
. GRAPHIC SET
3JC-21570-00-00
Unavailable
4
HOLDER, WIRE 1
2GV-21597-00-00
Unavailable
5
HOLDER, WIRE 2
4FT-21598-00-00
Unavailable
6
REAR FENDER COMP.
3JB-21610-00-FH
Unavailable
6
REAR FENDER COMP.
3JB-Y2161-0X-3X
Unavailable
8
. GRAPHIC SET
3JC-2165A-20-00
Unavailable
11
GUARD, MUD
2GV-21629-00-9U
Unavailable
11
GUARD, MUD
2GV-21629-00-FH
Unavailable
13
BOX
2GV-2160E-00-00
Unavailable
14
SCREW, W/WASHER (14T)
90159-06059-00
Unavailable
15
COVER, REAR FENDER 1
2GV-2163A-00-00
Unavailable
16
COVER, REAR FENDER 2
2GV-2163E-00-00
Unavailable
17
SCREW, BINDING HEAD (3XW7)
98904-08014-00
Unavailable
18
SPACER(2GV)
90560-08326-00
Unavailable
19
EMBLEM, YAMAHA
99247-00080-00
Unavailable
20
O-RING (2H7)
93210-71360-00
Unavailable
21
WASHER, PLAIN
92990-08200-00
Unavailable
22
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
23
SCREW (4G1)
90149-06154-00
Unavailable
24
BRACKET, REFLECTOR
3JB-21641-00-00
Unavailable
25
RIVET, BLIND(41R)
90267-48104-00
Unavailable
26
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
27
NUT, CAP
95307-05800-00
Unavailable
