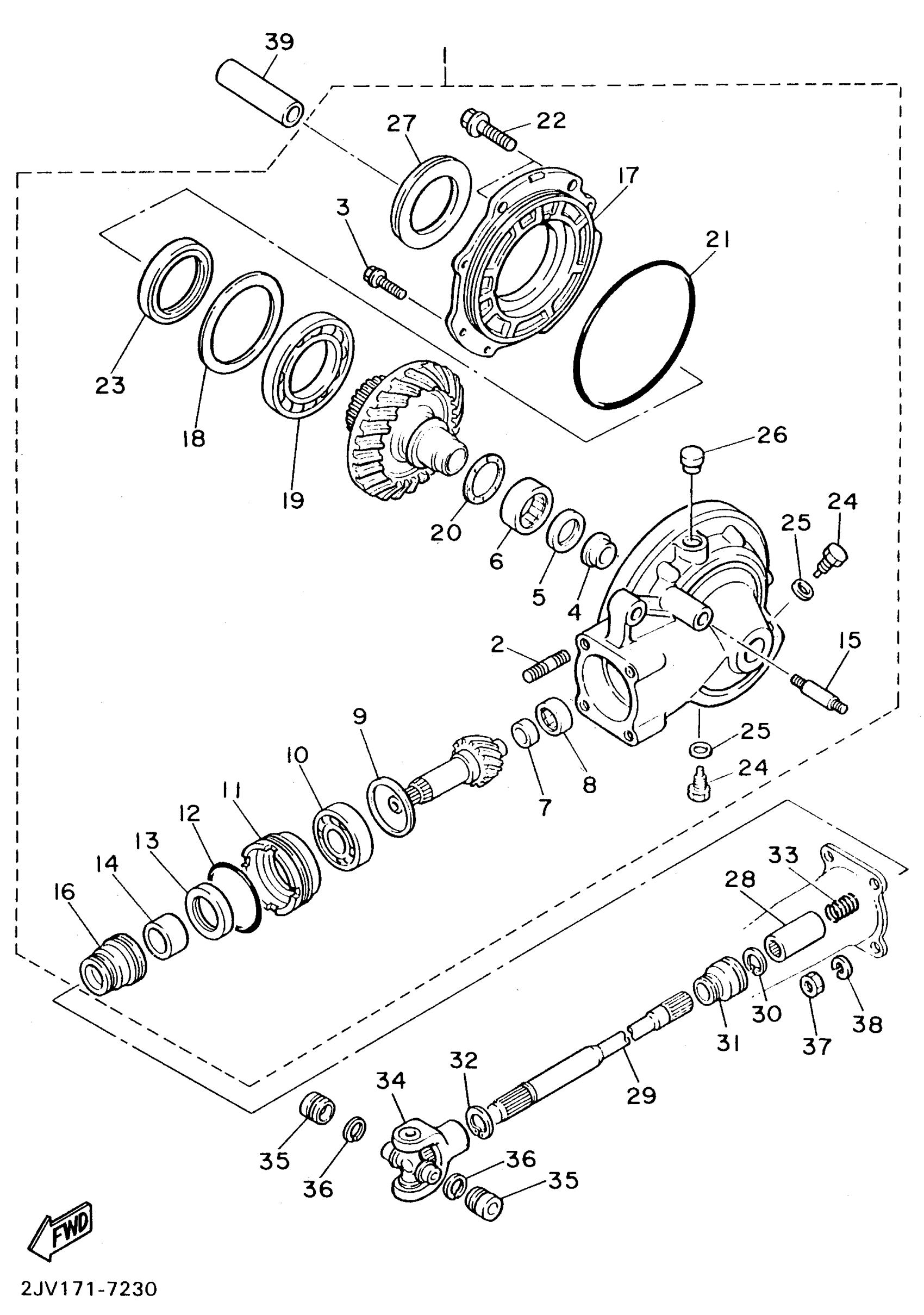

Yamaha XV535SHC (VIRAGO 535 CA) 1996 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

2NT-46101-00-00

Unavailable

2

BOLT, STUD (5E5)

90116-10361-00

Unavailable

3

BOLT, WITH WASHER(72H)

97527-08525-00

$6.99

4

COLLAR, GUIDE

22U-46153-00-00

Unavailable

5

OIL SEAL (30X42X7-1J7)

93101-30084-00

$18.99

6

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

7

RACE, INNER

2H7-46122-00-00

$28.99

8

BEARING ASSY

2H7-46102-00-00

$58.99

9

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

9

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

9

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

10

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

11

RETAINER, BEARING

4H7-46125-00-00

$62.99

12

O-RING (4H7)

93210-60426-00

$10.49

13

OIL SEAL (4H7)

93101-38098-00

$17.99

14

. COLLAR

90387-256G9-00

Unavailable

15

BOLT, STUD (4H7)

90116-10249-00

Unavailable

16

. SEAL 1

22U-46136-00-00

Unavailable

17

HOUSING, BEARING

22U-46152-00-00

Unavailable

18

SHIM, RING GEAR

22U-46117-00-25

Unavailable

18

SHIM, RING GEAR

22U-46117-00-30

Unavailable

18

SHIM, RING GEAR

22U-46117-00-40

Unavailable

19

BEARING, CYLINDRICAL (22U)

93316-01301-00

Unavailable

20

WASHER, THRUST

22U-46118-00-12

Unavailable

20

WASHER, THRUST

22U-46118-00-14

Unavailable

20

WASHER, THRUST

22U-46118-00-16

Unavailable

20

WASHER, THRUST

22U-46118-00-18

Unavailable

20

WASHER, THRUST

22U-46118-00-20

Unavailable

21

O-RING (22U)

93211-39569-00

Unavailable

22

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

23

OIL SEAL (22U)

93102-65277-00

Unavailable

24

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

25

GASKET

214-11198-01-00

Unavailable

26

BREATHER COMP.

2H7-17590-00-00

Unavailable

27

SEAL, HUB DUST

1J7-25319-02-00

Unavailable

28

COUPLING, GEAR

22U-46123-00-00

Unavailable

29

SHAFT, DRIVE

2GV-46172-00-00

Unavailable

30

CIRCLIP

93440-19112-00

Unavailable

31

SEAL 2

22U-46137-00-00

Unavailable

32

CIRCLIP (537)

93410-22039-00

Unavailable

33

SPRING, COMPRESSION (22U)

90501-15722-00

Unavailable

34

CROSS JOINT COMP.

4X7-46180-00-00

Unavailable

35

BEARING(2HR)

93399-99926-00

Unavailable

36

CIRCLIP (4X7)

93440-20088-00

Unavailable

37

NUT(3BM)

95314-10600-00

Unavailable

38

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

39

COLLAR

90387-156G8-00

Unavailable
