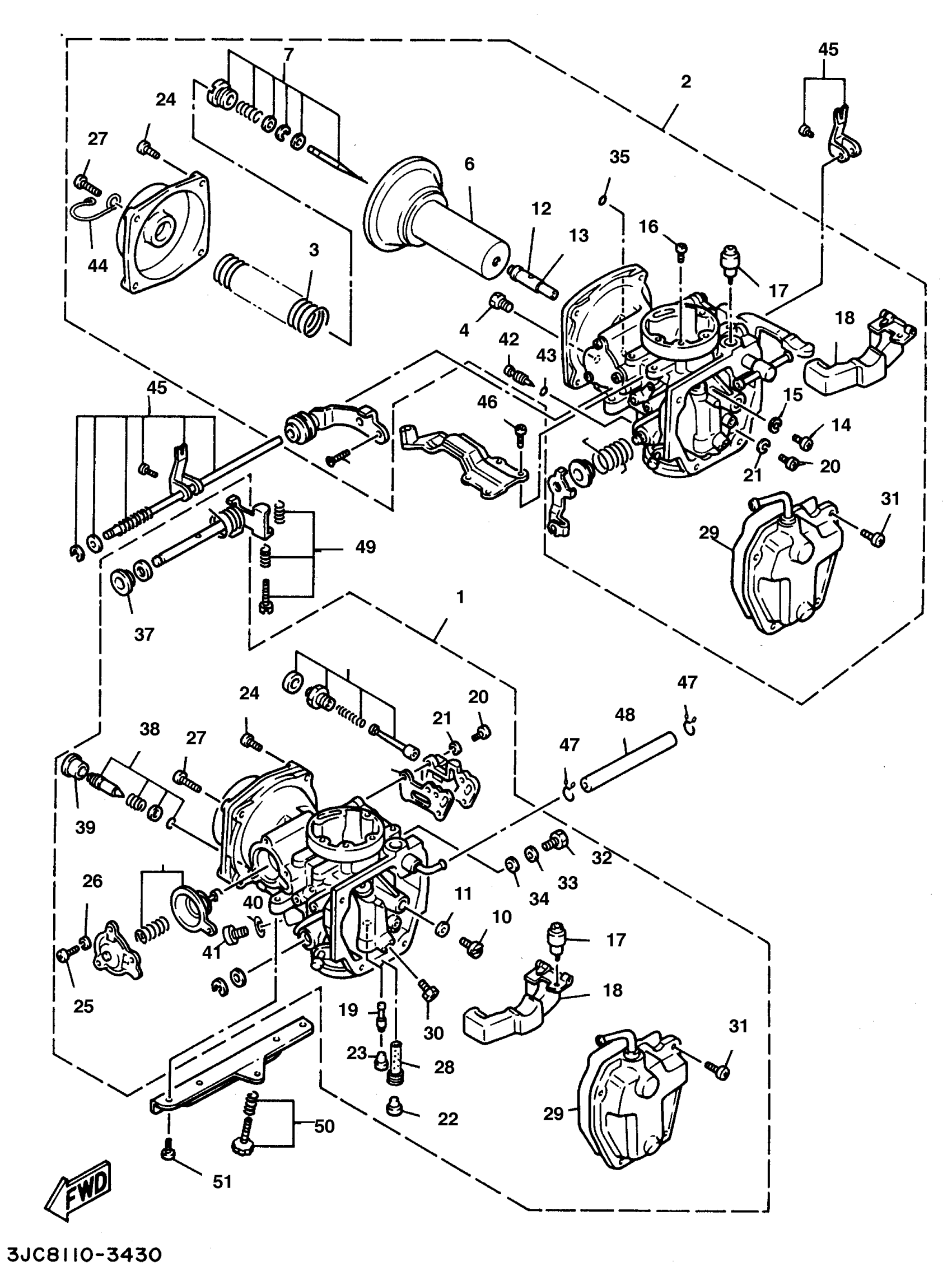

Yamaha XV535SHC (VIRAGO 535 CA) 1996 CARBURETOR Diagram
#
1
. CARBURETOR ASSEMBLY 1 (1)
3JC-14901-20-00
Unavailable
1
. CARBURETOR ASSEMBLY 1 (1)
3JC-14901-30-00
Unavailable
1
. CARBURETOR ASSEMBLY 1
3JC-14901-40-00
Unavailable
1
. CARBURETOR ASSEMBLY 1
3JC-14901-50-00
Unavailable
2
. CARBURETOR ASSEMBLY 2 (2)
3JC-14902-20-00
Unavailable
2
. CARBURETOR ASSEMBLY 2 (2)
3JC-14902-30-00
Unavailable
2
. CARBURETOR ASSEMBLY 2
3JC-14902-40-00
Unavailable
2
. CARBURETOR ASSEMBLY 2
3JC-14902-50-00
Unavailable
5
DIAPHRAGM SET 5
22U-1490H-00-00
Unavailable
6
DIAPHRAGM ASSY
41R-14940-09-00
Unavailable
7
.. NEEDLE SET
3JC-1490J-00-00
Unavailable
7
.. NEEDLE SET
3JC-1490J-10-00
Unavailable
9
GASKET
3JB-14536-00-00
Unavailable
10
SCREW
22U-14565-00-00
Unavailable
11
WASHER,MAIN JET
137-14153-00-00
Unavailable
12
NOZZLE, MAIN
2JU-14141-90-00
Unavailable
13
O-RING
22U-14147-00-00
Unavailable
14
SCREW, PAN HEAD
98507-04018-00
Unavailable
15
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
16
JET, MAIN (# 70)
3G2-14231-14-00
Unavailable
17
NEEDLE VALVE ASSY
1FK-14190-15-00
Unavailable
18
FLOAT
1FK-14985-00-00
Unavailable
19
JET, PILOT (# 35)
4G0-14142-35-A0
Unavailable
20
SCREW, PAN HEAD
98517-04012-00
Unavailable
21
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
22
CAP
22U-14968-00-00
Unavailable
23
CAP
22V-14968-00-00
Unavailable
24
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
25
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
26
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
27
SCREW, PAN HEAD(1FK)
90157-05050-00
Unavailable
28
.. PIPE, MAIN BREED
2JU-1414G-00-00
Unavailable
29
O-RING
22V-14147-00-00
Unavailable
30
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
30
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
31
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
32
.. PLUG, SCREW
341-14991-00-00
Unavailable
33
.. WASHER
26H-14952-00-00
Unavailable
34
WASHER
22U-14952-00-00
Unavailable
35
O-RING (248)
93210-03119-00
Unavailable
36
SCREW,FLAT
98707-06010-00
Unavailable
37
.. WASHER
341-14954-00-00
Unavailable
38
PILOT SCREW SET
12R-14105-00-00
Unavailable
39
CAP
3F9-14118-00-00
Unavailable
40
GASKET
127-14198-00-00
Unavailable
41
SCREW,BINDING
98907-08014-00
Unavailable
42
SCREW
2L1-14191-00-00
Unavailable
43
O-RING
214-14147-00-00
Unavailable
44
.. CLIP
2JU-14937-00-00
Unavailable
45
. STARTER LEVER SET, 1
3JB-1490L-00-00
Unavailable
46
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
47
CLIP
90467-100A1-00
Unavailable
48
HOSE
31H-14987-00-00
Unavailable
49
STOP SCREW SET
4KM-1490K-00-00
Unavailable
50
. THROTTLE SCREW SET
22U-14103-00-00
Unavailable
51
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
