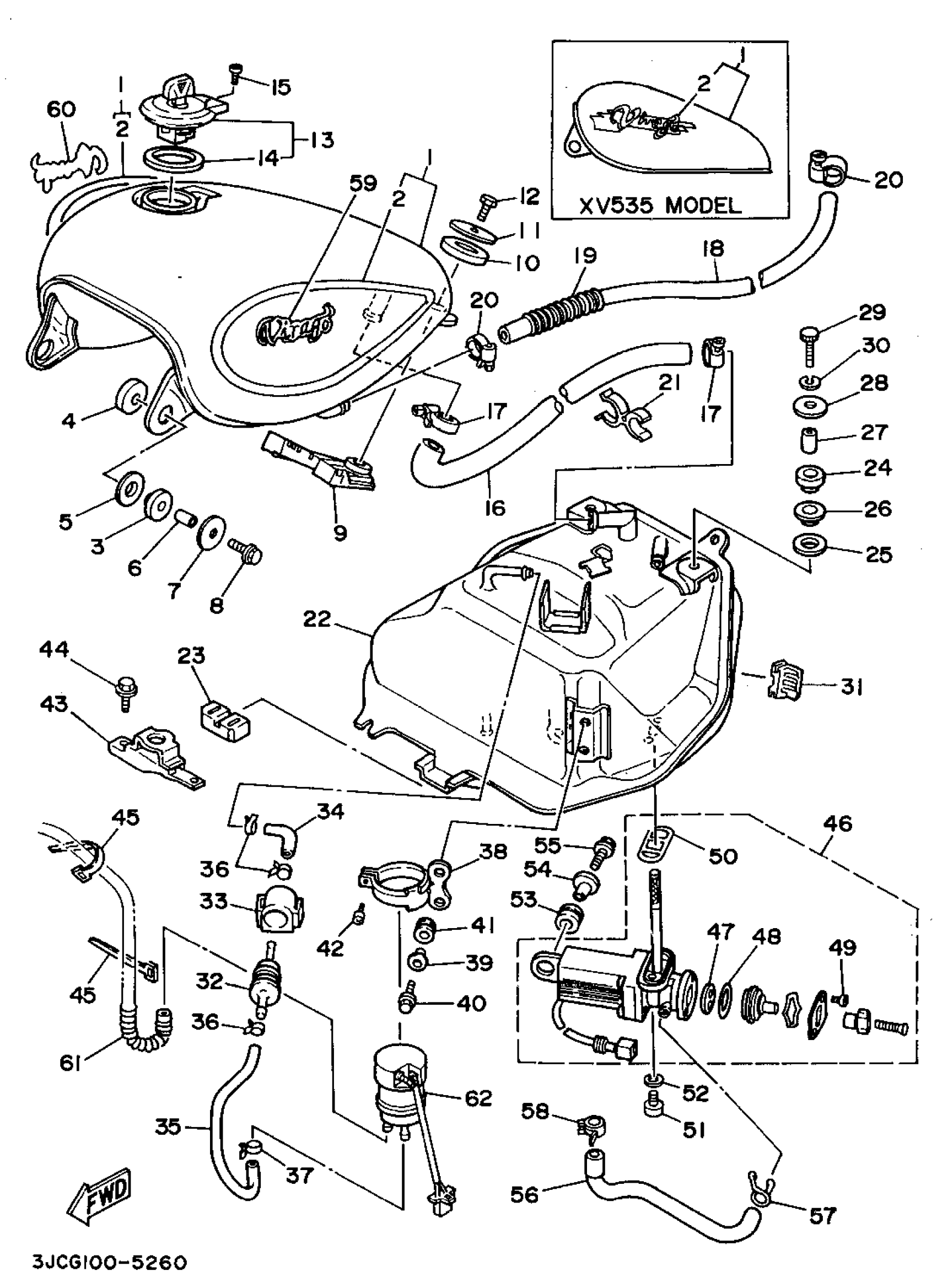

Yamaha XV535SGC (VIRAGO 535 CA) 3JCL 1995 FUEL TANK Diagram
#
1
SUB TANK ASSY
3JB-Y2428-A0-0X
Unavailable
1
SUB-TANK ASSY
3BR-Y2428-40-P2
Unavailable
2
. GRAPHIC SET
3JB-24240-31-00
Unavailable
2
. GRAPHIC SET
3JC-24240-00-00
Unavailable
3
DAMPER, LOCATING 2
1FK-24182-00-00
Unavailable
6
COLLAR
90387-06387-00
Unavailable
9
DAMPER, LOCATING 2
3JB-24182-00-00
Unavailable
13
CAP ASSY
20K-24602-10-00
Unavailable
13
CAP ASSY
4X7-24602-10-00
Unavailable
14
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
15
BOLT, SOCKET
91317-05010-00
Unavailable
16
PIPE 6
3JB-24316-00-00
Unavailable
17
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
18
PIPE 7
3JB-24317-00-00
Unavailable
19
SPRING,COMPRESSION
90501-101J4-00
Unavailable
20
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
21
CLAMP 1
3JB-24135-00-00
Unavailable
22
FUEL TANK COMP.
3JB-24110-01-33
Unavailable
22
FUEL TANK COMP.
3JC-24110-00-33
Unavailable
23
DAMPER, LOCATING 1
2GV-24181-00-00
Unavailable
24
DAMPER, LOCATING 2
1FK-24182-00-00
Unavailable
27
COLLAR
90387-06387-00
Unavailable
28
WASHER (23T)
90201-065G8-00
Unavailable
29
BOLT, HEXAGON
97017-06030-00
Unavailable
30
WASHER, SPRING
92907-06100-00
Unavailable
31
DAMPER, LOCATING 4
2GV-24184-00-00
Unavailable
32
FILTER ASSY
1FK-24560-10-00
Unavailable
33
BRACKET, FILTER
1FK-24566-00-00
Unavailable
34
PIPE, FUEL 1
2GV-24311-00-00
Unavailable
35
PIPE 2
2GV-24312-00-00
Unavailable
36
CLIP (7K7)
90467-11044-00
Unavailable
37
CLIP(3BM)
90467-10135-00
Unavailable
38
BRACKET, FUEL PUMP
2GV-24491-00-00
Unavailable
39
COLLAR(42G)
90387-062L2-00
Unavailable
40
BOLT, FLANGE
95817-06016-00
Unavailable
41
GROMMET (1E5)
90480-13163-00
Unavailable
42
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
43
BRACKET, FUEL TANK 1
2GV-24191-00-00
Unavailable
44
BOLT, WITH WASHER(1JK)
90119-06123-00
Unavailable
45
BAND, SWITCH CORD
437-83936-11-00
Unavailable
46
FUEL COCK ASSY 1
3JB-24500-03-00
Unavailable
47
VALVE PACKING
3AC-24523-00-00
Unavailable
48
SEAL, COCK
3AJ-24534-01-00
Unavailable
49
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
50
O-RING
4X8-24512-00-00
Unavailable
51
SCREW 366241430000
90149-06008-00
Unavailable
52
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
53
GROMMET 839774310000
90480-14023-00
Unavailable
54
COLLAR
90387-06158-00
Unavailable
55
BOLT, FLANGE
95817-06025-00
Unavailable
56
PIPE 4
3JB-24314-00-00
Unavailable
57
CLIP
90467-100A1-00
Unavailable
58
CLIP (7K7)
90467-11044-00
Unavailable
59
EMBLEM 2
3JB-24162-10-00
Unavailable
60
EMBLEM 2
3JB-24162-10-00
Unavailable
61
SPRING,COMPRESSION
90501-100F8-00
Unavailable
62
FUEL PUMP COMP.
1HX-13907-01-00
Unavailable
