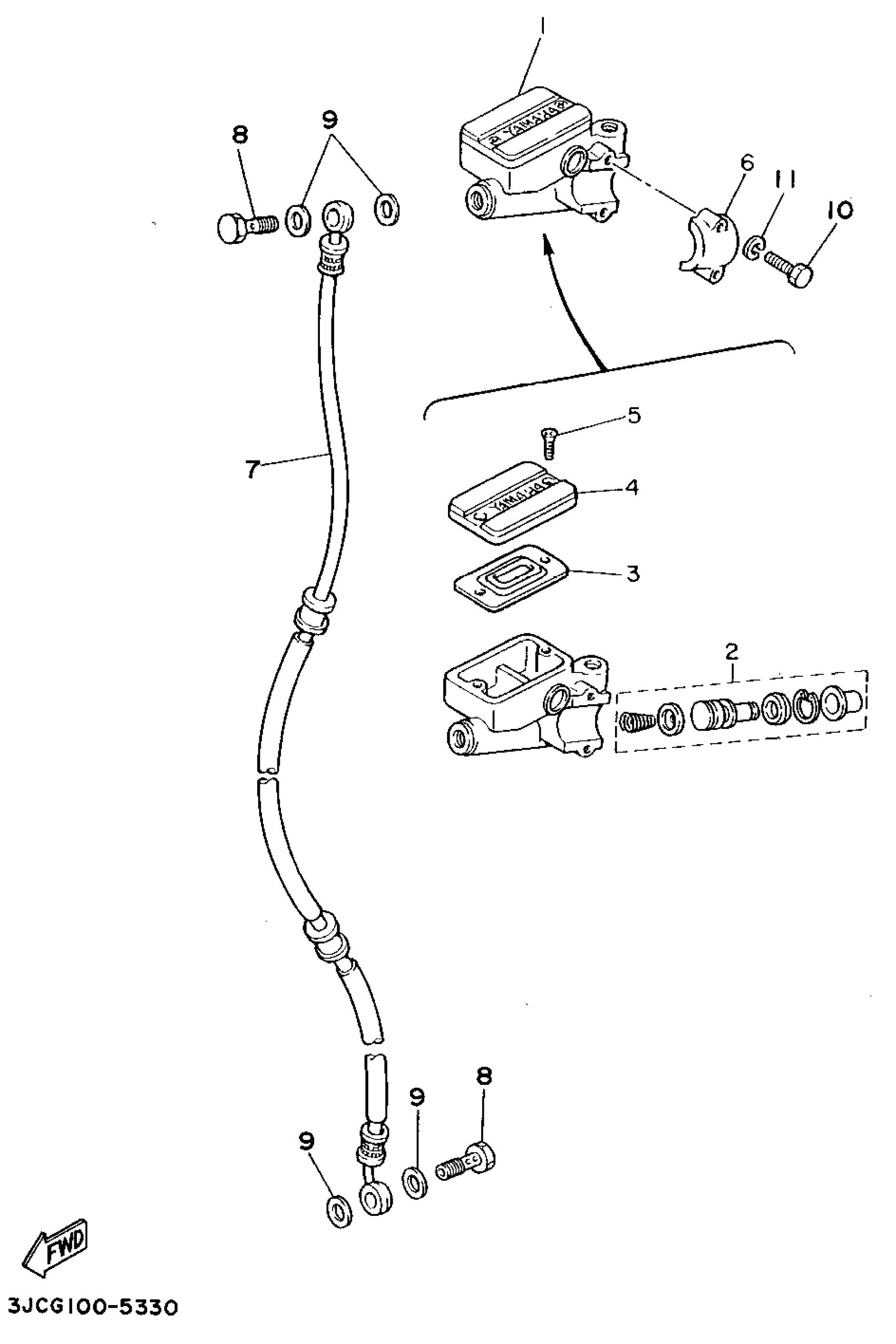

Yamaha XV535SGC (VIRAGO 535 CA) 3JCL 1995 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSEMBLY

4H7-25850-02-00

Unavailable

2

CYLINDER KIT, MASTER

4H7-W0041-00-00

$71.87

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

4H7-25852-00-00

$33.30

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

HOSE, BRAKE 1

3JB-25872-40-00

Unavailable

7

HOSE, BRAKE 1

4KU-25872-00-00

Unavailable

8

BOLT, UNION(3GM)

90401-10159-00

$8.26

9

WASHER, PLATE(481)

90201-10118-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$2.78

11

WASHER, SPRING

92907-06100-00

$0.98
