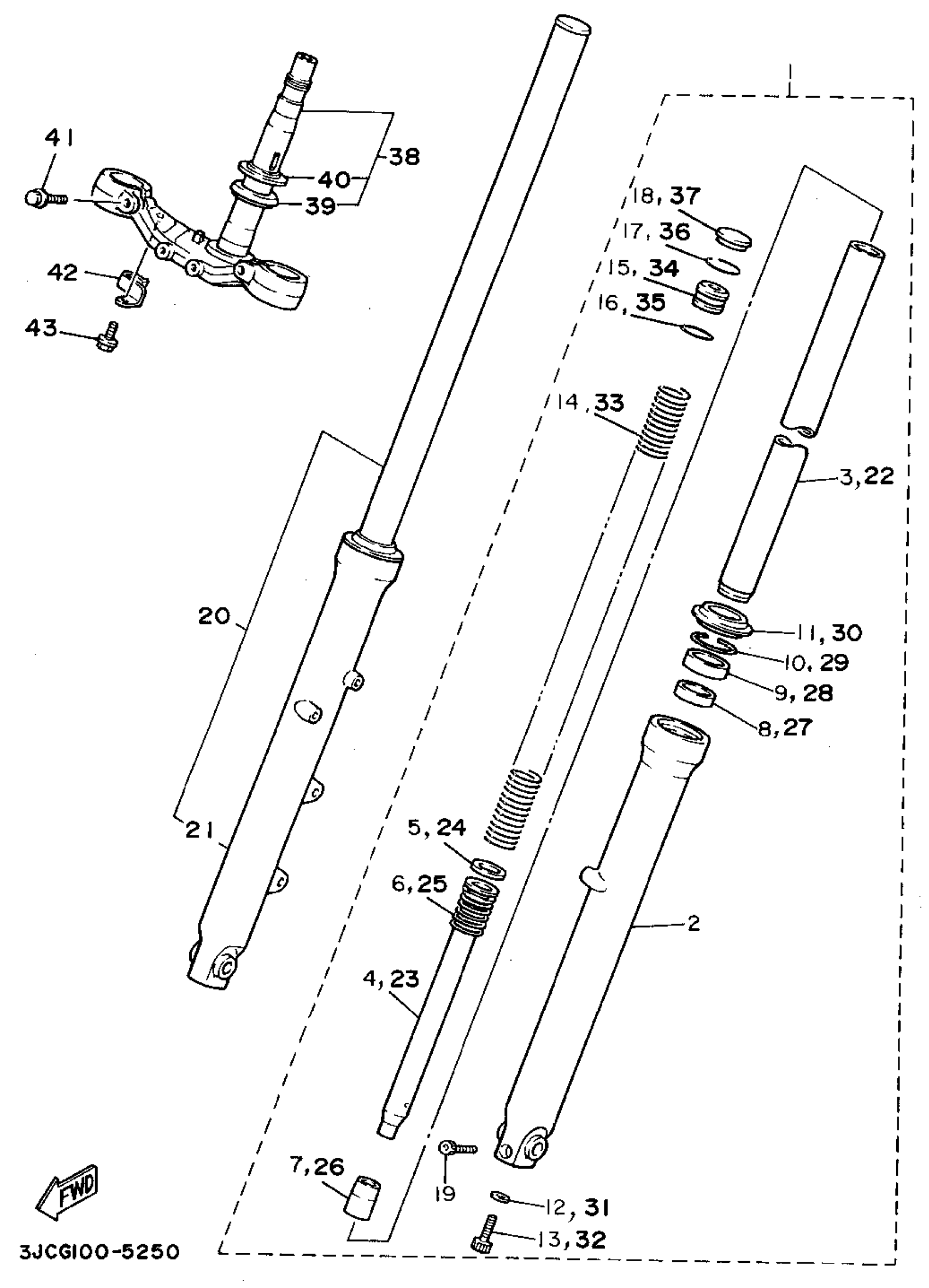

Yamaha XV535SGC (VIRAGO 535 CA) 3JCL 1995 FRONT FORK Diagram
#
1
FRONT FORK ASY L
4KU-23102-01-00
Unavailable
1
FRONT FORK ASSY (L.H)
4KU-23102-10-00
Unavailable
2
TUBE, OUTER (LEFT)
3JB-23126-10-00
Unavailable
3
INNER TUBE COMP.1
2GV-23110-01-00
Unavailable
4
PISTON,FRONT FORK
2GV-23171-01-00
Unavailable
5
. RING, PISTON
1GU-23157-00-00
Unavailable
6
. SPRING, REBOUND
1GU-23151-00-00
Unavailable
7
. SPINDLE, TAPER
1GU-23173-00-00
Unavailable
10
. CLIP, OIL SEAL
1HX-23156-00-00
Unavailable
11
SEAL, DUST
2GV-23144-00-00
Unavailable
12
. GASKET
90430-08143-00
Unavailable
14
. SPRING, FRONT FORK
2GV-23141-00-00
Unavailable
15
BOLT, CAP
1HX-23111-00-00
Unavailable
16
O-RING(1HX)
93210-24709-00
Unavailable
17
CIRCLIP(1HX)
93450-32116-00
Unavailable
18
PLUG, INNER TUBE
1HX-23154-00-00
Unavailable
18
PLUG, INNER TUBE
3JB-23154-00-00
Unavailable
19
BOLT, SOCKET
91314-08035-00
Unavailable
20
FRONT FORK ASY R
4KU-23103-11-00
Unavailable
20
FRONT FORK ASSY (R.H)
4KU-23103-10-00
Unavailable
21
TUBE, OUTER (RIGHT)
3JB-23136-11-00
Unavailable
22
INNER TUBE COMP.1
2GV-23110-01-00
Unavailable
23
PISTON,FRONT FORK
2GV-23171-01-00
Unavailable
24
. RING, PISTON
1GU-23157-00-00
Unavailable
25
. SPRING, REBOUND
1GU-23151-00-00
Unavailable
26
. SPINDLE, TAPER
1GU-23173-00-00
Unavailable
29
. CLIP, OIL SEAL
1HX-23156-00-00
Unavailable
30
SEAL, DUST
2GV-23144-00-00
Unavailable
31
. GASKET
90430-08143-00
Unavailable
33
. SPRING, FRONT FORK
2GV-23141-00-00
Unavailable
34
BOLT, CAP
1HX-23111-00-00
Unavailable
35
O-RING(1HX)
93210-24709-00
Unavailable
36
CIRCLIP(1HX)
93450-32116-00
Unavailable
37
PLUG, INNER TUBE
1HX-23154-00-00
Unavailable
37
PLUG, INNER TUBE
3JB-23154-00-00
Unavailable
38
UNDER BRACKET COMP.
99999-03559-00
Unavailable
39
SEAL, DUST
164-23462-00-00
Unavailable
40
RACE, BALL 1
B6E-23411-00-00
Unavailable
41
BOLT, WASHER BASED
90105-12353-00
Unavailable
42
HOLDER, BRAKE HOSE
3JB-25886-00-00
Unavailable
43
BOLT, FLANGE
95817-06010-00
Unavailable
