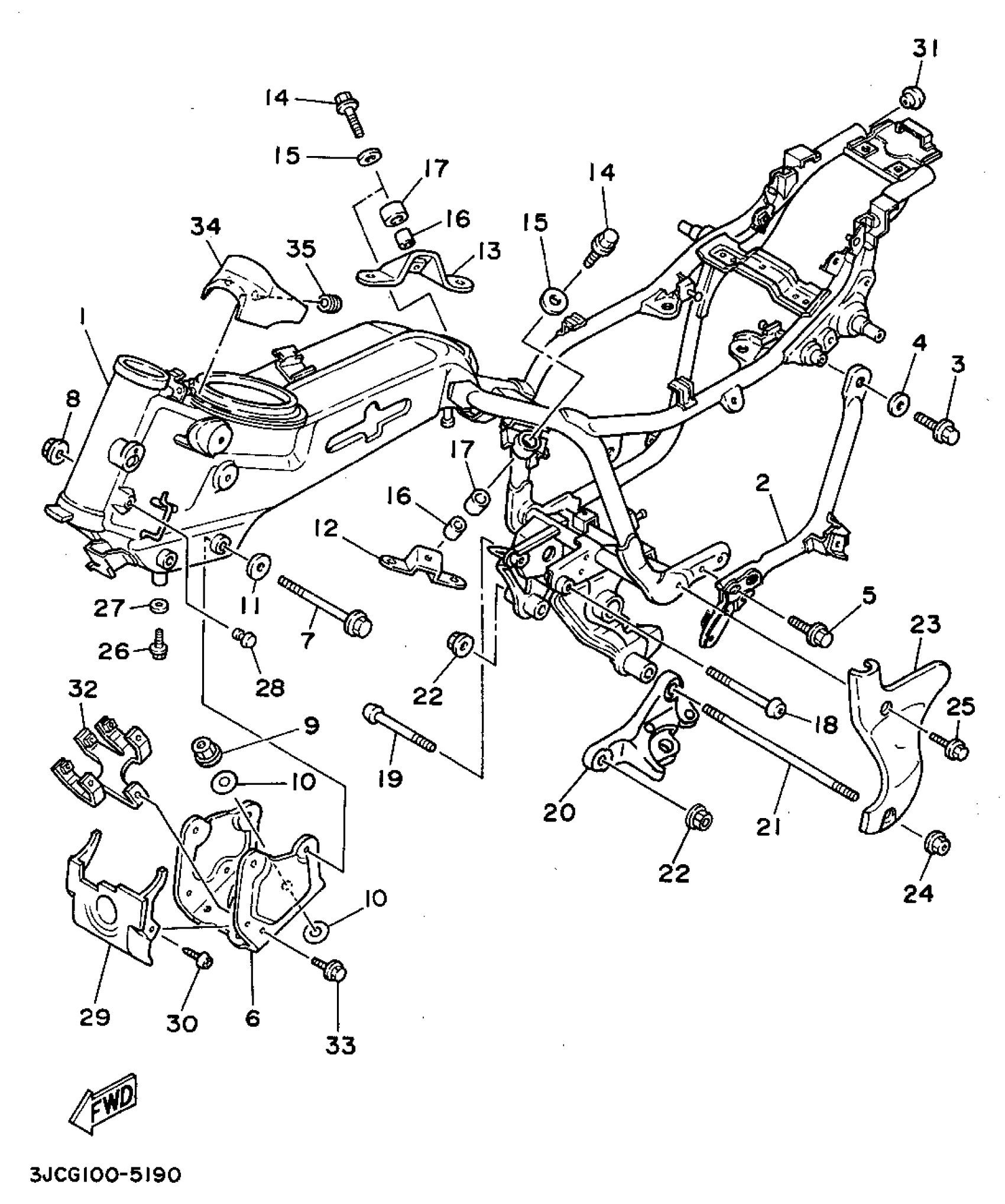

Yamaha XV535SGC (VIRAGO 535 CA) 3JCL 1995 FRAME Diagram
#
1
FRAME COMP.
3JC-21110-10-33
Unavailable
2
BACK STAY SUB COMP. 1
3JB-21105-00-33
Unavailable
3
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
6
STAY, ENGINE 3
2GV-21317-00-00
Unavailable
8
NUT
90179-10321-00
Unavailable
12
STAY, ENGINE 2
22U-21315-00-00
Unavailable
13
STAY, ENGINE 3
22U-21316-00-00
Unavailable
14
BOLT (4W3)
90105-10186-00
Unavailable
16
COLLAR (5E3)
90387-100E2-00
Unavailable
17
DAMPER, RUBBER 1
4X7-21485-00-00
Unavailable
18
SCREW
90149-10238-00
Unavailable
19
SCREW
90149-10239-00
Unavailable
20
BRACKET, SIDE STAND
4KU-21458-00-00
Unavailable
21
BOLT, STUD
90116-12495-00
Unavailable
22
NUT(3EF)
90179-12657-00
Unavailable
23
COVER, SIDE 5
2GV-2171E-00-00
Unavailable
24
NUT, CAP
95307-12800-00
Unavailable
25
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
26
BOLT, WASHER BASED HEXAGON 1L9
90105-06069-00
Unavailable
27
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
28
PLUG 288833190000
90338-07043-00
Unavailable
29
COVER 2
2GV-2139R-00-00
Unavailable
30
SCREW, PAN TAP.2
97707-60514-00
Unavailable
31
PLUG
3YJ-24481-00-00
Unavailable
32
BRACKET, COIL
2GV-21359-00-00
Unavailable
33
BOLT, FLANGE
95817-06012-00
Unavailable
34
COVER 2
3JB-2139R-00-00
Unavailable
35
GROMMET (17J)
90480-10334-00
Unavailable
