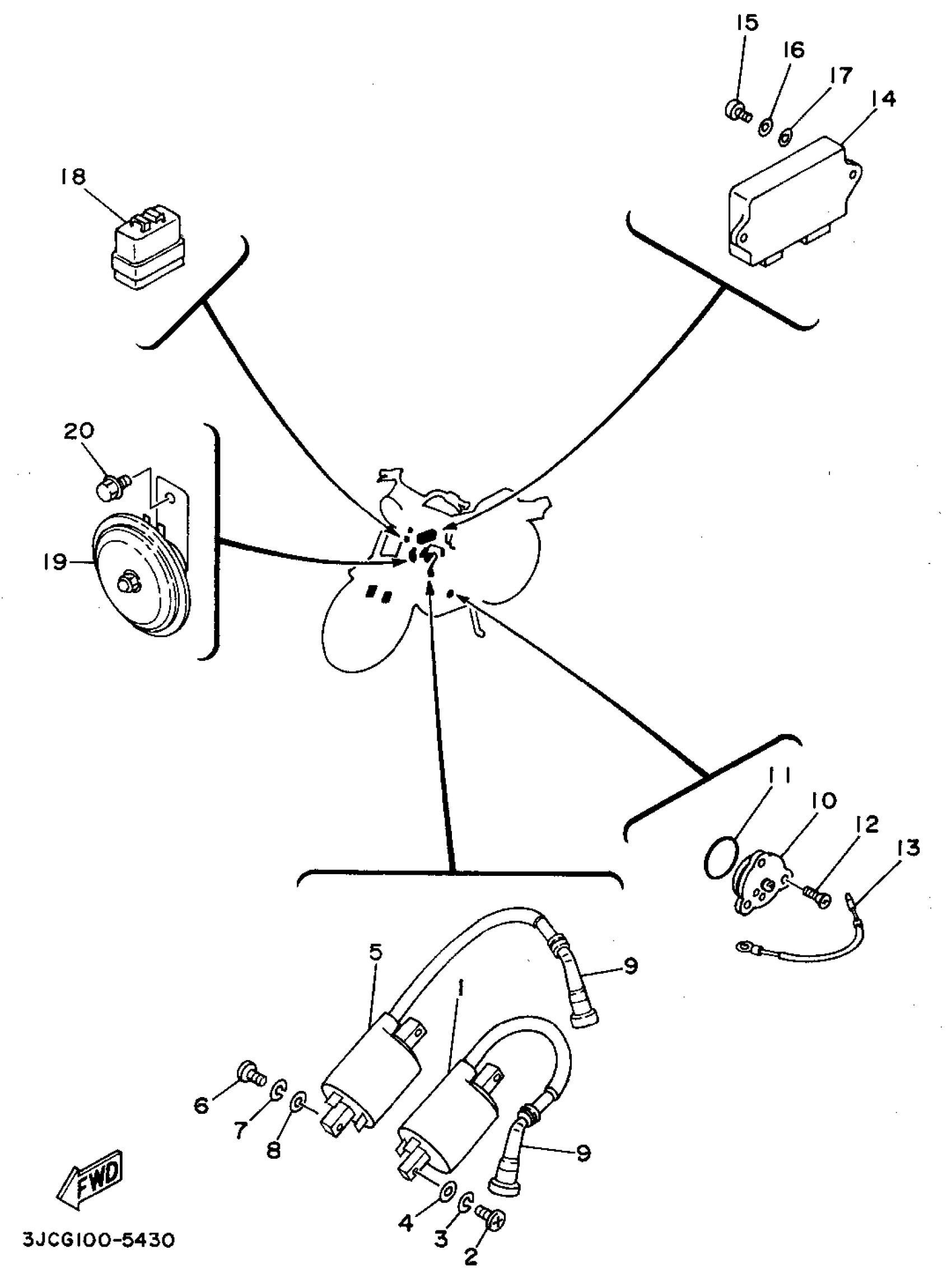

Yamaha XV535SGC (VIRAGO 535 CA) 3JCL 1995 ELECTRICAL 2 Diagram

#

Description
Price

1

IGNITION COIL ASSY

2GV-82310-21-00

Unavailable

2

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

3

WASHER(3SX)

92907-05100-00

$8.49

4

WASHER(1RW)

92907-05600-00

$3.78

5

IGNITION COIL ASSY

2GV-82310-21-00

Unavailable

6

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

7

WASHER(3SX)

92907-05100-00

$8.49

8

WASHER(1RW)

92907-05600-00

$3.78

9

PLUG CAP ASSY

4VW-82370-00-00

$69.99

10

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

11

O-RING (371)

93210-29196-00

$8.49

12

SCREW, FLAT

98707-05012-00

$1.71

13

WIRE, LEAD

2JX-82541-00-00

Unavailable

14

IGNITOR UNIT ASSEMBLY

3BT-82305-00-00

Unavailable

15

SCREW, PAN

98517-06020-00

$8.49

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

19

HORN

2KG-83371-00-00

Unavailable

19

HORN

4KG-83371-01-00

Unavailable

20

BOLT, FLANGE

95817-06010-00

Unavailable
