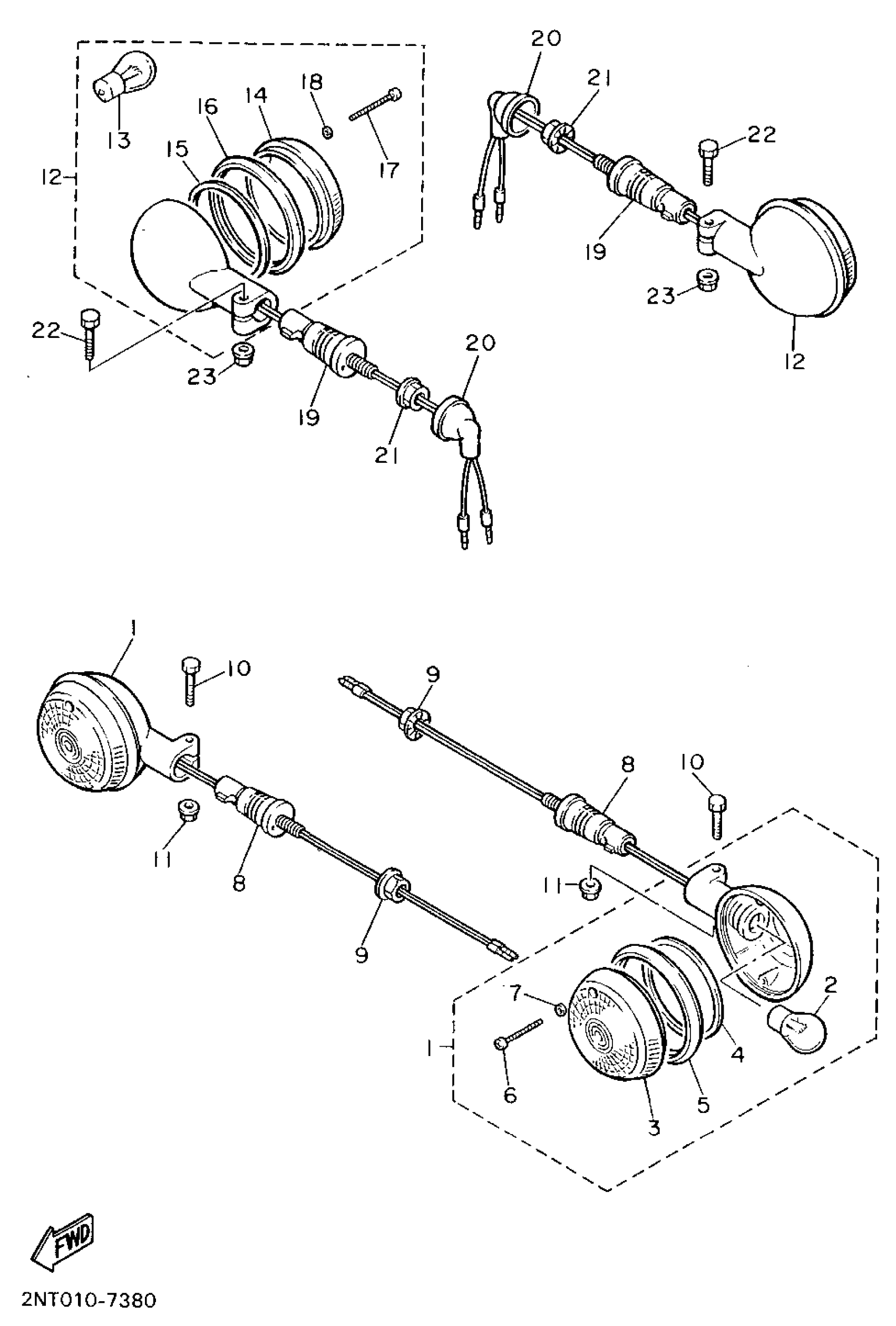

Yamaha XV535SFC (VIRAGO 535 CA) 3JCE 1994 FLASHER LIGHT TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$48.47

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

42X-83312-09-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

. LENS, RIM

42X-83363-00-00

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

WASHER, SPECIAL

3AA-84327-00-00

Unavailable

8

STAY, FLASHER 1

1AA-83318-00-00

$37.04

9

NUT(3DM)

95304-12600-00

$6.22

10

BOLT, HEXAGON

97017-06030-00

$2.80

11

NUT, FLANGE(7NB)

95780-06500-00

$1.88

12

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

$97.27

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

LENS, FLASHER

42X-83312-09-00

Unavailable

15

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

16

. LENS, RIM

42X-83363-00-00

Unavailable

17

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

18

WASHER, SPECIAL

3AA-84327-00-00

Unavailable

19

STAY, FLASHER 1

1AA-83318-00-00

$37.04

20

CAP

18G-83365-00-00

Unavailable

21

NUT(3DM)

95304-12600-00

$6.22

22

BOLT, HEXAGON

97017-06030-00

$2.80

23

NUT, FLANGE(7NB)

95780-06500-00

$1.88
