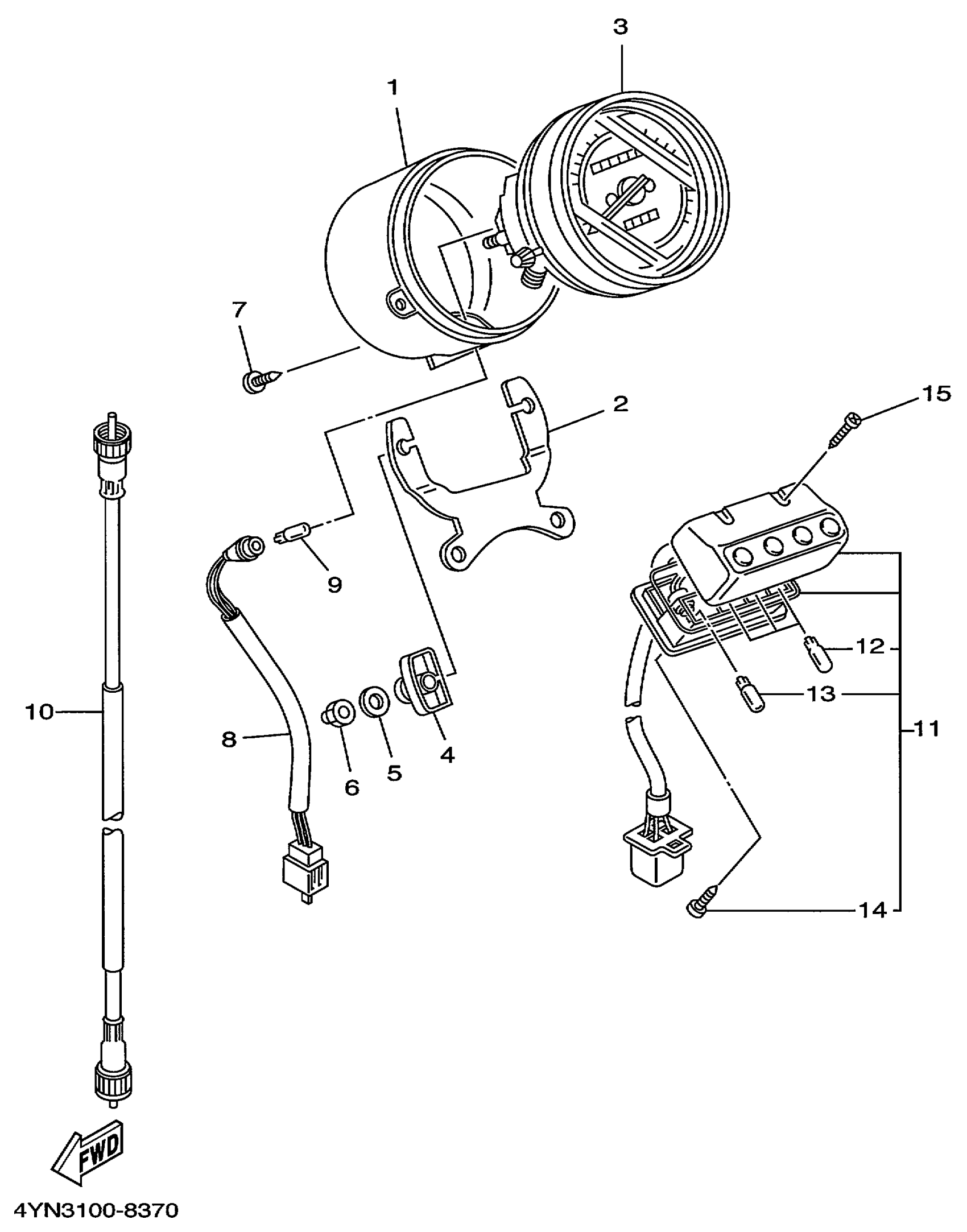

Yamaha XV535LC (VIRAGO 535 CA) 4YNA 1999 METER Diagram

#

Description
Price

1

COVER, SPEEDOMETER

1FK-83507-11-00

$41.99

2

BRACKET, METER

2GV-83519-00-00

Unavailable

3

METER ASSY

3BT-8351A-20-00

Unavailable

4

DAMPER

1FG-83523-00-00

Unavailable

5

WASHER(1RW)

92907-05600-00

$3.78

6

NUT, HEXAGON

95317-05600-00

$2.34

7

SCREW, TAPPING (10M)

90164-04009-00

$7.49

8

SOCKET CORD ASSEMBLY

2GV-83509-00-00

Unavailable

9

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

10

SPEEDOMETER CABLE ASSY

16M-83550-01-00

$41.99

11

PILOT LIGHT ASSY

5AJ-83530-00-00

Unavailable

12

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

13

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

14

SCREW, TAPPING

4AS-83616-10-00

Unavailable

15

SCREW, PAN HEAD

98517-04025-00

Unavailable
