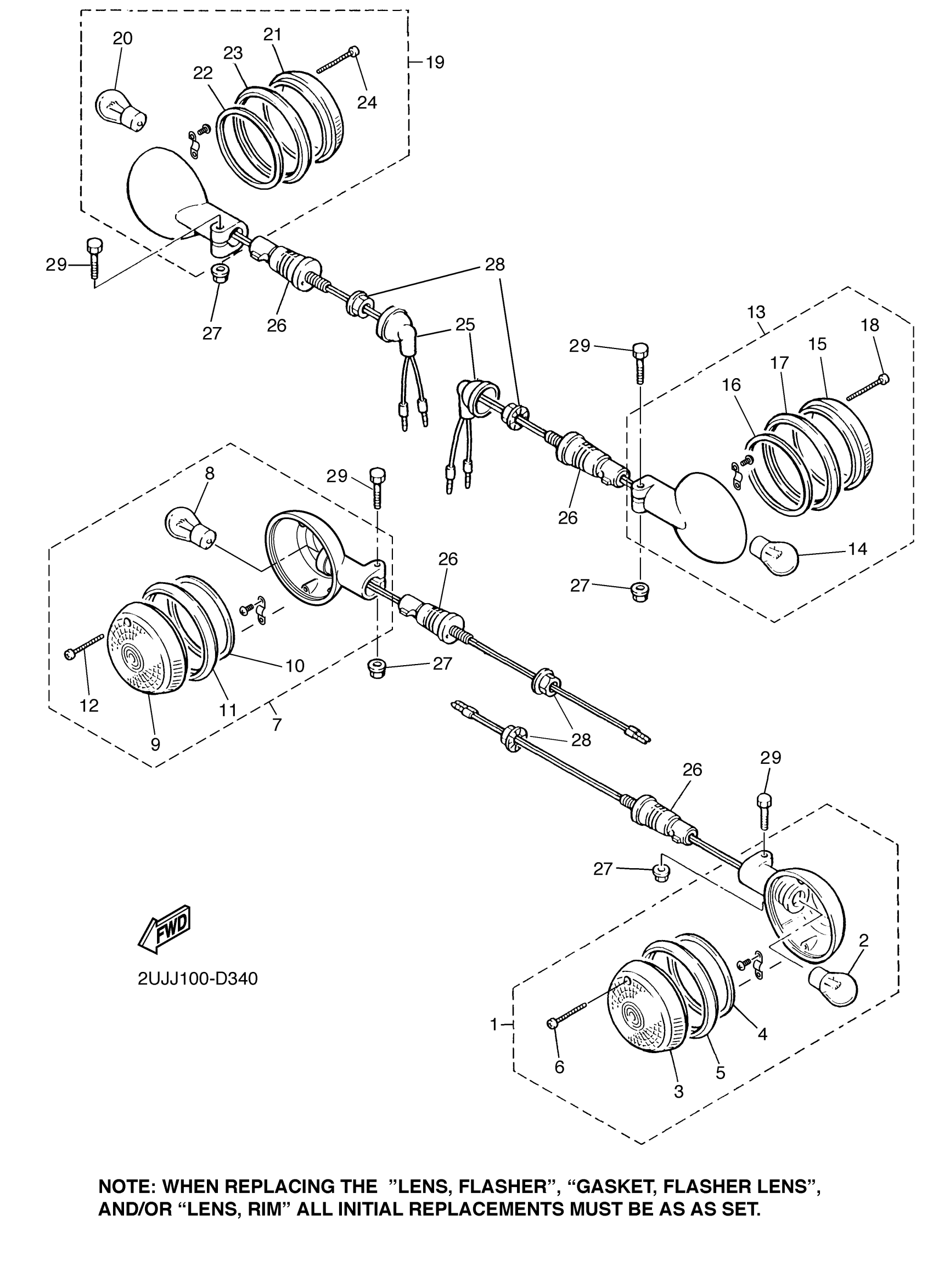

Yamaha XV535LC (VIRAGO 535 CA) 4YNA 1999 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$57.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-10-00

$15.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

42X-83320-K1-00

$56.99

8

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

9

LENS, FLASHER

42X-83312-20-00

$15.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

$131.99

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

42X-83312-20-00

$15.49

16

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

17

LENS, RIM

1D6-83363-10-00

$28.99

18

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

19

FLASHER LIGHT ASSY 2

42X-83340-K1-00

Unavailable

20

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

21

. LENS, FLASHER

42X-83312-00-10

Unavailable

22

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

23

LENS, RIM

1D6-83363-00-00

$28.99

24

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

25

CAP

18G-83365-00-00

Unavailable

26

STAY, FLASHER 1

1AA-83318-00-00

Unavailable

27

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

28

NUT, HEXAGON

95337-12600-00

Unavailable

29

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable
