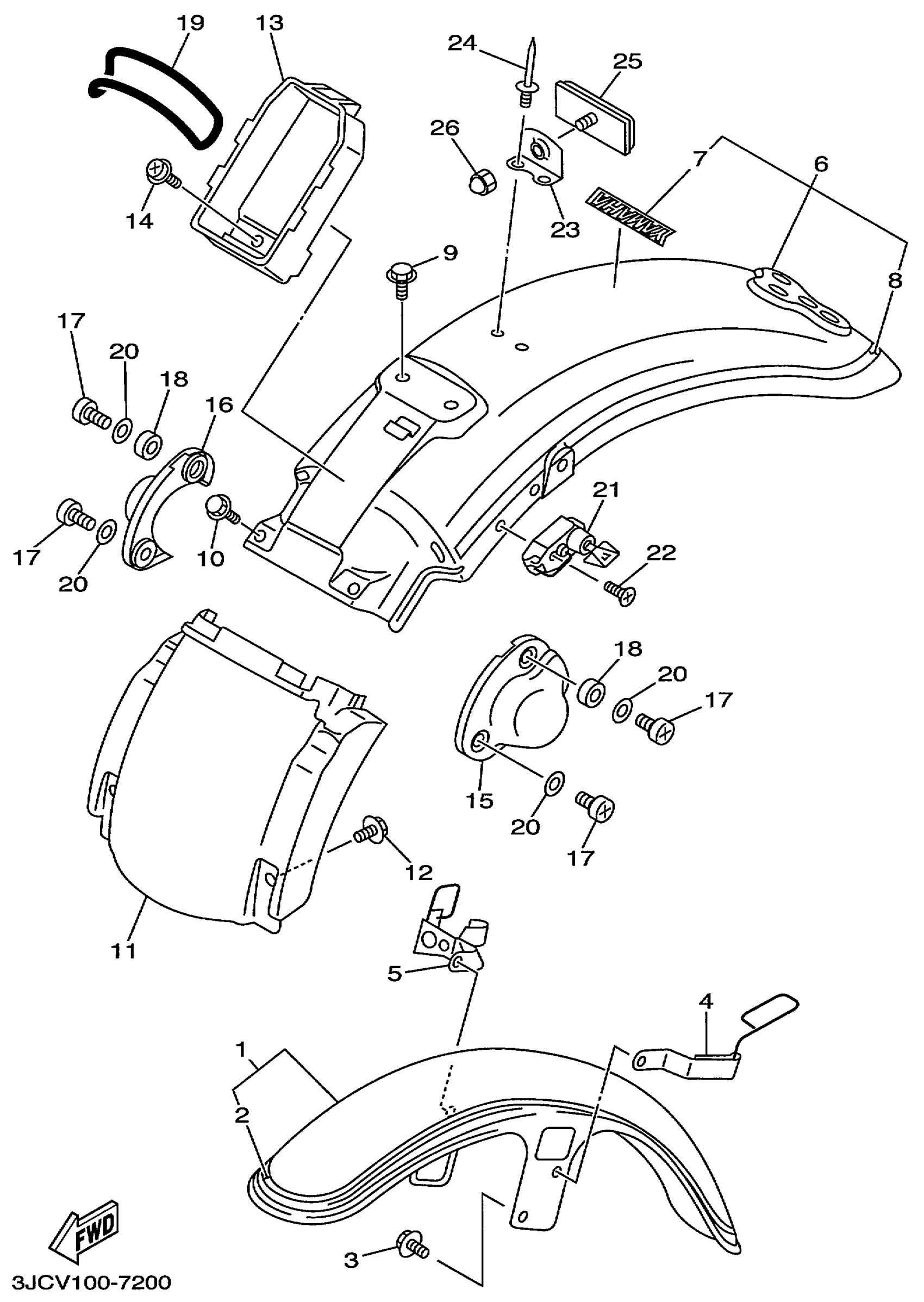

Yamaha XV535LC (VIRAGO 535 CA) 4YNA 1999 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSEMBLY (BLACK 2)

2GV-Y2150-81-4B

Unavailable

2

. GRAPHIC SET, FRONT FENDER (BLACK 2)

4KU-21570-40-00

Unavailable

3

BOLT, SMALL FLANGE

95027-08012-00

$9.49

4

HOLDER, WIRE 1

2GV-21597-00-00

Unavailable

5

HOLDER, WIRE 2

4FT-21598-00-00

Unavailable

6

REAR FENDER C0MP. (BLACK 2)

3JB-Y2161-80-4B

Unavailable

7

EMBLEM, YAMAHA

99247-00080-00

$15.99

8

. GRAPHIC SET, REAR FENDER (BLACK 2)

4KU-2165A-40-00

Unavailable

9

BOLT, FLANGE

95817-08012-00

$5.49

10

BOLT, FLANGE

95817-06010-00

$4.73

11

GUARD, MUD

2GV-21629-00-4B

Unavailable

12

BOLT, WITH WASHER(1JK)

90119-06123-00

$7.49

13

BOX

2GV-2160E-00-00

Unavailable

14

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable

15

COVER, REAR FENDER 1

2GV-2163A-00-00

Unavailable

16

COVER, REAR FENDER 2

2GV-2163E-00-00

Unavailable

17

SCREW, BINDING HEAD (3XW7)

98904-08014-00

Unavailable

18

SPACER(2GV)

90560-08326-00

Unavailable

19

O-RING (2H7)

93210-71360-00

Unavailable

20

WASHER, PLAIN

92903-08200-00

Unavailable

21

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

22

SCREW (4G1)

90149-06154-00

Unavailable

23

BRACKET, REFLECTOR

3JB-21641-00-00

Unavailable

24

RIVET, BLIND(41R)

90267-48104-00

Unavailable

25

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

26

NUT, CAP

95307-05800-00

Unavailable
