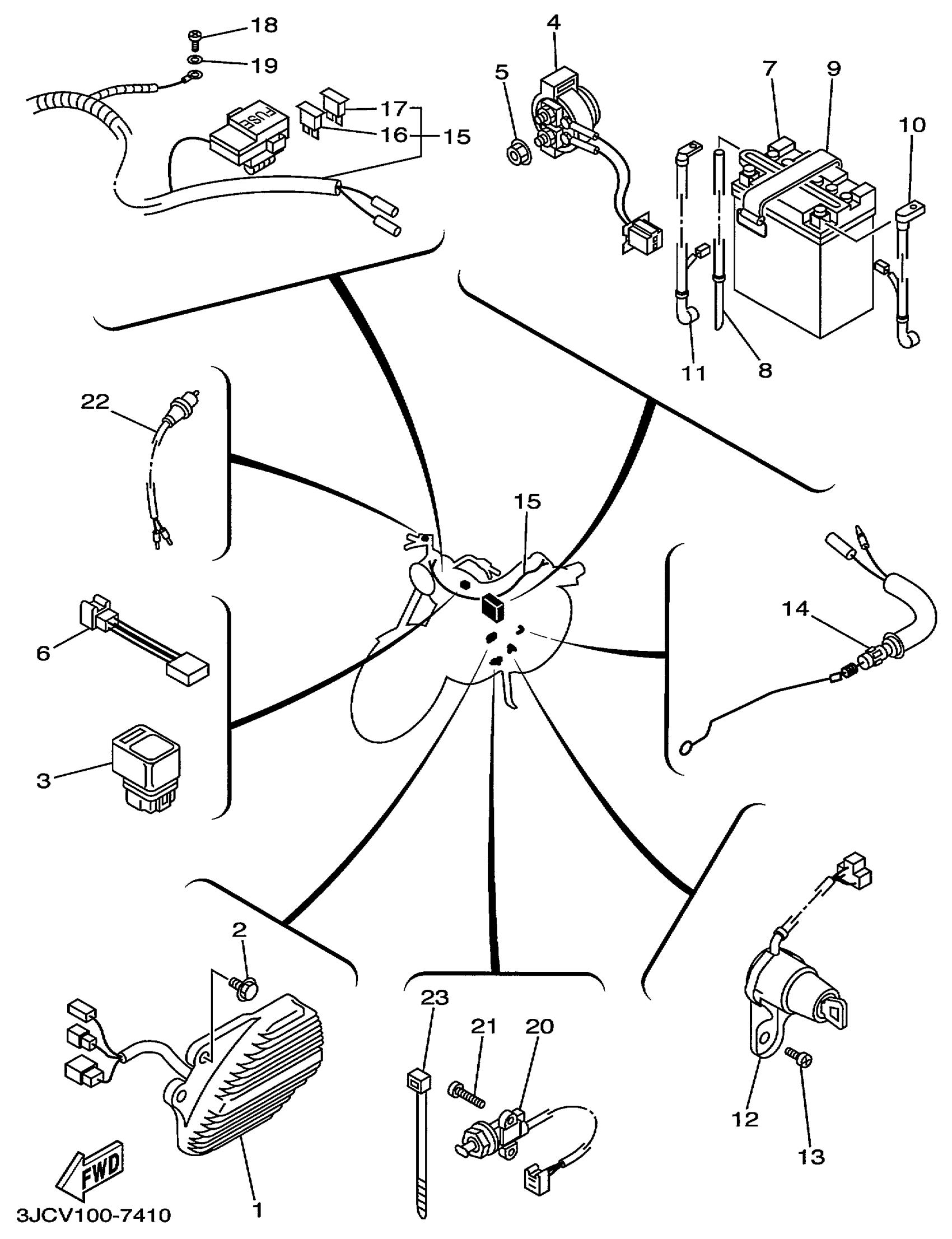

Yamaha XV535LC (VIRAGO 535 CA) 4YNA 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

3JB-81960-01-00

Unavailable

2

BOLT, FLANGE

95817-06012-00

$1.43

3

RELAY ASSY

25G-81950-02-00

$47.99

4

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

5

NUT, FLANGE(4MV)

95707-06500-00

$1.23

6

RECTIFIER 2

4H7-81980-M0-00

Unavailable

7

YB12ALA2 YUASA BATTERY

YB1-2ALA2-00-00

Unavailable

8

HOSE

90445-08719-00

Unavailable

9

BAND,BATTERY

7H3-82131-00-00

$17.49

10

WIRE, PLUS LEAD

2GV-82115-00-00

Unavailable

11

WIRE, MINUS LEAD

2GV-82116-00-00

Unavailable

12

MAIN SWITCH ASSEMBLY

3JC-82510-00-00

Unavailable

13

BOLT, BUTTON

92017-08025-00

$8.49

14

STOP SWITCH ASSEMBLY

2GV-82530-10-00

Unavailable

15

WIRE HARNESS ASSEMBLY

3JC-82590-25-00

Unavailable

16

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

17

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

18

SCREW, PAN

98507-06010-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

SWITCH, SIDE STAND

3LD-82566-71-00

Unavailable

21

SCREW, PAN HEAD

98507-05014-00

Unavailable

22

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable
