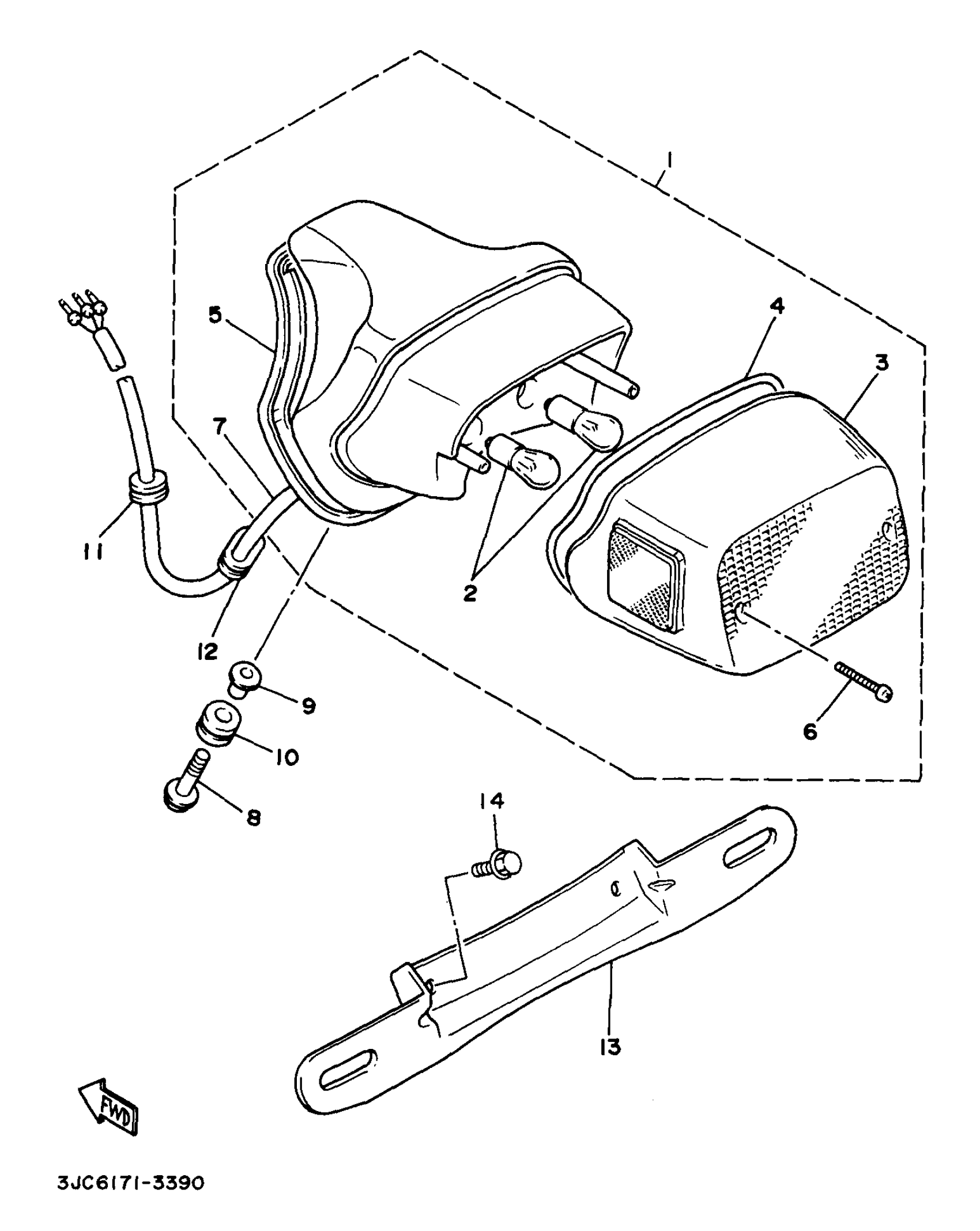

Yamaha XV535KC (VIRAGO 535 CA) 1998 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSEMBLY

2GV-84700-A0-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, TAILLIGHT

42X-84721-61-00

Unavailable

4

SEAL

1VJ-14462-00-00

$18.49

5

GASKET, TAILLIGHT

1RM-84704-00-00

$46.99

6

SCREW, PAN TAP.2 SLIT

97707-40625-00

$8.49

7

CORD,TAILLIGHT

461-84517-00-00

Unavailable

8

BOLT, WITH WASHER(2WG)

90119-06172-00

$10.49

9

COLLAR (J10)

90387-06026-00

$8.49

10

GROMET (3X3)

90480-14229-00

$8.49

11

GROMMET(2UJ)

90480-16501-00

$5.60

12

GROMMET (438)

90480-15061-00

$8.49

13

BRACKET, LICENSE

1RM-84751-00-00

Unavailable

14

BOLT, FLANGE

95817-06016-00

$2.75
