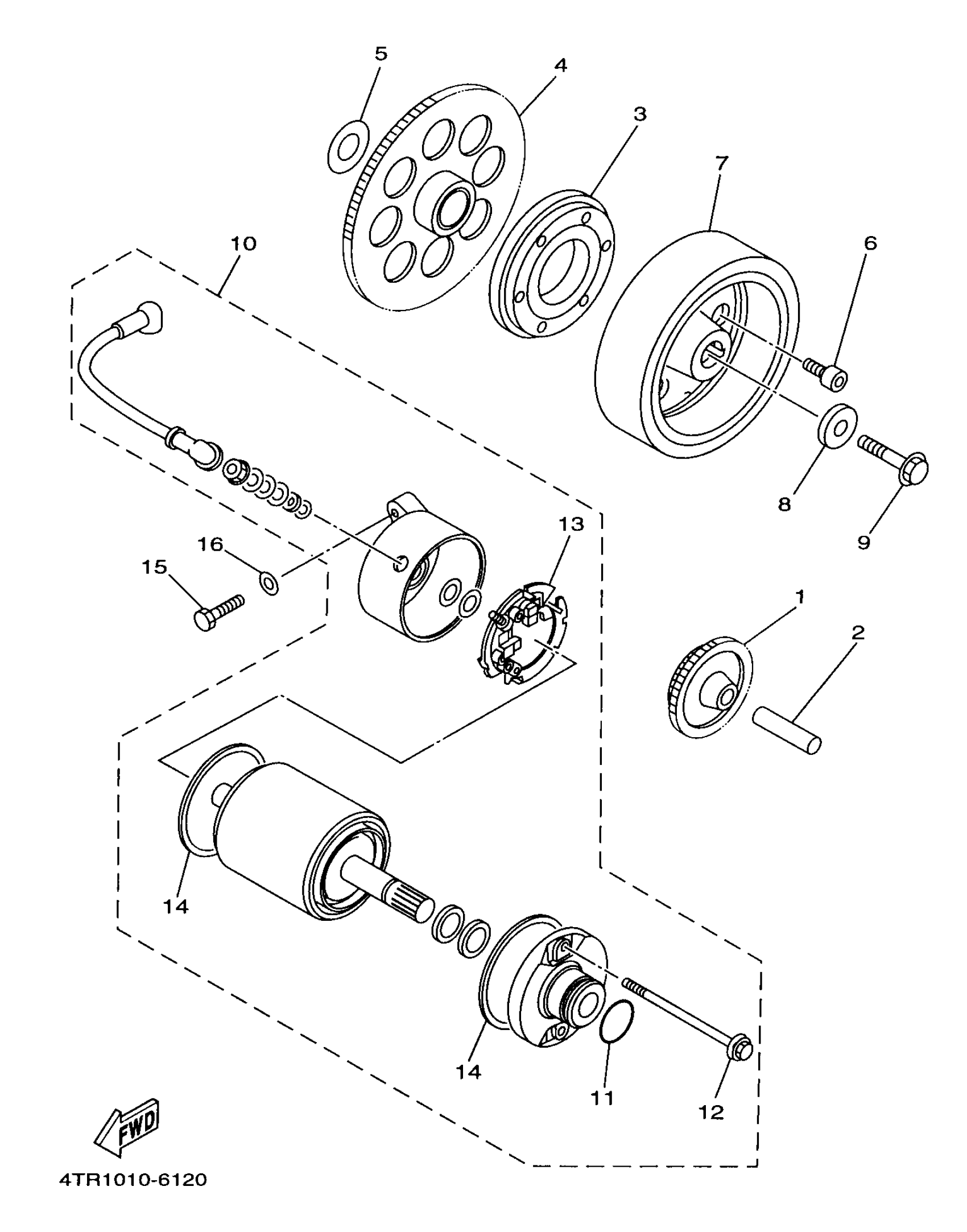

Yamaha XV535KC (VIRAGO 535 CA) 1998 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

22U-15512-00-00

Unavailable

2

SHAFT 1

5H0-15521-00-00

Unavailable

3

STARTER ONE-WAY ASSY

4TR-15590-00-00

$294.99

4

GEAR, IDLER 2

4VR-15517-01-00

Unavailable

5

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

6

BOLT, SOCKET

91317-08020-00

$8.49

7

ROTOR ASSY

4TR-81450-00-00

Unavailable

8

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

9

BOLT, WASHER BASED (4H7)

90105-10152-00

$11.49

10

STARTING MOTOR UNIT

3JB-81890-00-00

Unavailable

11

O-RING (437)

93210-24235-00

$7.49

12

BOLT

3HE-81826-00-00

Unavailable

13

BRUSH HOLDER ASSY

3KS-81840-00-00

Unavailable

14

GASKET

35C-81844-00-00

Unavailable

15

BOLT

97070-06025-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable
