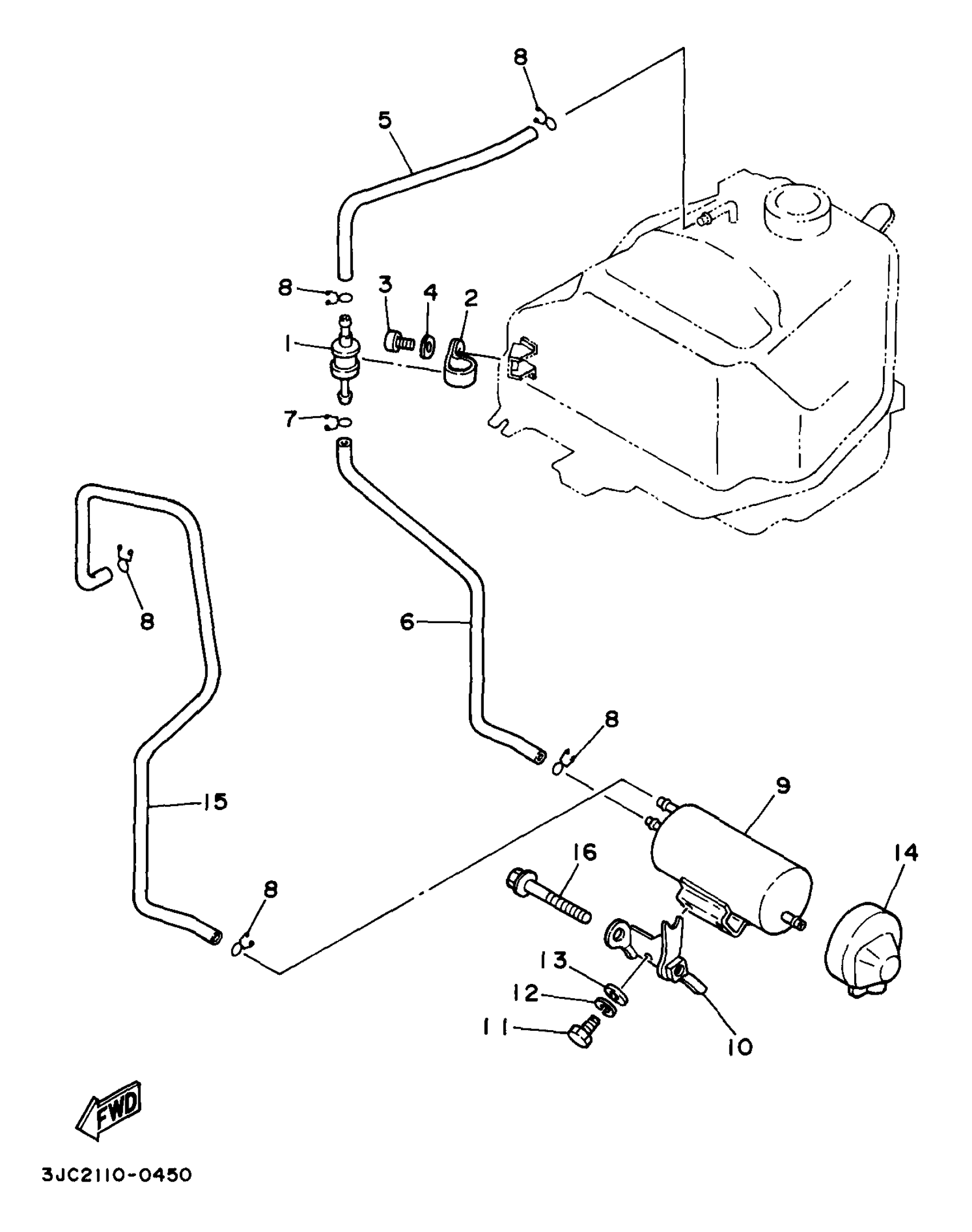

Yamaha XV535KC (VIRAGO 535 CA) 1998 FUEL TANK 2 KC ONLY Diagram

#

Description
Price

1

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

2

CLAMP

90464-15014-00

$3.28

3

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

4

WASHER(1RW)

92907-05600-00

$3.78

5

PIPE 3

3JC-24313-02-00

Unavailable

6

PIPE 4

2JU-24314-00-00

Unavailable

7

CLIP

90467-090A2-00

$4.41

8

CLIP

90467-100A1-00

$7.49

9

CANISTER ASSY

2JU-24170-00-00

Unavailable

10

HOLDER

2JU-2419A-00-00

Unavailable

11

BOLT, HEXAGON

97017-06012-00

$3.76

12

WASHER, SPRING

92907-06100-00

$4.25

13

WASHER(6TA)

92907-06600-00

$2.72

14

COVER, CANISTER

2JU-2419E-00-00

Unavailable

15

PIPE 5

2JU-24315-00-00

Unavailable

16

BOLT,FLANGE

95817-10065-00

Unavailable
