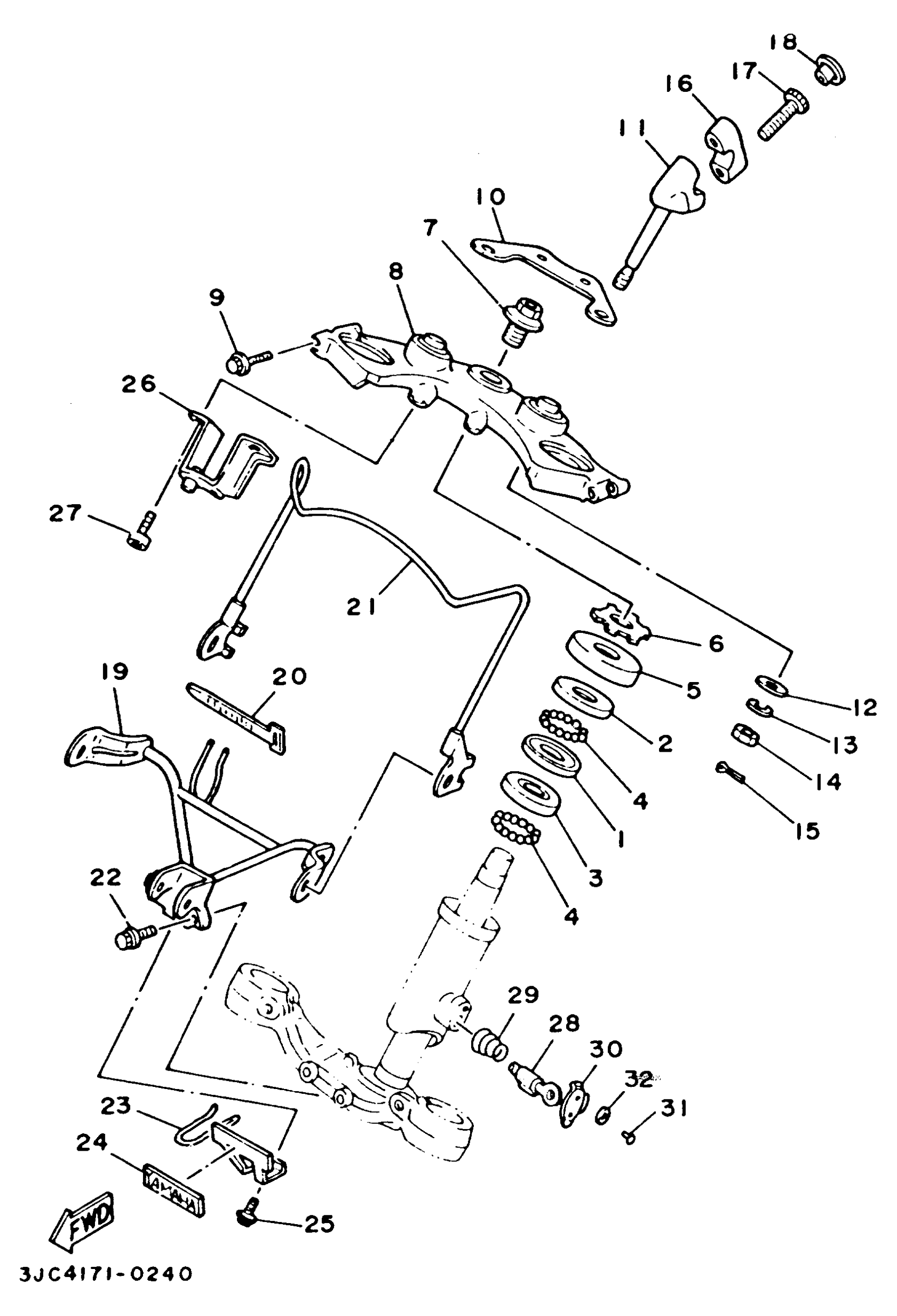

Yamaha XV535EC (VIRAGO 535 CA) 3JC8 1993 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$13.49

2

RACE, BALL 1

4FP-F3411-20-00

$9.99

3

RACE,BALL 2

4FP-F3412-10-00

Unavailable

4

BALL

93501-04011-00

$8.49

5

COVER, BALL RACE

136-23415-00-00

$8.99

6

NUT

90179-25004-00

$24.99

7

BOLT (2A2)

90105-14102-00

$5.60

8

CROWN, HANDLE

2GV-W2341-00-38

Unavailable

9

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

10

STAY 2

2GV-2317F-00-00

Unavailable

11

HOLDER, HANDLE LOWER

42X-23442-01-38

Unavailable

12

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

NUT (682)

95380-10700-00

Unavailable

15

CLIP 136253750000

90468-12006-00

$8.49

16

HOLDER, HANDLE UPPER

4H7-23441-01-38

Unavailable

17

BOLT,SOCKET

91314-08030-00

Unavailable

18

PLUG(42X)

90338-08163-00

Unavailable

19

STAY,HEADLIGHT

99999-03056-00

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable

21

STAY, LIGHT GUARD

3DM-23164-00-00

Unavailable

22

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

23

STAY 3

2GV-2317M-00-00

Unavailable

24

EMBLEM, YAMAHA

3WF-2153E-61-00

Unavailable

25

BOLT, FLANGE(3BM)

95024-06008-00

Unavailable

26

STAY

2GV-2317E-00-00

Unavailable

27

BOLT,SOCKET

91317-06016-00

Unavailable

28

STEERING LOCK ASSY

2A6-23408-00-00

Unavailable

29

SPRING, CONICAL (1E6)

90502-09024-00

Unavailable

30

CAP, HANDLE LOCK

3DM-23484-00-00

Unavailable

31

RIVET 214234830000

90269-04003-00

Unavailable

32

WASHER, CONICAL SPRING (3J3)

90208-04029-00

Unavailable
