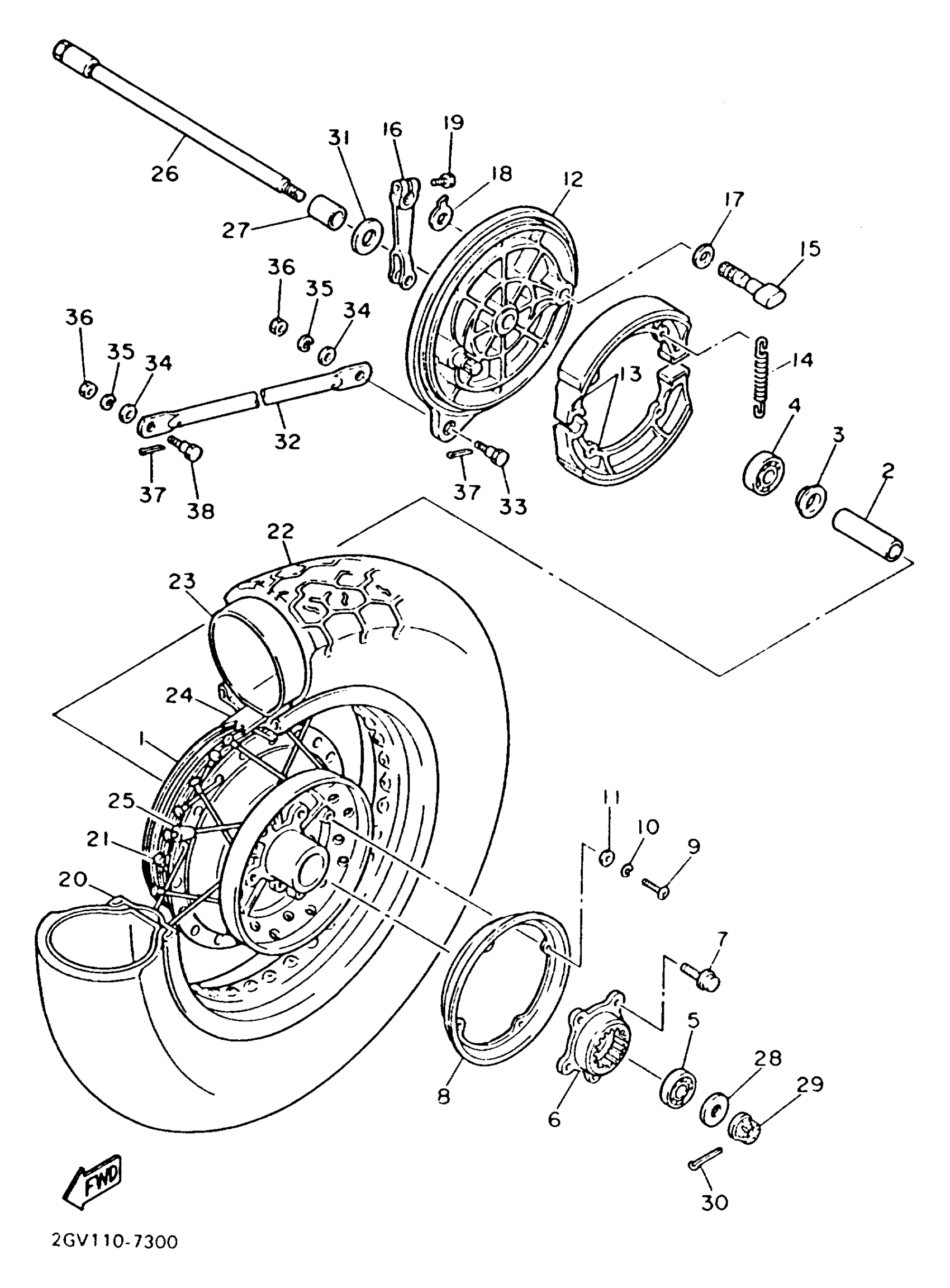

Yamaha XV535EC (VIRAGO 535 CA) 3JC8 1993 REAR WHEEL Diagram
#
1
HUB, REAR
2GV-25311-00-35
Unavailable
2
SPACER, BEARING
2GV-25317-00-00
Unavailable
4
BEARING(2GV)
93306-30209-00
Unavailable
6
CLUTCH, HUB
2GV-25366-00-00
Unavailable
8
SEAL, HUB DUST
2GV-25319-00-00
Unavailable
12
PLATE, BRAKE SHOE
2NT-25321-00-00
Unavailable
16
LEVER, CAM SHAFT
214-25355-00-00
Unavailable
17
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
18
PLATE, INDICATOR
4H7-2533A-02-00
Unavailable
19
BOLT, HEXAGON (462)
90101-06291-00
Unavailable
20
RIM 3.00
94430-15544-00
Unavailable
21
SPOKE SET, REAR
2GV-25304-02-00
Unavailable
22
140/90-15 BS
94114-156U2-00
Unavailable
23
TUBE (140-15)
94214-15223-00
Unavailable
24
BAND, RIM (3.00-15)
94330-15134-00
Unavailable
25
BALANCER, WHEEL
3HT-25398-00-00
Unavailable
26
AXLE, WHEEL
2GV-25381-00-00
Unavailable
27
COLLAR
90387-157R0-00
Unavailable
28
WASHER, PLATE
90201-14022-00
Unavailable
29
NUT, CASTLE (4V7)
90171-14031-00
Unavailable
30
PIN, COTTER
91490-30030-00
Unavailable
31
COLLAR, WHEEL
22U-25377-00-00
Unavailable
32
BAR, TENSION
42X-25371-02-00
Unavailable
33
BOLT (537 TENSION BAR)
90109-08406-00
Unavailable
34
.. WASHER, PLATE
92990-08600-00
Unavailable
35
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
36
. NUT
95380-08700-00
Unavailable
37
PIN, COTTER
91490-20025-00
Unavailable
38
BOLT (183-25378-00)
90109-08368-00
Unavailable
