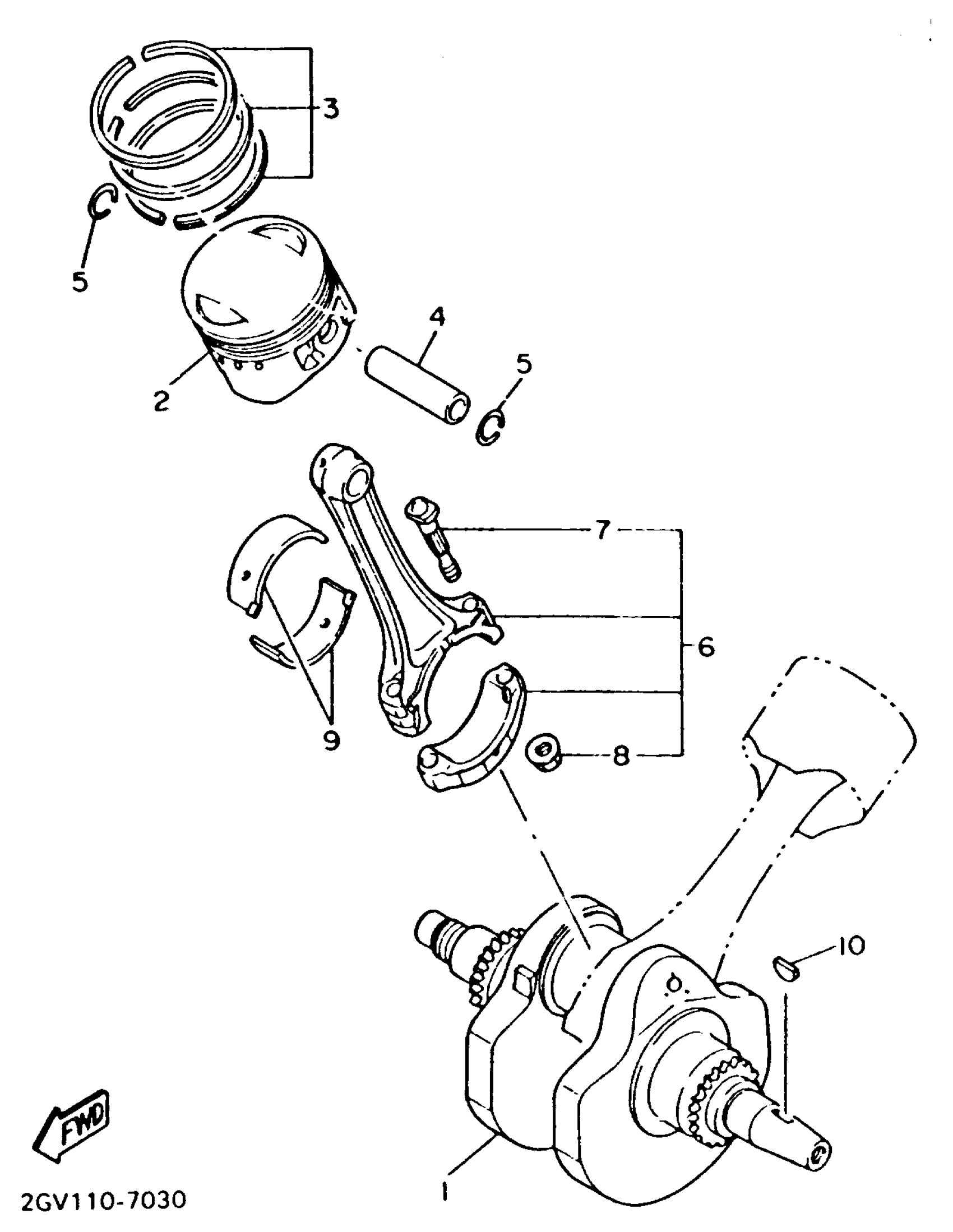

Yamaha XV535EC (VIRAGO 535 CA) 3JC8 1993 CRANKSHAFT PISTON Diagram

CRANKSHAFT

22U-11411-00-00

Unavailable

PISTON (STD)

2GV-11631-00-C0

Unavailable

PISTON (0.50MM O/S)

2GV-11636-00-00

Unavailable

PISTON (1.00MM O/S)

2GV-11638-00-00

Unavailable

PISTON RING SET (STD)

2GV-11610-00-00

Unavailable

PISTON RING SET (2ND O/S)

2GV-11610-20-00

$57.99

PISTON RING SET (4TH O/S)

2GV-11610-40-00

Unavailable

PIN, PISTON

22U-11633-01-00

$16.49

CIRCLIP (2F1)

93450-19052-00

$7.49

CONNECTING ROD ASSEMBLY

22U-11650-00-00

Unavailable

BOLT, CONNECTING ROD

22U-11654-00-00

$11.99

NUT (11H)

90179-08327-00

$9.49

PLANE BEARING, CONNECTING ROD

22U-11656-00-00

$29.99

PLANE BEARING, CONNECTING ROD

22U-11656-10-00

$31.99

PLANE BEARING, CONNECTING ROD

22U-11656-20-00

$27.99

PLANE BEARING, CONNECTING ROD

22U-11656-30-00

Unavailable

KEY, WOODRUFF

90280-05001-00

Unavailable
