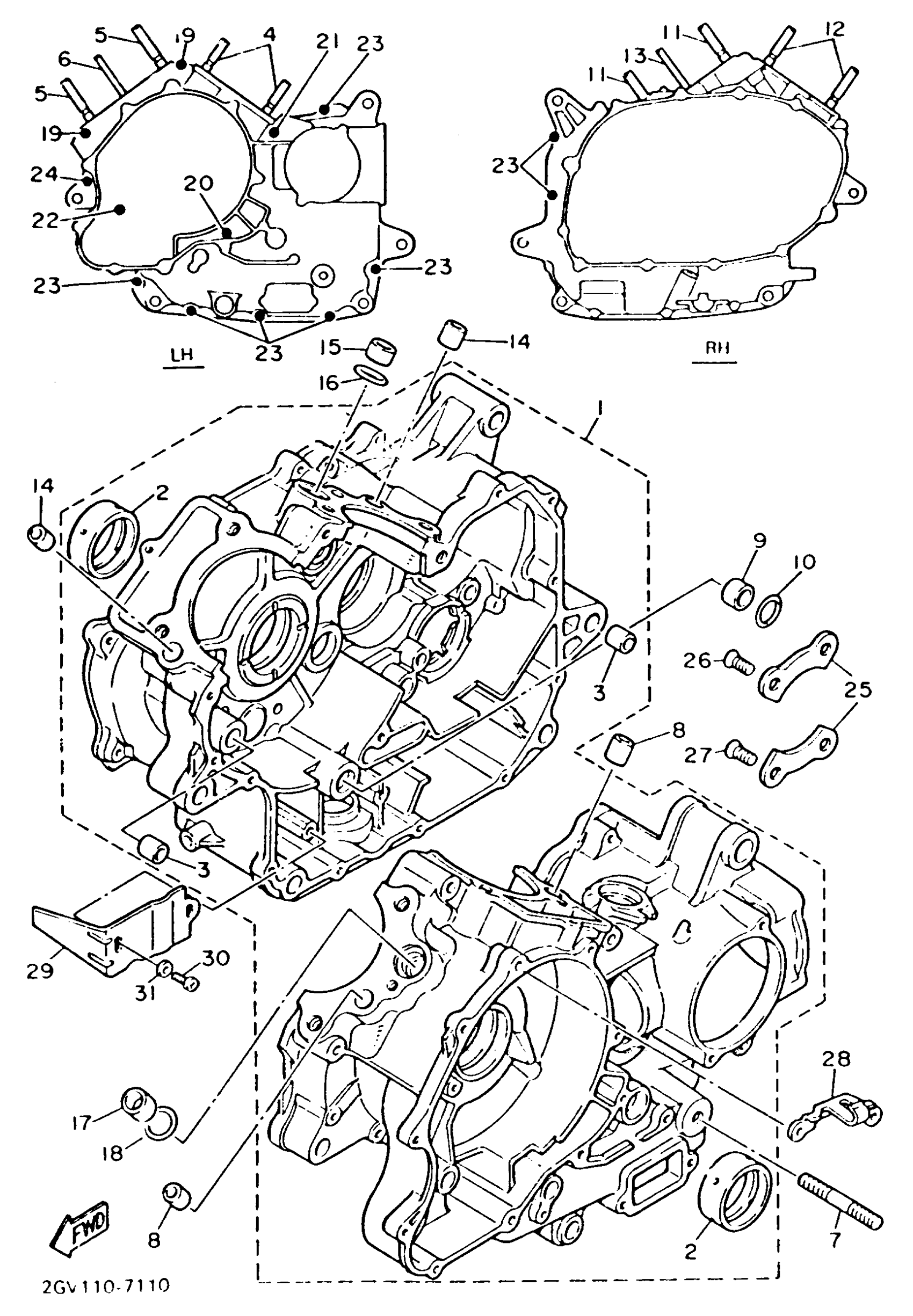

Yamaha XV535EC (VIRAGO 535 CA) 3JC8 1993 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
2GV-15100-04-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
22U-11416-90-00
Unavailable
4
BOLT, STUD
90116-10406-00
Unavailable
7
BOLT, STUD 3
95617-10680-00
Unavailable
11
BOLT, STUD
90116-10406-00
Unavailable
19
BOLT, SOCKET
91314-08060-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-08003-00
Unavailable
21
BOLT
91311-08100-00
Unavailable
22
BOLT, SOCKET
91314-06095-00
Unavailable
23
BOLT, SOCKET
91314-06045-00
Unavailable
24
BOLT,SOCKET
91314-06055-00
Unavailable
25
PLATE, BEARING COVER
11H-15383-02-00
Unavailable
26
SCREW, COUNTERSUNK (22U)
90151-08022-00
Unavailable
27
SCREW
90149-08013-00
Unavailable
28
HOLDER, CLUTCH CABLE
22U-15441-02-00
Unavailable
29
PLATE, BUFFLE 1
22U-15123-00-00
Unavailable
30
SCREW, PAN
98517-06012-00
Unavailable
31
WASHER, PLAIN (646)
92990-06600-00
Unavailable
