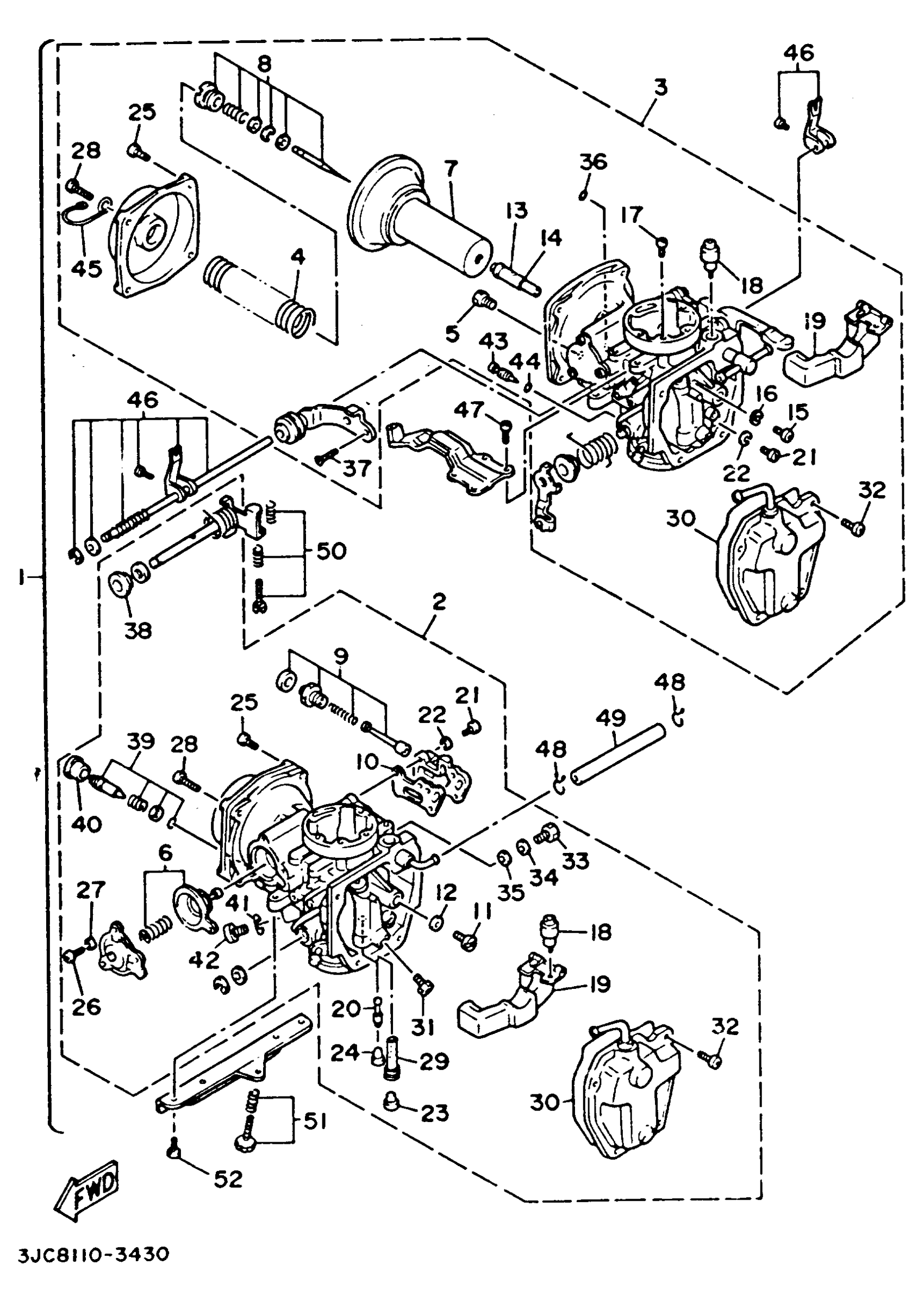

Yamaha XV535EC (VIRAGO 535 CA) 3JC8 1993 CARBURETOR CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY

[3J-C1490-00-10

Unavailable

2

CARBURETOR ASSY 1

3JC-14901-01-00

Unavailable

3

CARBURETOR ASSY 2

3JC-14902-01-00

Unavailable

4

SPRING, DIAPHRAGM

1FK-14933-00-00

$36.99

5

JET, MAIN (#170)

3G2-14231-34-00

$14.49

6

DIAPHRAGM SET 5

22U-1490H-00-00

Unavailable

7

DIAPHRAGM ASSY

41R-14940-09-00

Unavailable

8

.. NEEDLE SET

3JC-1490J-00-00

Unavailable

8

.. NEEDLE SET

3JC-1490J-10-00

Unavailable

9

STARTER SET

11H-1410A-00-00

$105.99

10

GASKET

3JB-14536-00-00

Unavailable

11

SCREW

22U-14565-00-00

Unavailable

12

WASHER,MAIN JET

137-14153-00-00

$7.99

13

NOZZLE, MAIN

2JU-14141-90-00

Unavailable

14

O-RING

22U-14147-00-00

$7.99

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

JET, MAIN (# 70)

3G2-14231-14-00

Unavailable

18

NEEDLE VALVE ASSY

1FK-14190-15-00

Unavailable

19

FLOAT

1FK-14985-00-00

Unavailable

20

JET, PILOT (# 35)

4G0-14142-35-A0

Unavailable

21

SCREW, PAN HEAD

98511-04012-00

Unavailable

22

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

23

CAP

22U-14968-00-00

Unavailable

24

CAP

22V-14968-00-00

Unavailable

25

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

26

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

28

SCREW, PAN HEAD(1FK)

90157-05050-00

Unavailable

29

.. PIPE, MAIN BREED

2JU-1414G-00-00

Unavailable

30

O-RING

22V-14147-00-00

Unavailable

31

JET, MAIN (#135)

3G2-14231-27-00

Unavailable

31

JET,MAIN #137.5

3G2-1423A-78-00

Unavailable

32

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

33

.. PLUG, SCREW

341-14991-00-00

Unavailable

34

.. WASHER

26H-14952-00-00

Unavailable

35

WASHER

22U-14952-00-00

Unavailable

36

O-RING (248)

93210-03119-00

Unavailable

37

SCREW,FLAT

98707-06010-00

Unavailable

38

.. WASHER

341-14954-00-00

Unavailable

39

PILOT SCREW SET

12R-14105-00-00

Unavailable

40

CAP

1HX-14991-00-00

Unavailable

41

GASKET

127-14198-00-00

Unavailable

42

.. SCREW, PAN HEAD

98502-08014-00

Unavailable

43

SCREW

2L1-14191-00-00

Unavailable

44

O-RING

214-14147-00-00

Unavailable

45

.. CLIP

2JU-14937-00-00

Unavailable

46

. STARTER LEVER SET, 1

3JB-1490L-00-00

Unavailable

47

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

48

CLIP

90467-100A1-00

Unavailable

49

HOSE

31H-14987-00-00

Unavailable

50

. STOP SCREW SET

22U-1490K-00-00

Unavailable

51

. THROTTLE SCREW SET

22U-14103-00-00

Unavailable

52

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable
