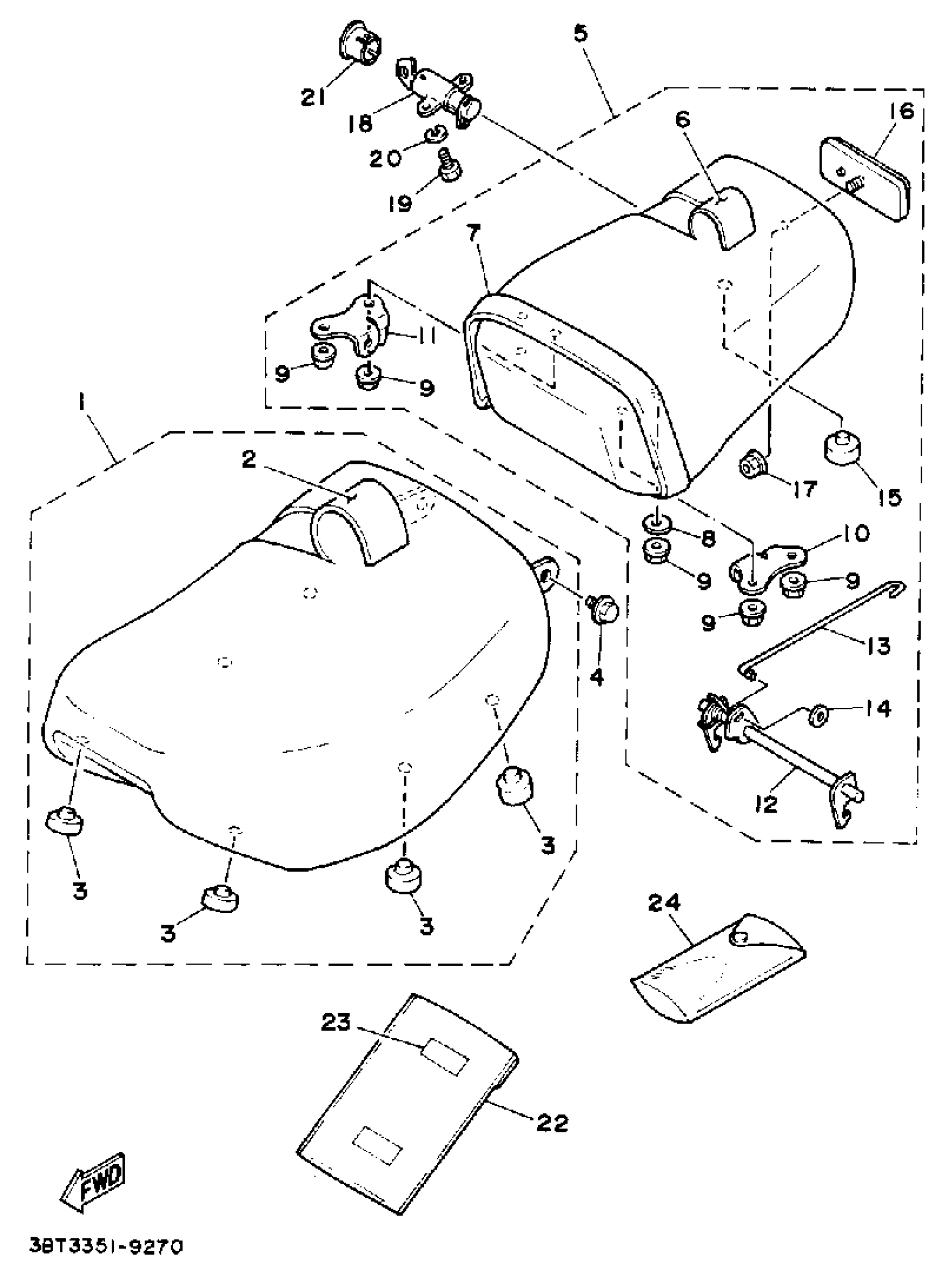

Yamaha XV535AC (VIRAGO 535 CA) 1990 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

3JB-24710-00-00

Unavailable

2

. COVER, SINGLE SEAT

3JB-24711-00-00

Unavailable

3

DAMPER

18A-24724-00-00

$8.99

4

BOLT, WITH WASHER(55K)

90119-06114-00

$8.49

5

TANDEM SEAT ASSEMBLY

3JB-24750-00-00

Unavailable

6

. COVER, TANDEM SEAT

3JB-24751-00-00

Unavailable

7

BAND,SEAT

3JB-24734-00-00

Unavailable

8

WASHER, PLATE

90201-06380-00

$0.60

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

. BRACKET, SEAT

3JB-24718-00-00

Unavailable

11

. BRACKET, SEAT

3JB-24728-00-00

Unavailable

12

. LEVER, SEAT

3JB-24776-00-00

Unavailable

13

. ROD, CONNECTING

3JB-2478F-00-00

Unavailable

14

WASHER,PLAIN

92990-03200-00

$0.33

15

DAMPER

18A-24724-00-00

$8.99

16

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

17

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

18

SEAT LOCK ASSY

47X-24705-00-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

COVER

51Y-24796-00-00

Unavailable

22

POUCH

4K5-28186-00-00

Unavailable

23

HOOK

4K5-2814E-10-00

Unavailable

24

TOOL KIT

2GV-28100-00-00

Unavailable
