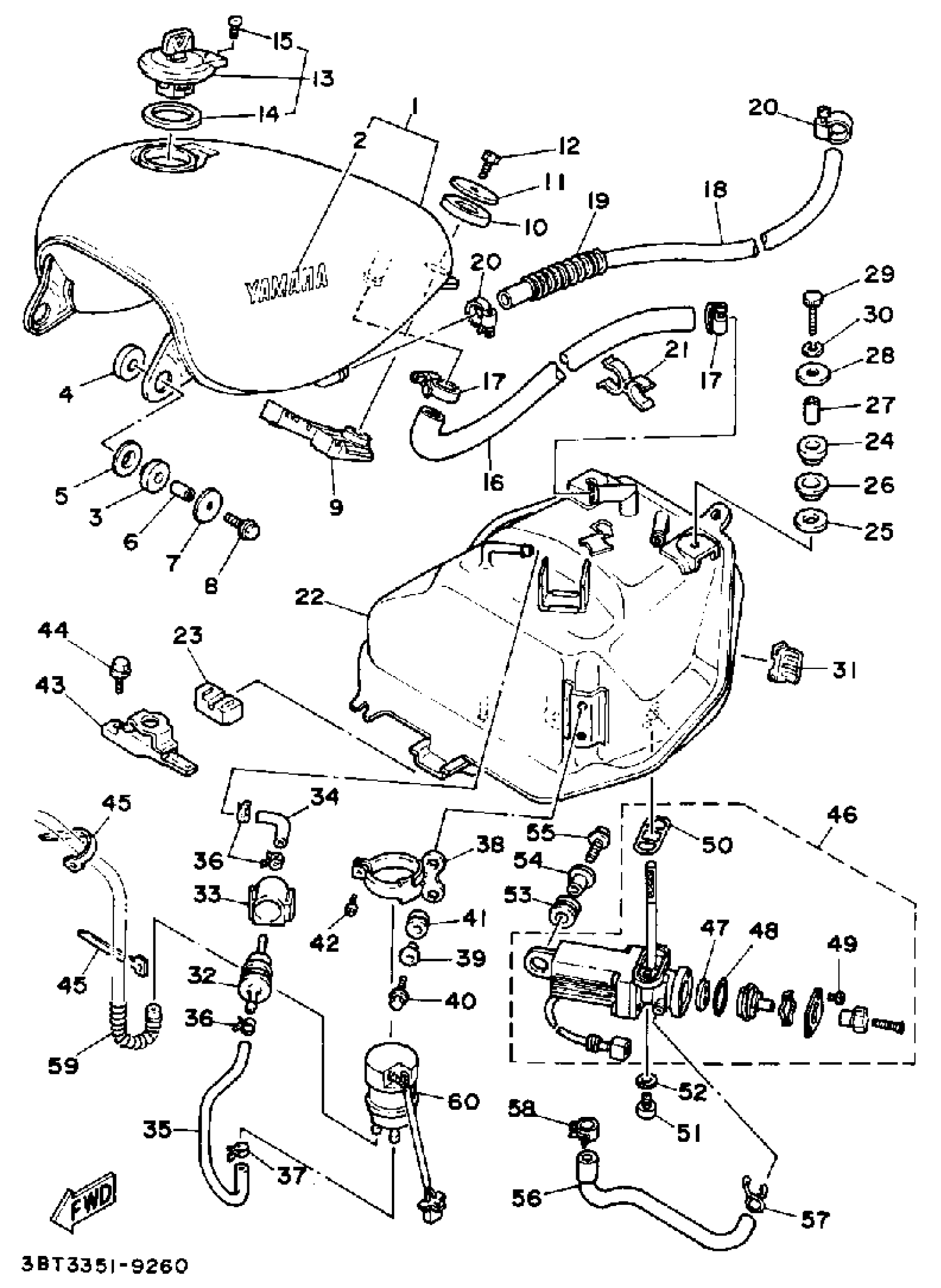

Yamaha XV535AC (VIRAGO 535 CA) 1990 FUEL TANK NON CALIFORNIA MODEL Diagram

#

Description
Price

1

SUB-TANK ASSEMBLY

3BR-Y2428-10-RL

Unavailable

2

EMBLEM, YAMAHA

99245-00100-00

Unavailable

3

DAMPER, LOCATING 2

1FK-24182-00-00

Unavailable

4

DAMPER, SEAT

23T-24724-01-00

$6.99

5

WASHER, SPECIAL

1FK-24186-00-00

$5.49

6

COLLAR

90387-06387-00

Unavailable

7

WASHER, PLATE(3JB)

90201-066M2-00

$4.67

8

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

9

DAMPER, LOCATING 2

3JB-24182-00-00

Unavailable

10

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

11

WASHER, PLATE (521)

90201-08569-00

$7.49

12

BOLT, HEXAGON

97013-08016-00

$1.01

13

CAP ASSY

4X7-24602-10-00

$127.99

14

GASKET, TANK CAP

4X7-24612-00-00

$32.99

15

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

16

PIPE 6

3JB-24316-00-00

Unavailable

17

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

18

PIPE 7

3JB-24317-00-00

Unavailable

19

SPRING,COMPRESSION

90501-101J4-00

Unavailable

20

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

21

CLAMP 1

3JB-24135-00-00

Unavailable

22

FUEL TANK COMP.

3JB-24110-01-33

Unavailable

23

DAMPER, LOCATING 1

2GV-24181-00-00

Unavailable

24

DAMPER, LOCATING 2

1FK-24182-00-00

Unavailable

25

DAMPER, SEAT

23T-24724-01-00

$6.99

26

WASHER, SPECIAL

1FK-24186-00-00

$5.49

27

COLLAR

90387-06387-00

Unavailable

28

WASHER (23T)

90201-065G8-00

Unavailable

29

BOLT, HEXAGON

97017-06030-00

Unavailable

30

WASHER, SPRING

92907-06100-00

Unavailable

31

DAMPER, LOCATING 4

2GV-24184-00-00

Unavailable

32

FILTER ASSY

1FK-24560-10-00

Unavailable

33

BRACKET, FILTER

1FK-24566-00-00

Unavailable

34

PIPE, FUEL 1

2GV-24311-00-00

Unavailable

35

PIPE 2

2GV-24312-00-00

Unavailable

36

CLIP (7K7)

90467-11044-00

Unavailable

37

CLIP(42X)

90467-10091-00

Unavailable

38

BRACKET, FUEL PUMP

2GV-24491-00-00

Unavailable

39

COLLAR(42G)

90387-062L2-00

Unavailable

40

BOLT, FLANGE

95817-06016-00

Unavailable

41

GROMMET (1E5)

90480-13163-00

Unavailable

42

SCREW, PAN HEAD

90157-05M19-00

Unavailable

43

BRACKET, FUEL TANK 1

2GV-24191-00-00

Unavailable

44

BOLT, WITH WASHER(1JK)

90119-06123-00

Unavailable

45

BAND, SWITCH CORD

437-83936-11-00

Unavailable

46

FUEL COCK ASSY 1

3JB-24500-03-00

Unavailable

47

VALVE PACKING

3AC-24523-00-00

Unavailable

48

SEAL, COCK

3AJ-24534-01-00

Unavailable

49

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

50

O-RING

4X8-24512-00-00

Unavailable

51

SCREW 366241430000

90149-06008-00

Unavailable

52

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

53

GROMMET 839774310000

90480-14023-00

Unavailable

54

COLLAR

90387-06158-00

Unavailable

55

BOLT, FLANGE

95817-06025-00

Unavailable

56

PIPE 4

3JB-24314-00-00

Unavailable

57

CLIP

90467-100A1-00

Unavailable

58

CLIP (7K7)

90467-11044-00

Unavailable

59

SPRING,COMPRESSION

90501-100F8-00

Unavailable

60

FUEL PUMP COMP.

1HX-13907-01-00

Unavailable
