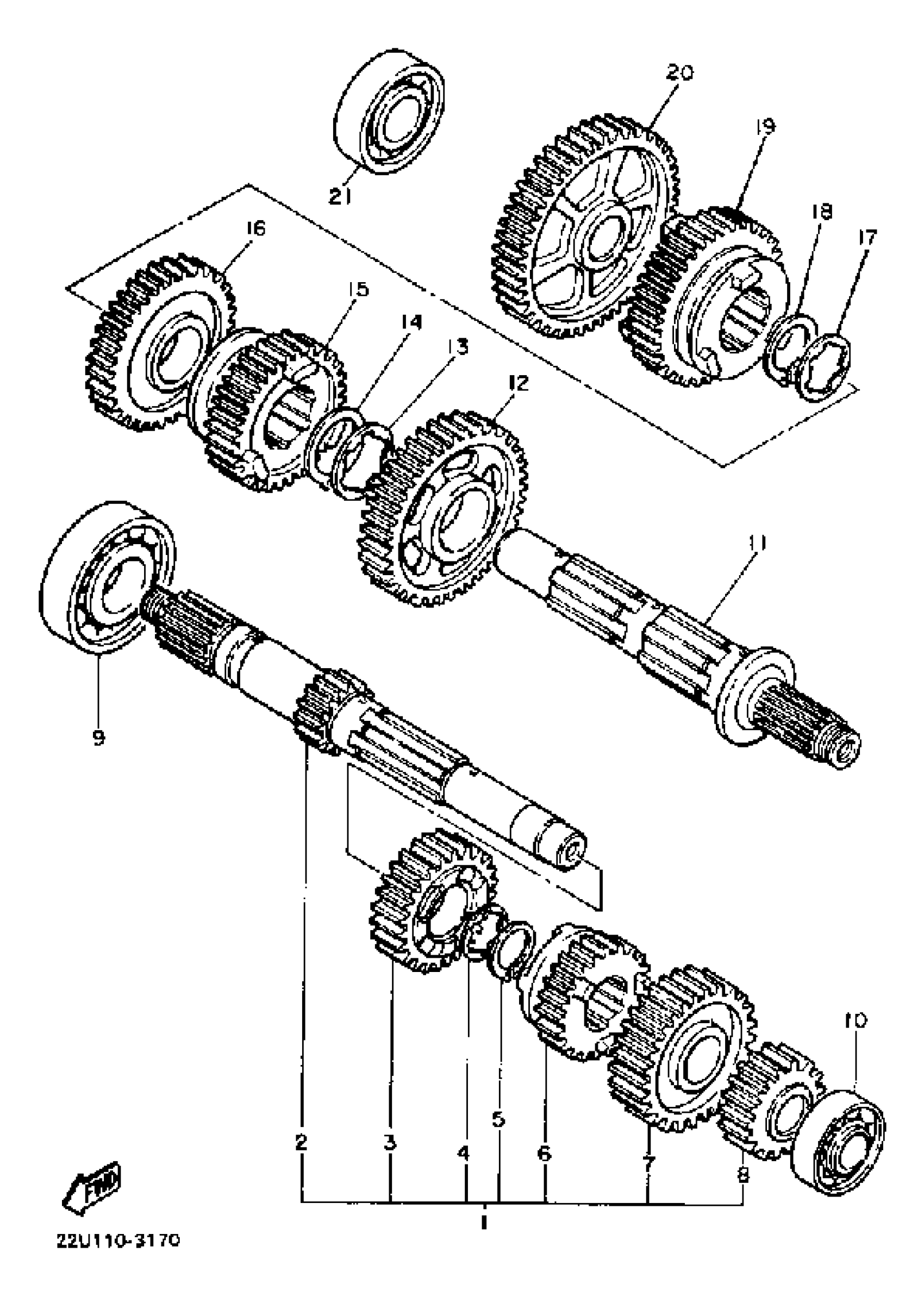

Yamaha XV500K (XV500K) 1983 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

(22U-17410-00-00)

Unavailable

2

AXLE,MAIN

99999-03117-00

Unavailable

3

GEAR, 4TH PINION

22U-17141-00-00

Unavailable

4

WASHER (3J3)

90209-22191-00

$7.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

22U-17131-00-00

Unavailable

7

GEAR, 5TH PINION

4VR-17151-01-00

Unavailable

8

GEAR, 2ND PINION (20T)

4KU-17121-00-00

Unavailable

9

BEARING (3Y1)

93306-30525-00

$63.99

10

BEARING (5Y1)

93306-00426-00

$42.99

11

DRIVE AXLE ASSY

22U-17402-00-00

$83.99

12

GEAR, 2ND WHEEL (38T)

4KU-17221-00-00

$89.99

13

WASHER (3J3)

90209-27192-00

$8.49

14

CIRCLIP (3J3)

93440-30077-00

$10.49

15

GEAR, 5TH WHEEL

4VR-17251-01-00

Unavailable

16

GEAR, 3RD WHEEL (35T)

4KU-17231-00-00

Unavailable

17

WASHER (3J3)

90209-22191-00

$7.49

18

CIRCLIP (4L0)

93440-25084-00

$5.60

19

GEAR, 4TH WHEEL

22U-17241-00-00

Unavailable

20

GEAR, 1ST WHEEL

22U-17211-00-00

Unavailable

21

BEARING (17L)

93306-00427-00

Unavailable
