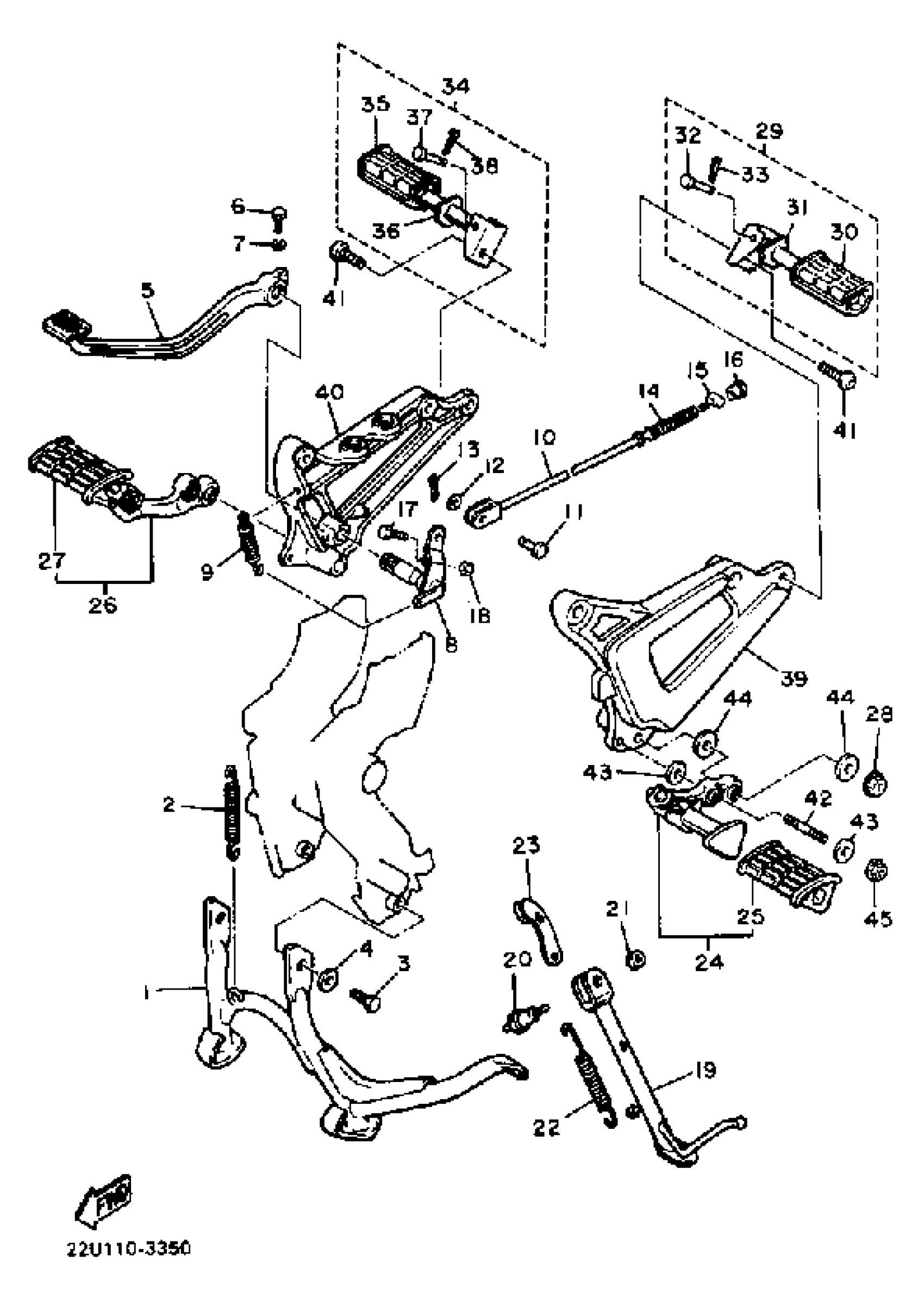

Yamaha XV500K (XV500K) 1983 STAND FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

22U-27111-00-R4

Unavailable

2

SPRING, TENSION (1T5)

90506-35149-00

$17.99

3

BOLT,HEXAGON

97017-10016-00

Unavailable

4

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

5

PEDAL, BRAKE

22U-27211-01-93

Unavailable

6

BOLT (1J7)

90109-06468-00

$7.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

SHAFT, BRAKE PEDAL

22U-27212-00-00

Unavailable

9

SPRING, TENSION

(90506-26134-00)

Unavailable

10

ROD, BRAKE

22U-27231-00-00

Unavailable

11

PIN, CLEVIS (24X)

90240-06103-00

$7.49

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

PIN, COTTER

91490-20025-00

$1.99

14

SPRING, (180-27236-00)

90501-10245-00

$8.49

15

PIN 1562723700

90249-12008-00

$8.49

16

NUT (25K)

90179-06411-00

Unavailable

17

BOLT(3DM)

97024-06020-00

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

19

STAND,SIDE

99999-03064-00

Unavailable

20

BOLT(2GH)

90109-104E6-00

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

23

LINK, SIDE STAND

5H0-27315-00-00

Unavailable

24

FRT FOOTREST ASSEMBLY L

22U-27410-02-93

Unavailable

25

COVER, FOOTREST

4X7-27413-00-00

Unavailable

26

FRT FOOTREST ASSEMBLY R

22U-27420-02-93

Unavailable

27

COVER, FOOTREST

4X7-27413-00-00

Unavailable

28

NUT(3EF)

90179-12657-00

Unavailable

29

RR FOOTREST ASSEMBLY 1

10M-27430-00-00

Unavailable

30

. COVER, REAR FOOTREST

3H5-27433-00-00

Unavailable

31

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

32

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

33

PIN, COTTER

91490-20025-00

$1.99

34

RR FOOTREST ASSEMBLY 2

10M-27440-00-00

Unavailable

35

. COVER, REAR FOOTREST

3H5-27444-00-00

Unavailable

36

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

37

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

38

PIN, COTTER

91490-20025-00

$1.99

39

BRACKET 2

22U-27442-00-00

Unavailable

40

BRACKET 3

22U-27443-00-00

Unavailable

41

SCREW, PAN HEAD (22U)

90157-10043-00

Unavailable

42

BOLT, STUD

(95611-10635-00)

Unavailable

43

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

44

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

45

NUT (22F)

90179-10394-00

Unavailable
