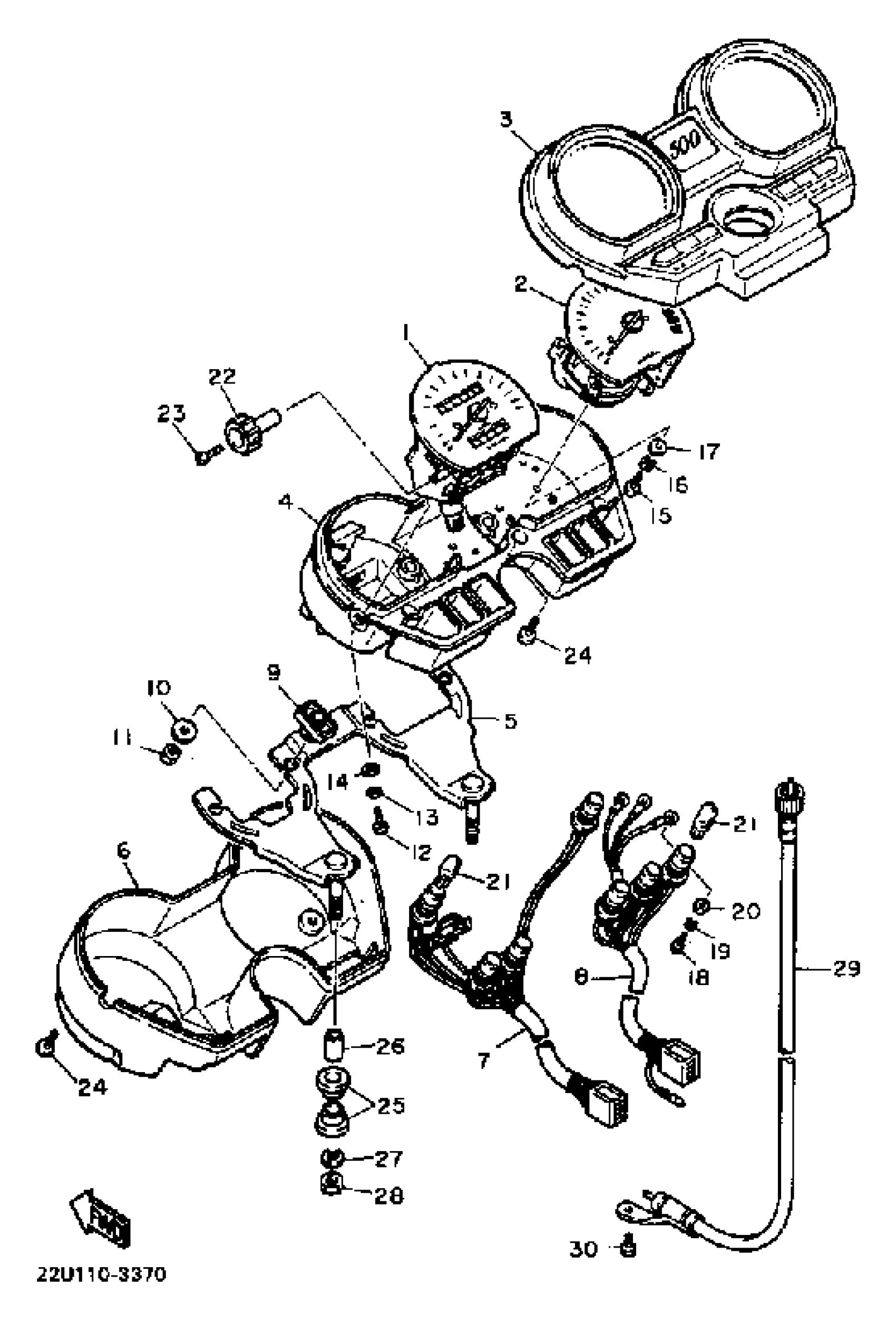

Yamaha XV500K (XV500K) 1983 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

22U-83570-A0-00

Unavailable

2

TACHOMETER ASSEMBLY

26R-83540-00-00

Unavailable

3

COVER, METER

22U-83559-A0-00

Unavailable

4

CASE, INNER

22U-8353H-00-00

Unavailable

5

BRACKET, METER

22U-83519-00-00

Unavailable

6

COVER, METER 2

22U-83579-00-00

Unavailable

7

SOCKET, METER

22U-83536-00-00

Unavailable

8

SOCKET CORD ASSEMBLY

22U-83520-00-00

Unavailable

9

DAMPER

1FG-83523-00-00

Unavailable

10

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

11

NUT, HEXAGON (663)

95380-05600-00

$8.49

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

SCREW, PAN HEAD

98511-04012-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

17

WASHER, PLAIN (646)

92990-04600-00

$5.99

18

SCREW, PAN HEAD

(98502-03012-00)

Unavailable

19

WASHER, SPRING

92990-03100-00

Unavailable

20

WASHER(3SX)

92907-03600-00

Unavailable

21

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

22

KNOB, TRIP METER

1AE-83578-00-00

Unavailable

23

SCREW, PAN HEAD (11H)

90157-02031-00

Unavailable

24

. SCREW, TAPPING

90167-03058-00

Unavailable

25

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

26

COLLAR (877)

90387-06249-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

NUT, HEXAGON

95380-06600-00

Unavailable

29

SPEEDOMETER CABLE

10M-83550-00-00

Unavailable

30

SCREW, HEXAGON

90153-06004-00

Unavailable
