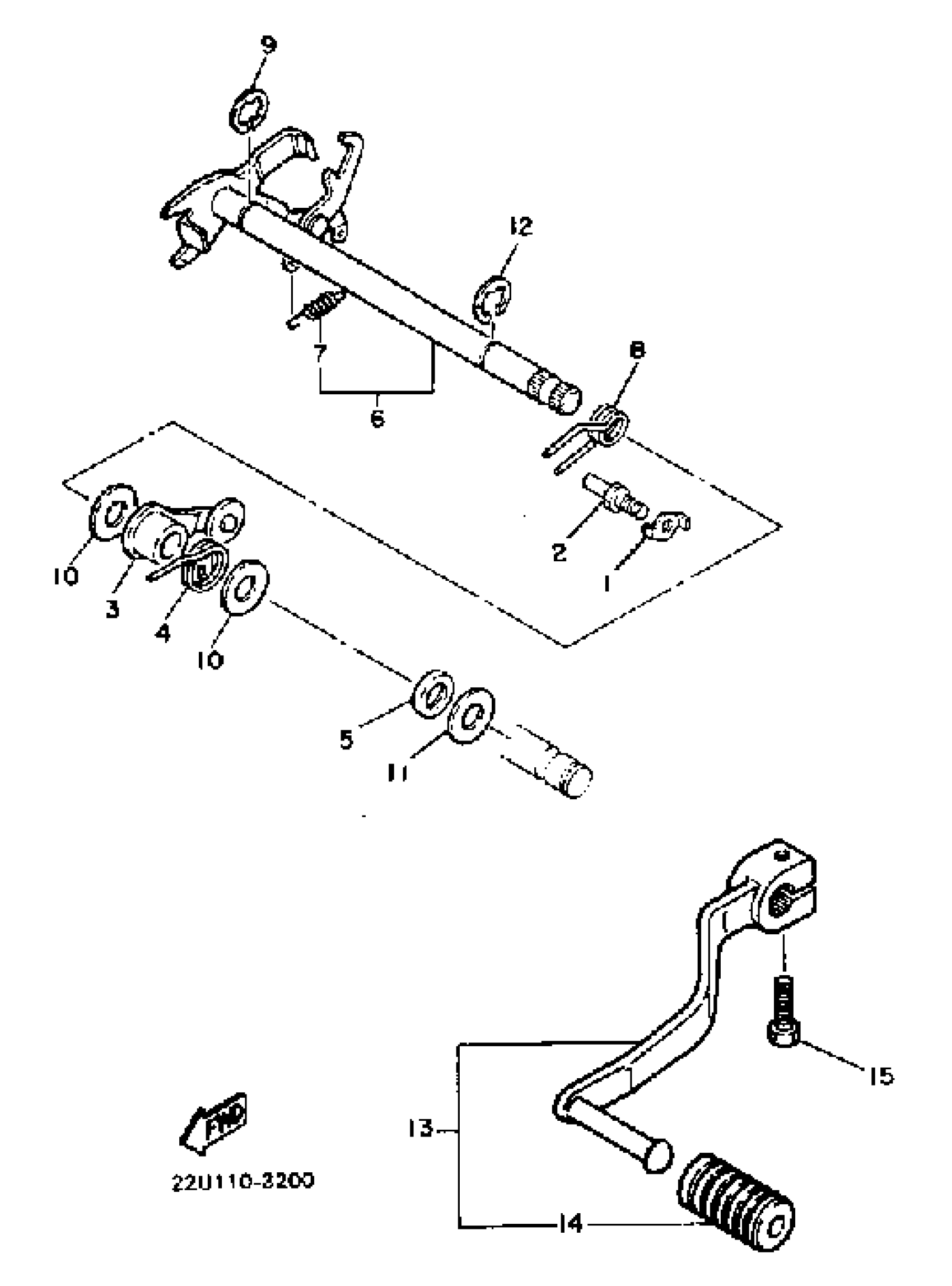

Yamaha XV500K (XV500K) 1983 SHIFT SHAFT PEDAL Diagram

#

Description
Price

1

WASHER, LOCK (4G0)

90215-18178-00

Unavailable

2

STOPPER, SCREW

5VK-18127-00-00

Unavailable

3

STOPPER LEVER ASSEMBLY

11H-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29519-00

Unavailable

5

SEAL, OIL (30X)

93102-12321-00

$12.49

6

SHIFT LEVER ASY

22U-18120-02-00

Unavailable

7

SPRING, TENSION (4H7)

90506-08227-00

$4.19

8

SPRING, TORSION (11H)

90508-32536-00

$11.49

9

CIRCLIP

99006-10600-00

$9.49

10

WASHER

90201-12588-00

$7.49

11

WASHER, PLATE (353)

90201-12575-00

$8.49

12

CIRCLIP

99006-10600-00

$9.49

13

SHIFT PEDAL ASSEMBLY

22U-18110-00-00

Unavailable

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

BOLT, HEXAGON

97017-06020-00

$4.06
