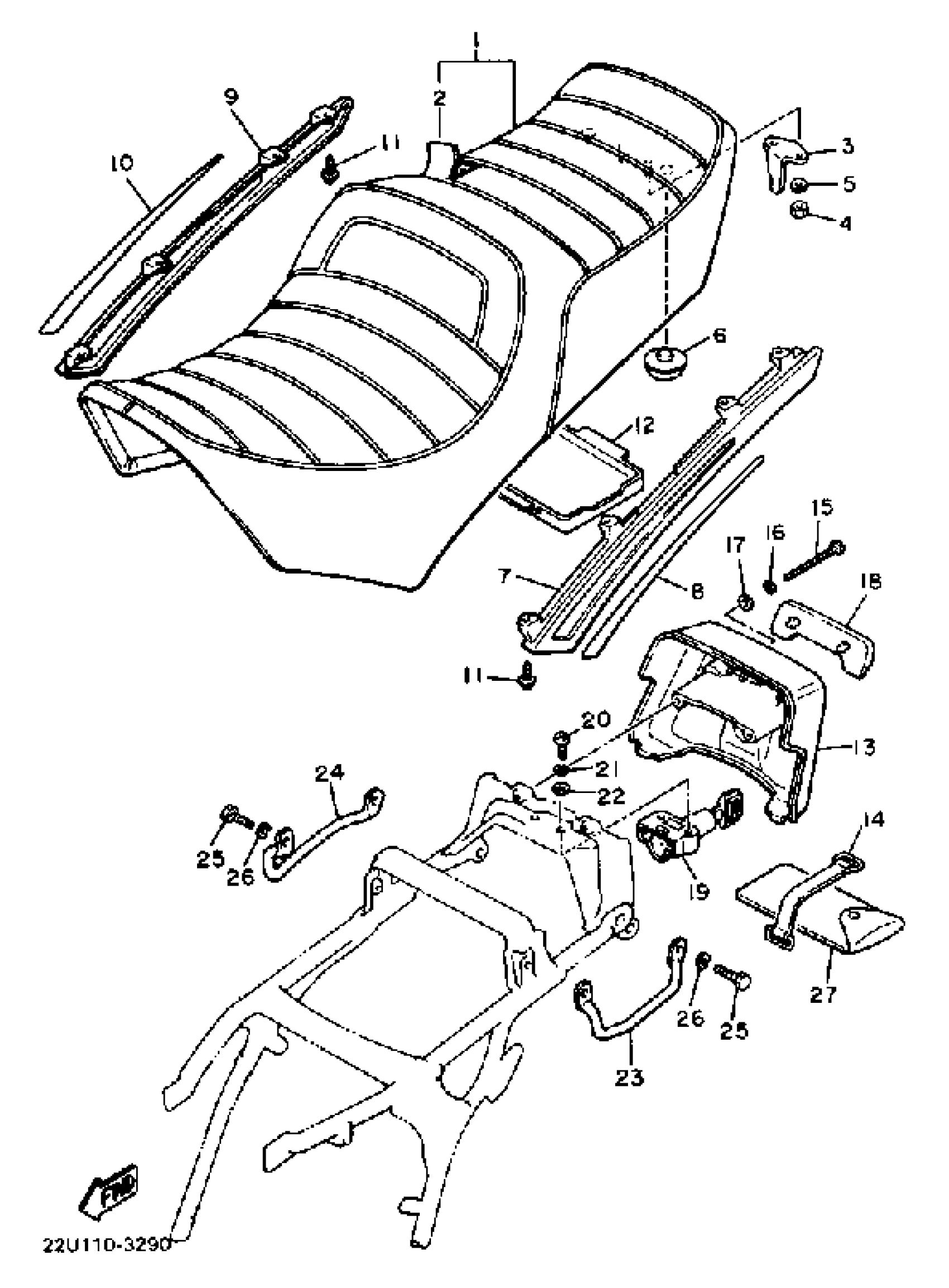

Yamaha XV500K (XV500K) 1983 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

26M-W2472-00-00

Unavailable

2

. COVER, DOUBLE SEAT

22U-24731-00-00

Unavailable

3

BRACKET, SEAT

22U-24728-00-00

Unavailable

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

PAD, SEAT

22W-24741-00-00

$8.99

7

MOLD, SEAT

(22U-24785-01-00)

Unavailable

8

GRAPHIC, TAIL COVER

22U-24757-00-00

Unavailable

9

MOLD 2

22U-2478K-01-00

Unavailable

10

GRAPHIC, TAIL COVER

22U-24767-00-00

Unavailable

11

SCREW, TAPPING

(90167-05012-00)

Unavailable

12

LID

395-28185-00-00

Unavailable

13

BOX 1

22U-2473R-00-00

Unavailable

14

BAND, BATTERY

26L-82131-00-00

$7.99

15

SCREW, BIND (JH1)

98580-06560-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLATE

90201-06M08-00

Unavailable

18

EMBLEM

22U-24786-00-00

Unavailable

19

SEAT LOCK ASSEMBLY

22U-24705-00-00

Unavailable

20

SCREW, PAN

98517-06012-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

WASHER(6TA)

92907-06600-00

Unavailable

23

HANDLE, STANDING

(22U-21165-00-00)

Unavailable

24

STAY, REAR

(22U-21275-00-00)

Unavailable

25

BOLT, HEXAGON

97017-08020-00

Unavailable

26

WASHER(JN5)

92907-08100-00

Unavailable

27

TOOL KIT

5A8-W2810-01-00

Unavailable
