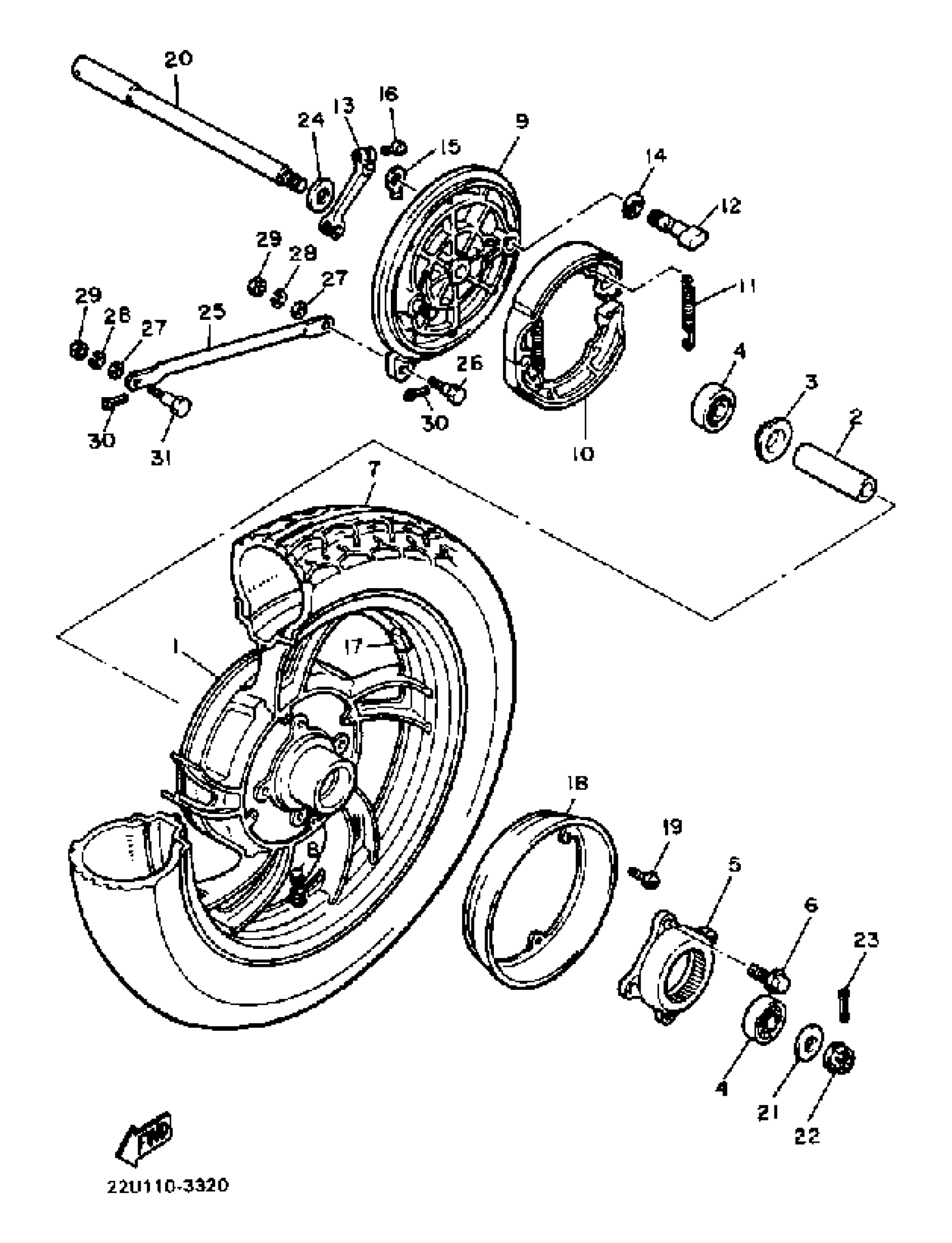

Yamaha XV500K (XV500K) 1983 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(22U-25338-21-98)

Unavailable

2

SPACER, BEARING

90560-15317-00

Unavailable

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

CLUTCH, HUB

22U-25366-00-00

Unavailable

6

BOLT, FLANGE

90105-10225-00

$9.49

7

130/90-16 G508 TL

94113-164M6-00

Unavailable

8

VALVE, RIM (31A)

93900-00031-00

$16.99

8

VALVE, RIM (31A)

93900-00031-00

$16.99

9

PLATE, BRAKE SHOE

(22U-25321-01-00)

Unavailable

10

BRAKE SHOE KIT

3LT-W253E-00-00

Unavailable

11

SPRING, TENSION 2462533300

90507-20002-00

$8.49

12

CAMSHAFT

4H7-25351-00-00

Unavailable

13

LEVER, CAMSHAFT

371-25355-02-00

Unavailable

14

WASHER, PLATE (3X3)

90201-15797-00

$9.49

15

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable

16

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

17

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

17

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

17

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

18

COVER, PLATE

22U-25327-00-00

Unavailable

19

SCREW, WITH WASHER (1T4/2F3)

90159-05018-00

Unavailable

20

AXLE, WHEEL

22U-25381-00-00

Unavailable

21

WASHER, PLATE

90201-14022-00

Unavailable

22

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable

24

COLLAR, WHEEL

22U-25377-00-00

Unavailable

25

BAR, TENSION

4X7-25371-00-00

Unavailable

26

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

. NUT

95380-08700-00

Unavailable

30

PIN, COTTER

91490-20025-00

Unavailable

31

BOLT (183-25378-00)

90109-08368-00

Unavailable
