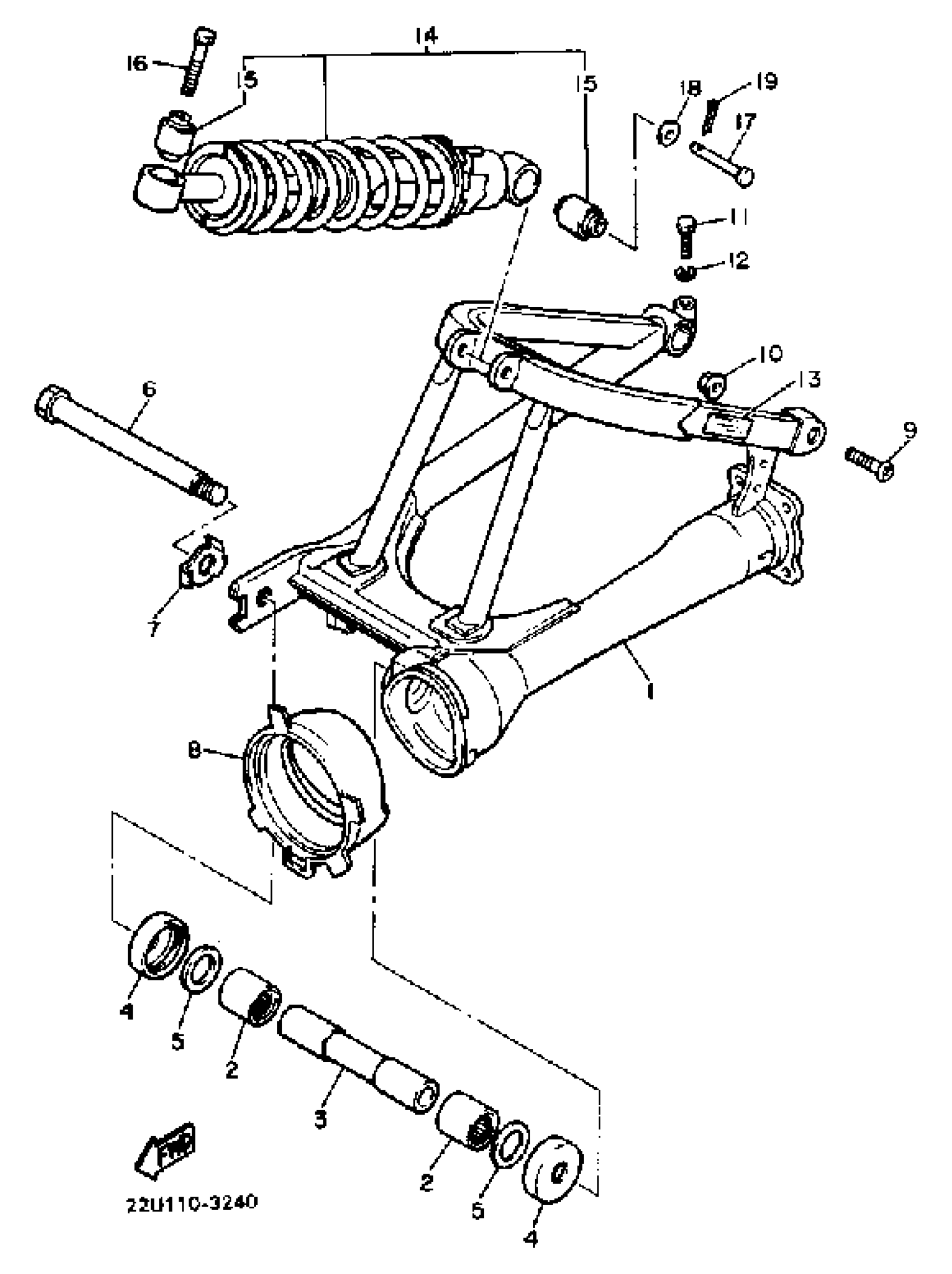

Yamaha XV500K (XV500K) 1983 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM

22U-22110-00-35

Unavailable

2

BEARING (4X7)

93320-32403-00

$46.99

3

BUSH 2

4X7-22124-00-00

$75.99

4

COVER, THRUST 2

4X7-22129-00-00

$22.99

5

WASHER

3YF-22149-00-00

$8.99

5

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

5

WASHER, PLATE

90201-245A0-00

Unavailable

6

SHAFT, PIVOT

4X7-22141-00-00

Unavailable

7

WASHER, LOCK

90215-16181-00

Unavailable

8

BOOT, RUBBER

22U-22189-00-00

Unavailable

9

SCREW, PAN HEAD (22U)

90157-10043-00

$5.60

10

NUT(4KG)

90179-10658-00

$9.49

11

BOLT

97013-08035-00

$5.60

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable

14

UNAVAILABLE IN PRICE BOOK

22U-22100-00-0

Unavailable

15

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

16

BOLT (4X7)

90101-12498-00

Unavailable

17

PIN, CLEVIS

90240-12091-00

Unavailable

18

WASHER, SPEC''L SHAP

(90209-13247-00)

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable
